Programmable Three Phase Digital Protection Relay Motor Thermal Overload Protector for Pumps

KPM60 Programmable three phase digital protection relay motor thermal overload protector for pumps

Product  Model

Example :KPM60-100A-C-VL-R: low-voltage motor protection controller with Rated current 100A RS485 communication, voltage protection, leakage protection and undervoltage start function.

Remarks: For 380V motor rated power and controller selection

Function Feature

♥Protection functions: overload protection, blocking protection, blocking protection, external fault protection, current imbalance protection, starting overtime protection, grounding protection, phase failure protection, contactor breaking protection, underload protection;

♥Start mode: protection mode, direct start mode, bidirectional reversible start, star / delta start, autotransformer start;
♥Monitoring functions: 3 phase current, A phase voltage, active power, reactive power, power factor, frequency, active energy, work energy, grounding current, leakage current, 4 ~ 20mA analog input, heat capacity;
♥Optional protection: leakage protection, TE protection, temperature protection, analog input protection, overvoltage protection, undervoltage protection, under power protection, undervoltage restart;
♥Special features: analog input, digital input, relay output
♥Display: large-screen LCD display, high quality, wide viewing angle, high visibility;
♥Communication: RS485 communication, Modbus-RTU;
♥Applicable motor: Motor rated voltage: 380V ~ 660V, rated power 0.25 ~ 250kW

Click Here to stard order

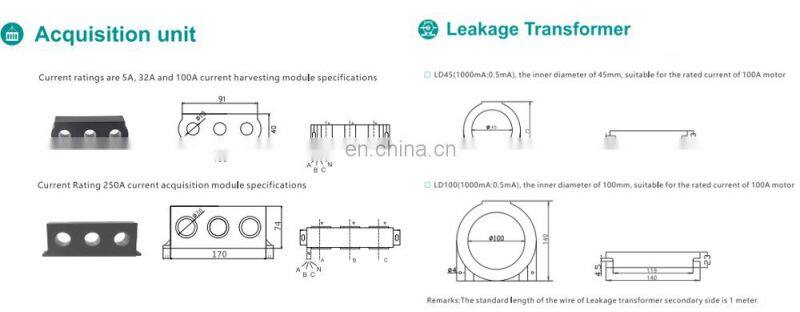

Accessories

Product Size

Click here get this product

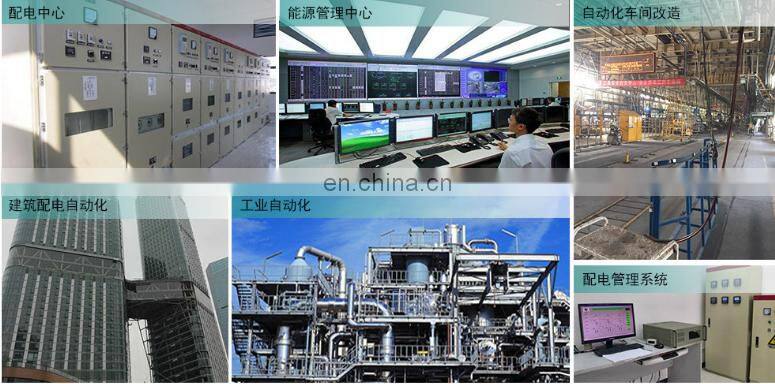

Application

Packaging Details:

standard paper box, one piece in one box, 8 pieces in one carton

Delivery Time:

Shipped in 3 days after payment

♣1.Experienced manufacturer more than 10 years.

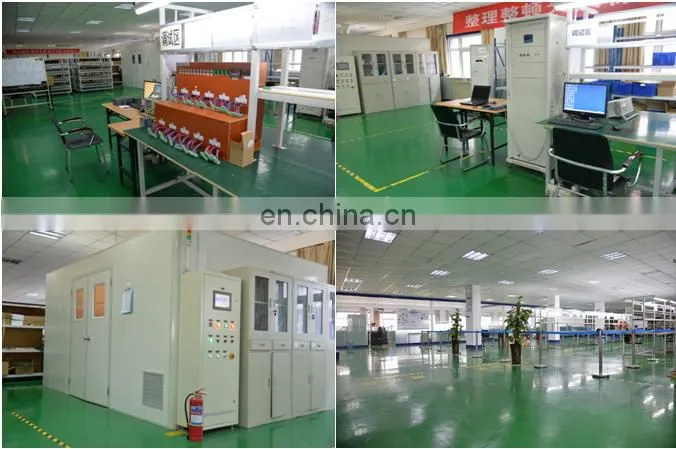

♣2.Highly experienced production team in Compere factory work-shop.
♣3.QC System:Quality controlled on all production lines,and QC inspectors work independently from the production line.
♣4.Good quality production with quick delivery.
♣5.Accepted OEM/ODM.
♣6.Accepted small MOQ.
♣7.Trade Assurance on Alibaba.
♣8.Factory certification:CE,RoHS and ISO9001.

Henan compere smart technology Co., Ltd. is a high-tech enterprises that commitments  to energy management systems,intelligent electrical products and power quality control program development,production and sales.It is one of management & services institution of national power demand side,Compere has own professional embedded Product development team,excellent mobile Internet software development team and marketing services network.

Compere makes the "customer-oritened" as its service philosophy,"distribution interconnection,green energy efficiency" as its mission,adhere to the "integrity,focus, efficiency,innovation and win-win" as the core values,to serves every customer.With advanced management concepts and product technology to help customers grow,making every city,every building, every industrial and mining enterprises benefit from the smart electrical products.

Certifications

1. Can I ask for samples?

    Yes,for sample orders,please contact us freely.

2. Where can I get a user manual?

    User manual can be downloaded from our official website: .

3. What's the warranty of your products?

    12 months.

4. What's the lead time?

    Depend on the quantity and model of the order,normally it takes around 10-15 days,but the exact lead time should be discussed with our sales.

5. Do you have software?

    We offer simple software for testing.

6. Can you offer Modbus protocol instruction/modbus register map?

    Yes,we have and welcome contact us.
