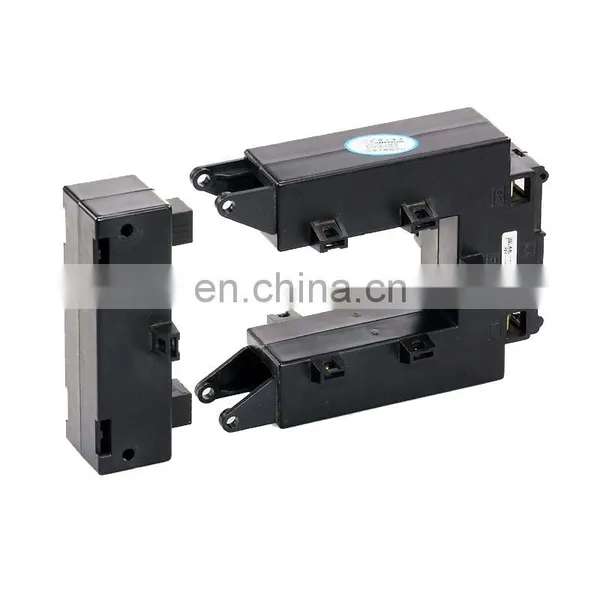

Split Core CT 2500/5A Ratio Instrument Current Transformer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1993
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Split CT 100A/5A AC Three Phase Toroidal Indoor Split-Core E-meter Current TransformerNegotiableMOQ: 1 -
100/5A Clamp CT Flexible High Precision Current Transformers Split Core Current SensorNegotiableMOQ: 1
-
Compere Integrated Programmable Electronic Protector Electrical Digital Motor Start Potential RelayNegotiableMOQ: 1
-
KPM83MD LCD Display Digital Transformer Protection Relay Used for Control of Asynchronous Motors of Ungrounded SystemNegotiableMOQ: 1
-
China Big Factory Good Price Current Transformer 100a 4-20ma Wireless for IndustrialNegotiableMOQ: 1
5A~4000A split core current transformer for electric meter loading monitoring
Split core current transformer:
1. Fastened double screws, safe, easy to install and easy to carry.
2. Two built-in fixing methods: basic; busbar mounting
3. Wide inner window for large cable or busbar clamping.
4. The range of sizes is wide to accommodate all existing devices.
5. The primary current is from 5A to 5000A.
1. Fastened double screws, safe, easy to install and easy to carry.
2. Two built-in fixing methods: basic; busbar mounting
3. Wide inner window for large cable or busbar clamping.
4. The range of sizes is wide to accommodate all existing devices.
5. The primary current is from 5A to 5000A.
Electrical Parameters |
Mechanical parameters |
||||
Frequency |
50-400Hz |
Shell |
PC/UL94-V0 |
||
Rated input |
5A-5000A |
Framework |
PBT |
||
Measuring range |
10%In-120%In |
Iron core |
Silicon steel |
||
Rated output |
0-5A |
Inner frame |
Winding |
||
Ratio difference |
≤ ± 0.5% |
Installation |
Open mounting |
||
Angle difference |
≤ ±30min |
Working temperature |
-25~+75℃ |
||
Dielectric strength |
2.5KV/1mA/1min |
Storage humidity |
≤50% |
||
Insulation resistance |
DC500V/100MΩ min |
Output wiring |
Terminal |
||
