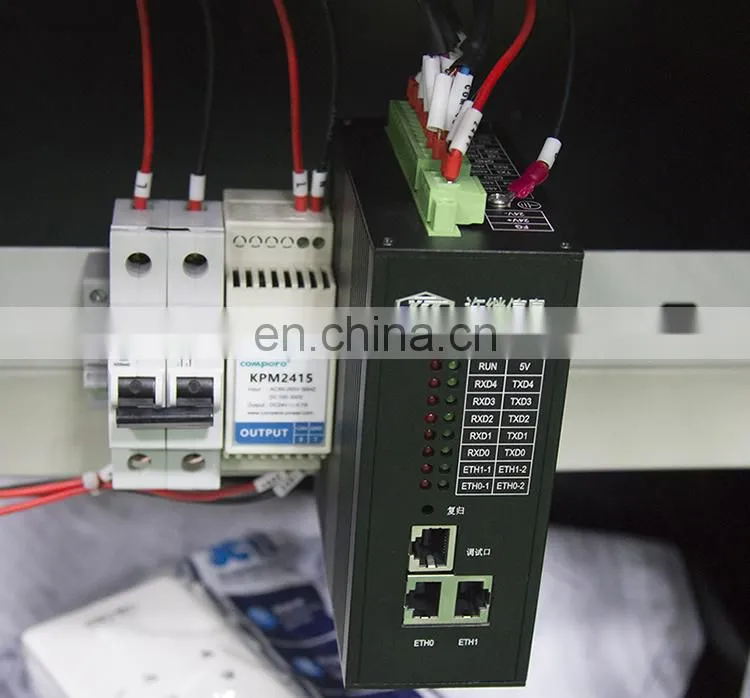

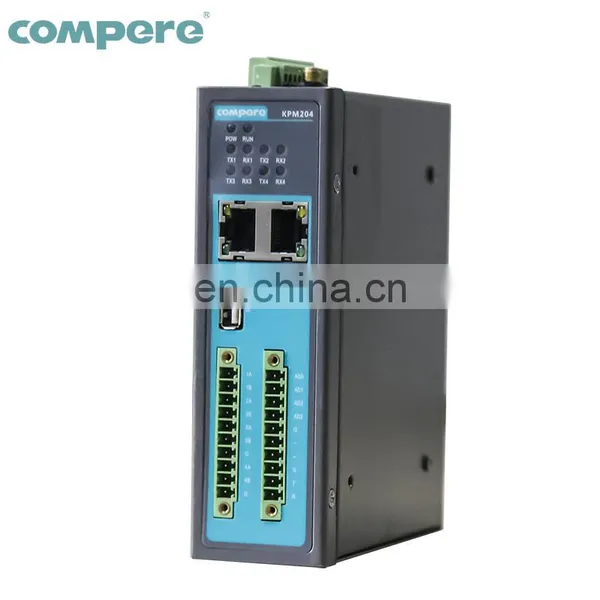

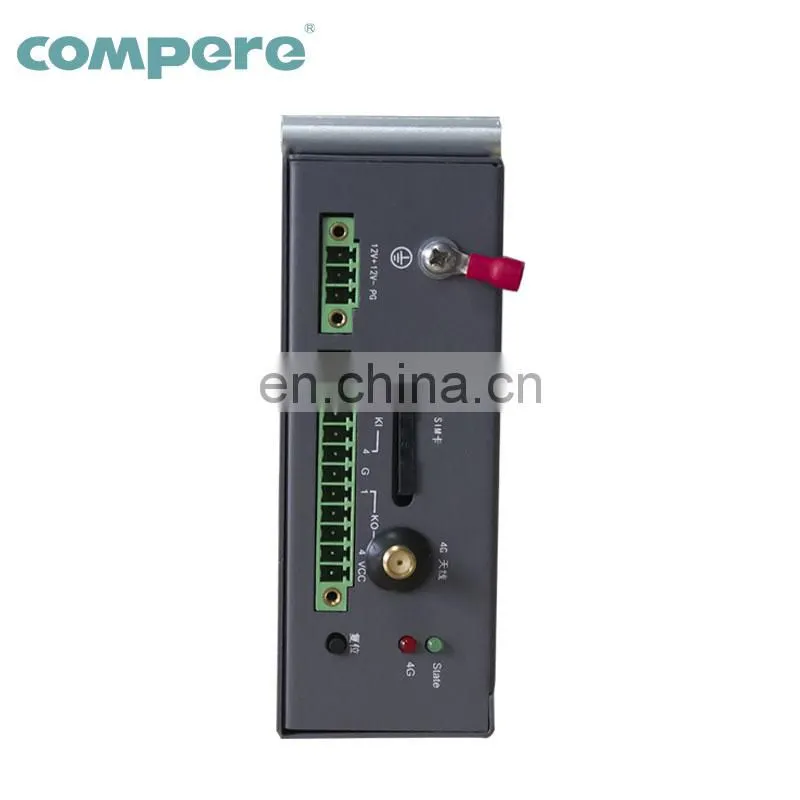

KPM204 Communication gateway

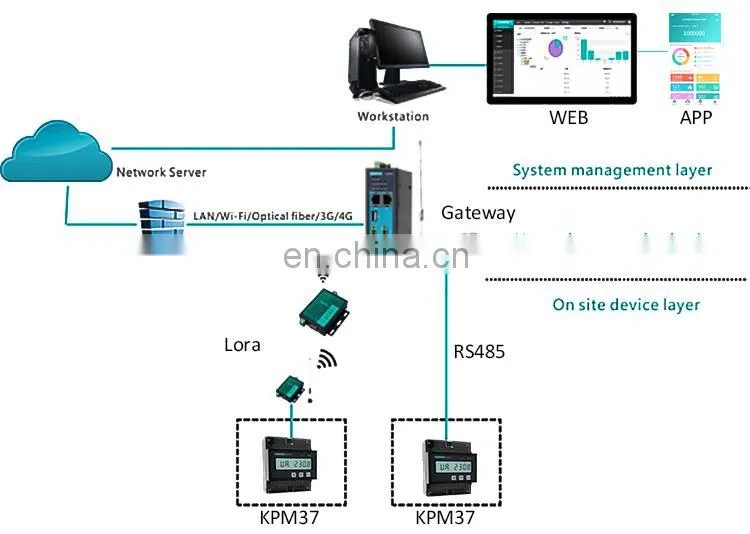

KPM200 series communication management machine is an important part of the intelligent distribution automation system to complete the power distribution room microcomputer protection,automatic devices,monitoring and other intelligent devices and computer systems,power grid automation system to achieve the exchange of information between the far station information to the host Exchange and network exchange,thus forming a fully decentralized RTU communication system.
|
|
|
|

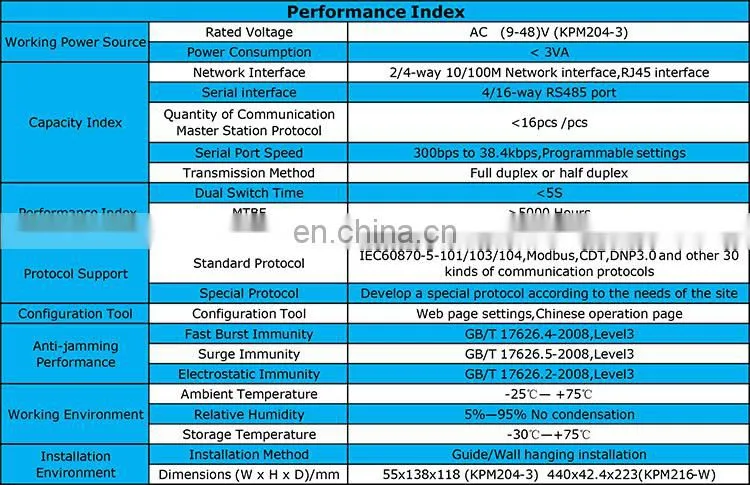

Function Features
1.Industrial grade Contex-A8 processor,800MHz frequency.
2.512MB DDR3 SDRAM,512Mflash.
3.Support 2/4-way high-speed 10/100M independent network interface.
4.Support 4/16-way RS485 serial communication interface.
5.Built-in real-time clock (RTC),temperature sensor and independent hardware encryption circuit to protect user IP.
6.Built-rich communication protocol library to support the electricity IEC60870-101/103/104 protocol,support ProfiNET,EtherNet,BACnet,SNPx and other communication protocols.
9.Built-in WEB server,support for remote development,configuration,commissioning and maintenance.
10.Achieve communication management,data gateway,data forwarding,protocol conversion,pre-processing and other functions.
11.CAN interface bidirectional optical isolation CAN2.0 interface standard.
12.Support all the way debug serial port,as well as WIFI wireless LAN/GPRS/3G/4G remote communications and other extensions.
13.Expandable 4-128G TF memory card.
14.Rugged metal shell and internal circuit "three defenses" treatment,especially for the harsh environment on site.
Henan compere smart technology Co., Ltd. is a high-tech enterprises that commitments to energy management systems,intelligent electrical products and power quality control program development,production and sales.It is one of management & services institution of national power demand side,Compere has own professional embedded Product development team,excellent mobile Internet software development team and marketing services network.
Products passed the ISO9001 quality system certification,China CCC mandatory product certificationdepends on strong technical strength,advanced intelligent electrical components production equipments,advanced process technology equipments and advanced testing equipment.It insisted on the independent research and development,and it actively to establish long-term strategic cooperative relations with some world famous universit,they obtained a number of scientific technological achievements,a number of software copyrights and product patents. High quality,honesty,great service had led the company to became the leader of the electrical industry.
Compere makes the "customer-oritened" as its service philosophy,"distribution interconnection,green energy efficiency" as its mission,adhere to the "integrity,focus, efficiency,innovation and win-win" as the core values,to serves every customer.With advanced management concepts and product technology to help customers grow,making every city,every building,every industrial and mining enterprises benefit from the smart electrical products.
1.Experienced manufacturer more than 10 years.
2.Highly experienced production team in Compere factory work-shop.
3.QC System:Quality controlled on all production lines,and QC inspectors work independently from the production line.
4.Good quality production with quick delivery.
5.Accepted OEM/ODM.
6.Accepted small MOQ.
7.Trade Assurance on Alibaba.
8.Factory certification:CE,RoHS and ISO9001.
