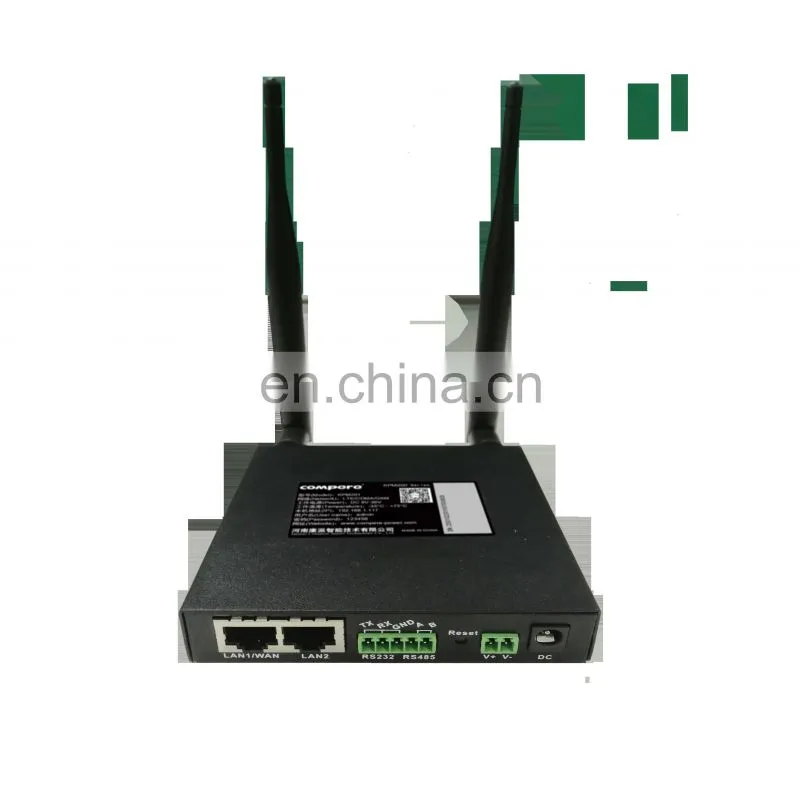

This Panel DIN rail smart meter reading modbus wifi DTU industrial rs232 to wifi converter is used for gateway comminucation and wiring.
industrial modbus rtu wifi gateway for energy meter is an important part of the intelligent distribution automation system to complete the power distribution room microcomputer protection,automatic devices,monitoring and other intelligent devices and computer systems,power grid automation system to achieve the exchange of information between the far station information to the host Exchange and network exchange,thus forming a fully decentralized RTU communication system.
KPM201 communication gateway adopts OpenWrt routing system design in embedded linux system, provides 1 RS458 and 1 RS232 communication.
2 Ethernet ports, supports wireless 4G and WiFi communication, supports multiple communication methods and different communications Protocol.
The gateway has indicator lights to provide users with direct observation, supports efficient completion of large-scale device network deployment, supports rail and desktop installation. It is fully industrialized for harsh conditions.
Low power consumption, high performance, easy installation, etc., suitable for communication network concentrators, industrial control, gateway routing and other occasions.
|
|
Features of industrial modbus rtu wifi gateway
- Support 4G LTE CAT4 high-speed network
- Support WLAN
- With 2 Ethernet ports
- Support multiple VPN functions
- Support wired and wireless mutual backup
- Support the efficient completion of large-scale equipment network deployment
- Support rail and desktop installation
WiFi 4G smart communication gateway application
| Function type | ||
| Working power | Rated voltage | DC 5~36V |
| Power consumption | <3VA | |
| Capacity index | LAN | 2* 10/100M RJ45 interface |
| Serial port | 1 * RS485 port +1 * RS232 | |
| Communication master station protocols | <16/pc | |
| Transmission mode | Full or half duplex | |
| Performance index | Dual machine switching time | <5s |
| MTBF | >50000h | |
| Status indication | Panel LED, reflecting the serial port data transmission and reception status | |
| Protocol | Downlink protocol | Modbus-RTU,Modbus-TCPIP,DLT645_1997,DLT645_2007 |
| Uplink protocol | IEC104Deliver , InSqlModbusSlave,ModbusSlaveST | |
| EMC | Fast pulse group immunity | IEC61000-4-5, level 3 |
| Surge immunity | IEC61000-4-2, level 3 | |
| Electrostatic immunity | IEC61000-4-4, level 3 | |
| Working environment | Ambient temperature | -25℃~+70℃ |
| Relative temperature | 5%~95%, no condation | |
| Storage temperature | -30℃~+75℃ | |
| Mounting size | Mounting type | Wall, DIN rail, panel mounted |
| Size L×W×H | 100mm×100mm×23mm, total 0.6kg |
|
|
|
| KPM 53 Smart power meter | KPM37 Smart DIN rail power meter |
