KPM201 Industrial WIFI 4G modbus gateway adopts OpenWrt routing system design in embedded linux system, with 1 RS458 and 1 RS232 port, 2 Ethernet ports, supports wireless 4G and WiFi communication. It supports multiple communication methods and protocols.
The gateway indicator lights is used to show its working status. It supports efficient completion of large-scale device network deployment, supports rail and desktop installation. It is fully industrialized and suitable for harsh conditions.
Low power consumption, high performance, easy installation, etc., suitable for communication network concentrators, industrial control, gateway routing and other occasions.

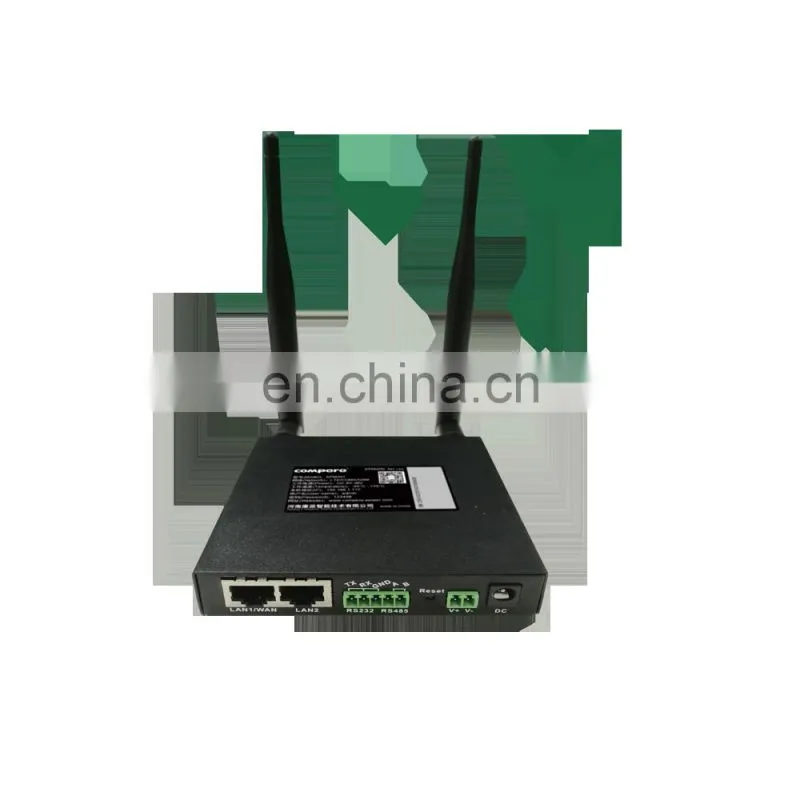

KPM201 Industrial WIFI 4G modbus gateway for smart meters
Function Features
1.Industrial grade processor.
2.Support 2 wire LAN port.
3.Support 1 RS485 serial communication interface.
4.Built-in real-time clock (RTC), and independent hardware encryption circuit to protect user IP.
5.Built-rich communication protocol library to support the electricity IEC60870-101/103/104 protocol,support customized communication protocols.
6.Built-in WEB server,support for remote development,configuration,commissioning and maintenance.
7.Achieve communication management,data gateway,data forwarding,protocol conversion,pre-processing and other functions.
8.Support debug serial port,as well as WIFI wireless LAN/GPRS/3G/4G remote communications and other extensions.
9.Expandable TF memory card.
10.Rugged metal shell and internal circuit "three defenses" treatment,especially for the harsh environment on site.
Technical Hardware specification
|
Hardware |
|
|
RAM |
64MB DDR2(Upto 128M / 256MB) |
|
FLASH |
16MB SPI FLASH(Upto 32MB) |
|
WIFI |
Optional,2.4G support 802.11b/g/n,max 150Mbps |
|
Network |
Industrial 4G module,Support 7-mode full Netcom |
|
System time |
Time synchronization adopts NTP technology with built-in RTC |
|

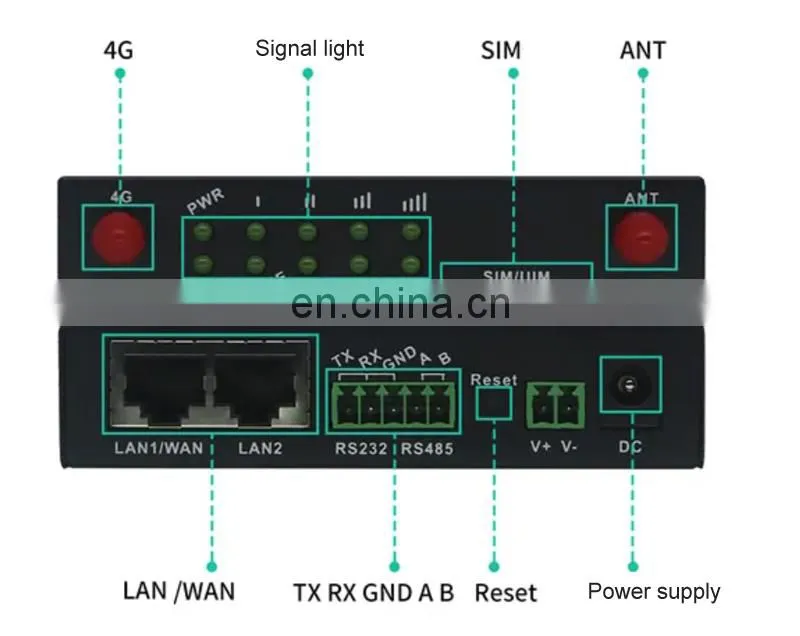

Hardware port |
|
|
WAN |
LAN1 can be set as 1 WAN port |
|
LAN |
2 *(10M/100M self-adjust MDI/MDIX port) |
|
SIM |
1(support 1.8V/3V SIM/UIM card) |
|
Reset |
1(reset button) |
|
Antenna interface |
1(3G/4G Antenna,impedance 50 Ω,SMA Female inner hole interface) |
|
1 (2.4G Antenna,impedance 50 Ω,SMA inner pin) |
|
|
Power supply terminal |
1(2 pins 3.81mm spacing connector ) |
|
Console |
1 (5 pins 3.5mm spacing connector,1 * RS232 / 1 * RS485) |
|
Indicator |
8 power and status indicators(Power,System,LAN1,LAN2,SIM,Online,WIFI,3G/4G) |
|
Power supply characteristics |
|
|
Power |
External power adapter(12V 1A) |
|
Work voltage |
DC 5~36V(Extendable 5-60V) |
|
Standby power consumption |
150~230 mA@12V DC |
|
Work cost |
250~310mA @12V DC |
|
Working conditions |
|
|
Operating temperature |
-35~+75ºC (-31~+167℉) |
|
storage temperature |
-40~+85ºC (-40~+185℉) |
|
Working humidity |
5%~95%( No condensation) |
|
Equipment ventilation |
Natural heat dissipation, no noise |
|
Physical characteristics |
|
|
Chassis |
Metal |
|
Dimensions |
L*W*H: 100mm * 100mm * 23mm (Excluding the installation parts of the antenna) |
|
Installation method |
Desktop flat, rail installation, wall-mounted |
|
weight |
G.W:0.6KG(With accessories and packing box) |
|
N.W:0.3KG(Not include antenna and mounting parts) |
|
|
Equipment safety and reliability |
|
|
Safety and reliability |
Power reverse protection, overvoltage protection, overcurrent protection; Ethernet interface built-in 1.5KV electromagnetic isolation protection; RS232/RS485 interface built-in 15KV ESD protection; SIM/UIM card interface built-in 15KV ESD protection. |
|
Protection level |
IP30 |
|
MTBF |
≥100,000 h |
|
|
|
|
| KPM202 GATEWAY | KPM204 GATEWAY | T@ENERGY EMS |
R&D Dept.
Production shop
Sales office
1.Experienced manufacturer more than 10 years.
2.Highly experienced production team in Compere factory work-shop.
3.QC System:Quality controlled on all production lines,and QC inspectors work independently from the production line.
4.Good quality production with quick delivery.
5.Accepted OEM/ODM.
6.Accepted small MOQ.
7.Trade Assurance on Alibaba.
8.Factory certification:CE,RoHS and ISO9001.
