Automatic read energy meter data power management software building energy management system

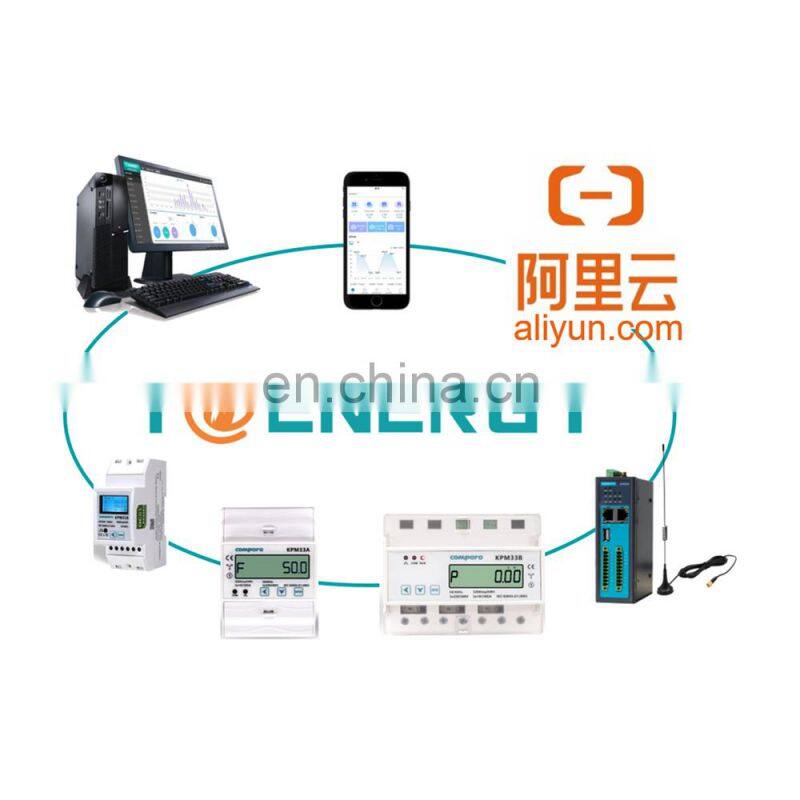

T@Energy energy management system uses advanced intelligent integration technology, based on the B/S structure of energy management,The platform collects energy consumption and operation information of energy consumption monitoring points (power distribution,lighting,air conditioning,elevators,water supply and drainage,hot water units and key equipment),then forming a classification of energy consumption,sub-item and sub-area statistics, It is important to help customers to make more efficient use of energy,thereby achieved the goal of "make energy benefit more simple".

 Main Function

1.Automatic power consumption data collection.

2.Report form service.

3.B/S Access interface.

4.Remote control on/off for arrears

5. Different authority level for meters

6. Low value alarm

Energy efficiency management layer

Completing the data collection, calibration, analysis, processing, output, system maintenance, authorized use, authority grading control; and could send  the important data for on site, alarm information, fault information to the enterprise decision-making.

Network communication layer

The area's electrical power collection module is connected to the relative communication manager machine by transmission methods on site, such as RS485, Ethernet, GPRS, Zigbee, WIFI and so on; every communication manager through the user's local area network to connect to the central server.

On site devices layer

Data collection layer is responsible for the collection and upload of the parameters of electricity, water, gas, heating and cooling and environment. It is consists of multi-function power meters, multi-function energy meter, smart water meter, smart gas meter, temperature and humidity sensors and other collection devices.
