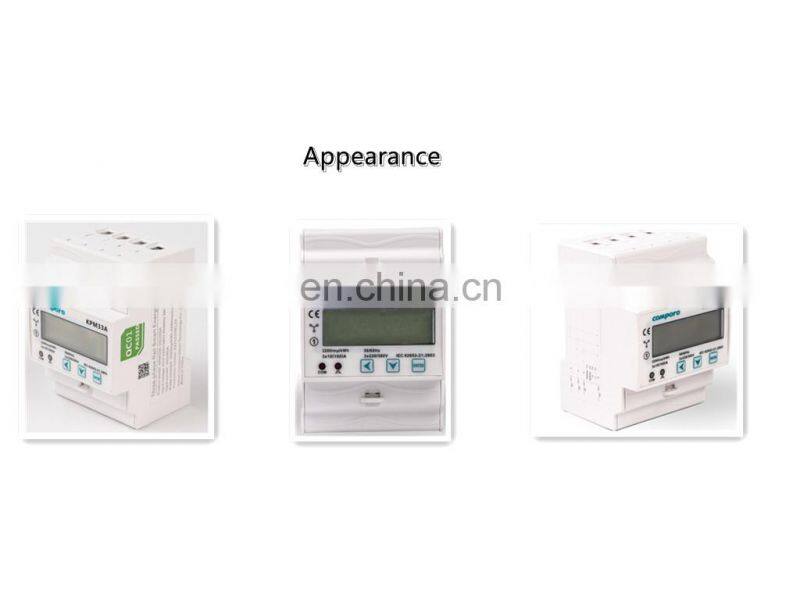

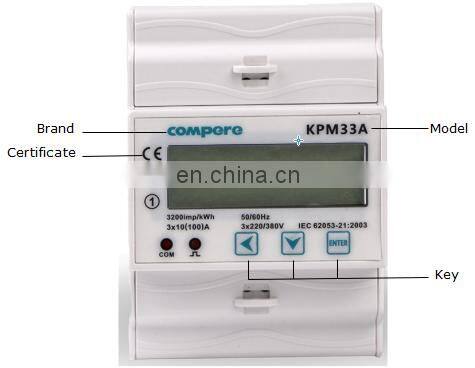

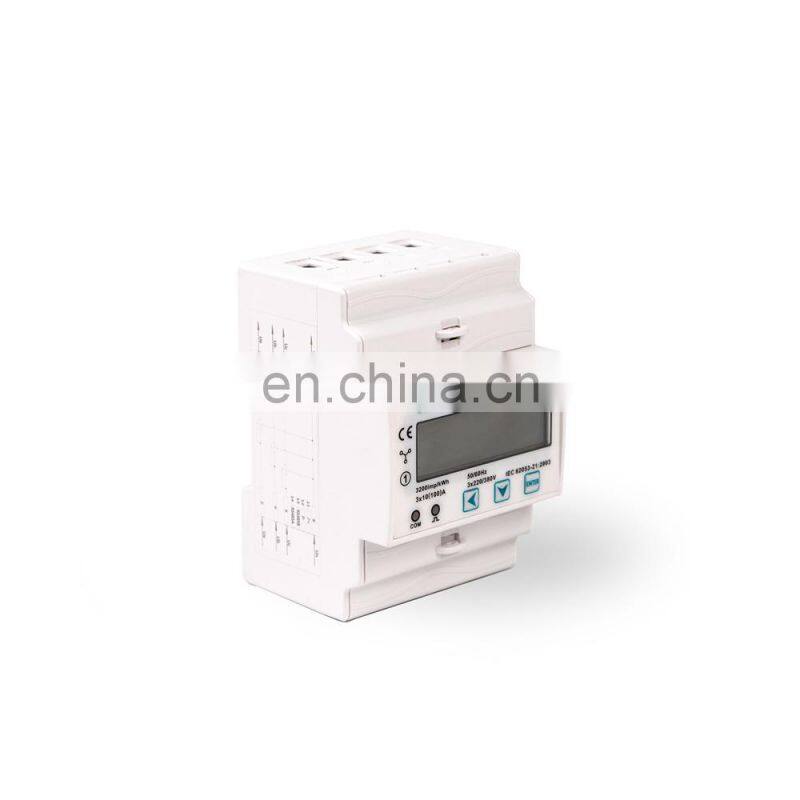

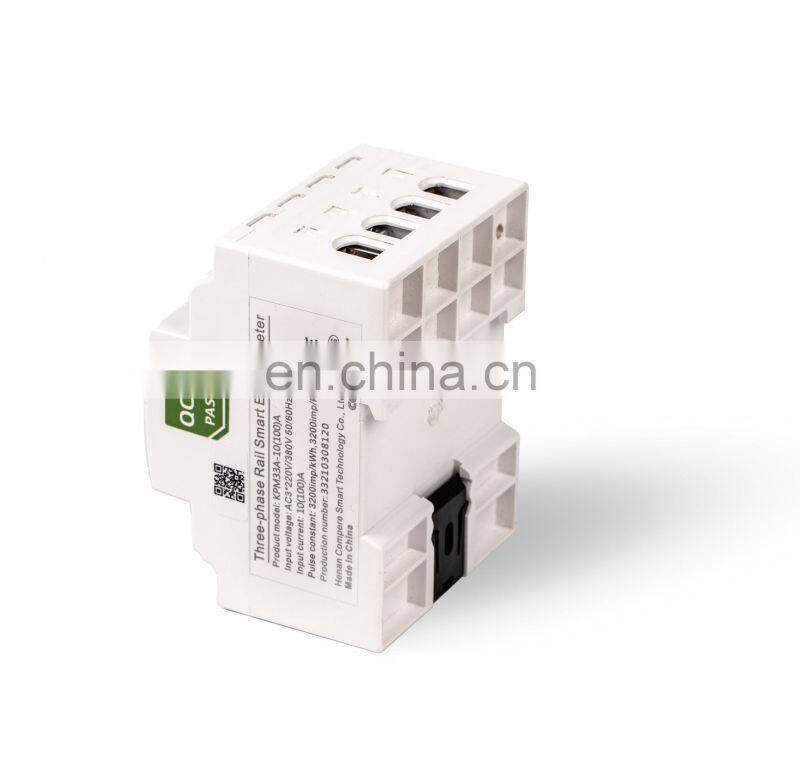

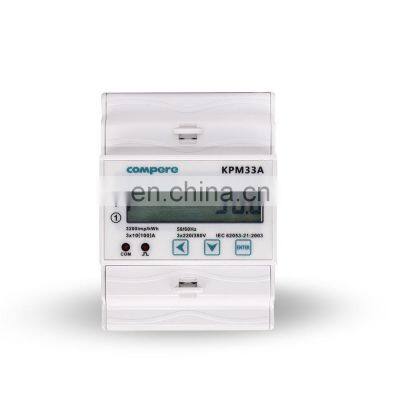

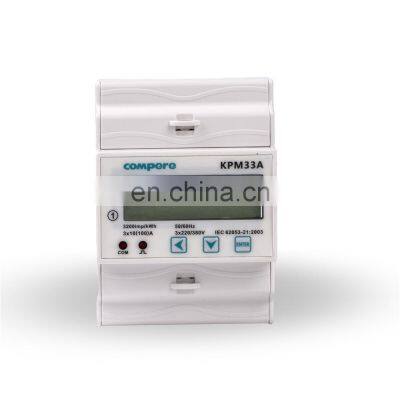

New model three phase DIN 35mm rail mounted smart wifi communication power meter KPM33A

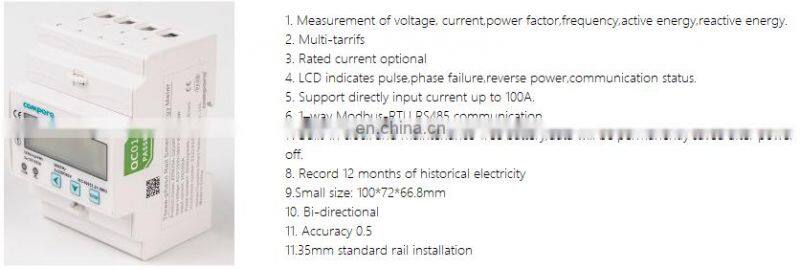

KPM33A three-phase rail smart energy meter with DIN35mm guideway type installation structure,LCD display,measurement of electrical energy and other electrical parameters,it can set some parameter,such as the clock,rate period,and so on,it also own electrical energy pulse output function;available RS485 communication interface with the host computer Realize data exchange.The energy meter has the advantages of small physical protection,high precision,good reliability and convenient installation,and the performance indexes are in line with the requirements of the national standard GB/T 17215-2002, GB/T17883-1999 and power industry standard DL/T614-2007 The technical requirements for government agencies and large public buildings in the measurement of electrical energy can also be used for enterprises and institutions for energy management assessment.

Accuracy: -kWh, 0.5S  -Var, ±2% -Power factor, ±0.5% -Voltage&Current, ±0.2%   Rated: Input voltage: 3*220VAC Input current: Up to 100A Device consumption: ≤2VA   Environmental conditions: -Working temperature: -25℃~+70℃ Storage temperature: -30℃~+75℃ -Relative humidity: 5%~95% non-condensing Altitude: Below 3000 meters

Bi-directional function   Support multi tariffs   Communication: Wifi, Modbus-RTU, RS485 port   Mounted: Rail type   Meter size: 100*72*66.8mm    Weight: 380g

 Solution wiring

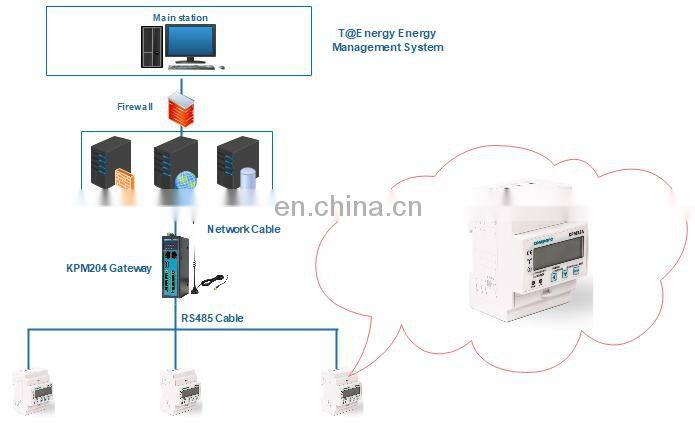

1-Wiring

Connect the meter KPM33A and the gateway with RS485 cable

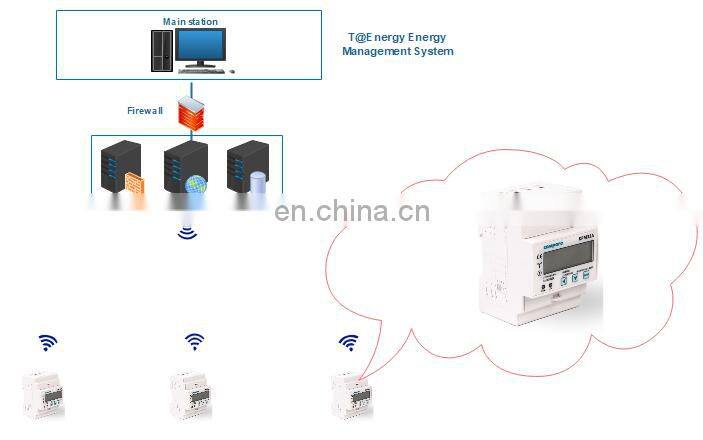

1-Wireless

Meter KPM33A communicates direclty withsoftware via Wifi.

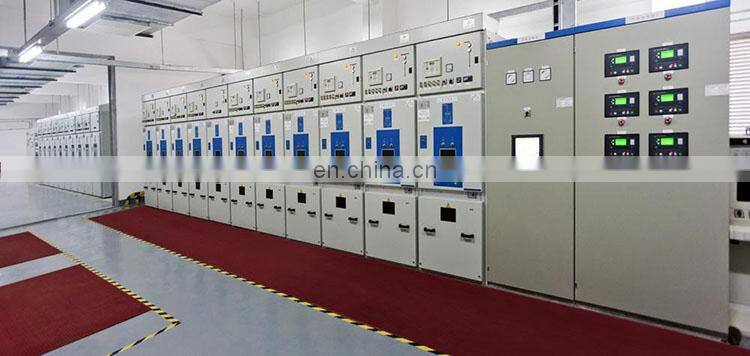

Residential/Industrial&Commercial Applications

Packaging Details

standard paper box, one piece in one box, 8 pieces in one carton

Delivery Time

Shipped in 3 days after payment

1.Experienced manufacturer more than 10 years.

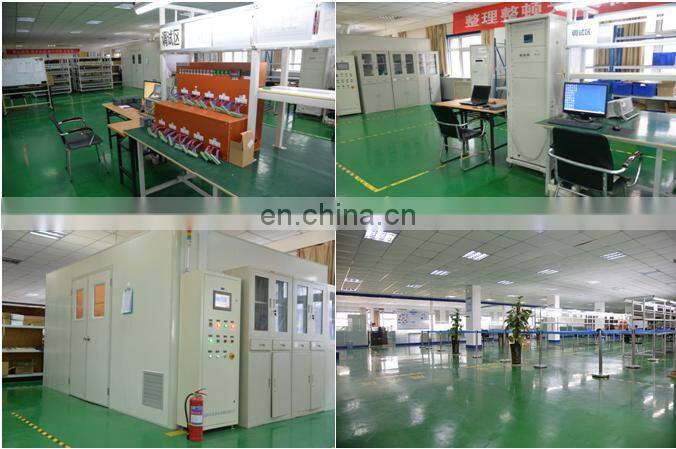

2.Highly experienced production team in Compere factory work-shop.
3.QC System:Quality controlled on all production lines,and QC inspectors work independently from the production line.
4.Good quality production with quick delivery.
5.Accepted OEM/ODM.
6.Accepted small MOQ.
7.Trade Assurance on Alibaba.
8.Factory certification:CE,RoHS and ISO9001.

Q1: Can I ask for samples?

    Yes,Click Here Send Inquiry Now

Q2. What's the warranty of your products?

    12 months.

Q3. What's the lead time?

    Depend on the quantity and model of the order,normally the sample takes around 3 days

Q4 Do you have software?

   Yes, we could provide the overall solution

Q5. Can you offer Modbus protocol instruction/modbus register map?

    Yes,we have and welcome contact us.

Compere is a technological enterprise with strong R&D resources and good sales. Welcome inquiry.
