20A  double break mode remote on/off control in-wall  energy saving switch

The Smart Energy Switch SES441 is a device with wattage (W) and kilowatt hours (kWh) measurement functions.
It allows you to control its On/Off status as well as to check real-time energy usage wirelessly via your mobile App.
It's relay is designed with double-break mode.The switch is suitable for power control of air conditioner and water heater.



20A Double Break Mode In-wall Energy Saving Switch Zigbee Water Boiler Switch





Main Features

General



•ZigBee HA 1.2 compliant 20A Double Break Mode In-wall Energy Saving Switch Zigbee Water Boiler Switch
•Relay with double-break mode
•Remote On/Off control
•Energy consumption measuring
•Compatible with hot water,air conditioner's power supply



Main Specifications



Wireless Connectivity

ZigBee 2.4GHz IEEE 802.15.4

Relay
  Neutral and live wire double break

ZigBee Profile
Home Automation Profile
Smart Energy Profile (optional)

Operating Voltage

 AC 100-250V

Max. Load Current

20A

Operating Temperature
-10 ℃ ~+55 ℃ Working for 6 hours at full load,temperaturerise not exceeding 45℃
Flame Rating VO
Calibrated Metering Accuracy Within ±2%
Power consumption Less than 2w

Dimensions

86(L) x 86(W) x 32(H) mm

Weight

134g

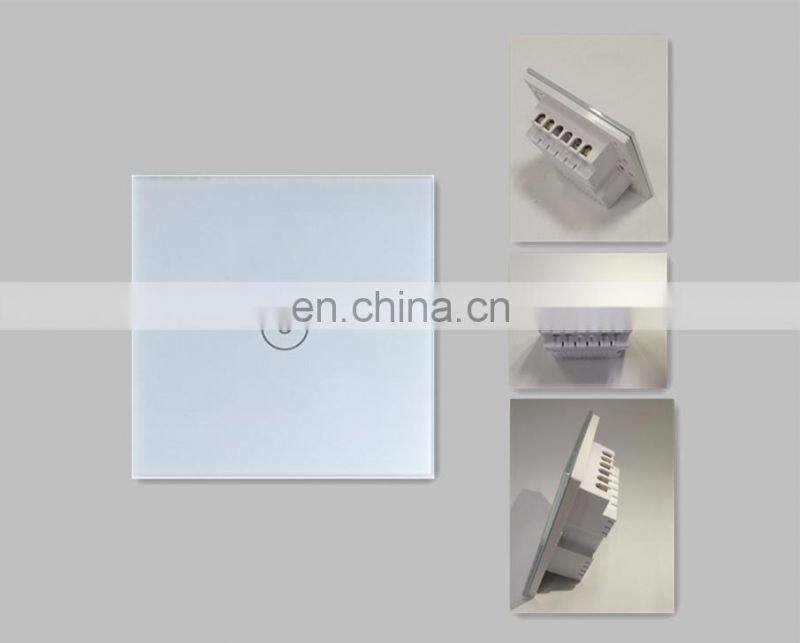

Multi-view

20A Double Break Mode In-wall Energy Saving Switch Zigbee Water Boiler Switch





Any home can be SMART if you want,system module in us:

- Energy ( Smart Plug, Din rail, Load Control, Power Clamps)
- Comfort ( HVAC Thermostat, Fan coil thermostat, AC control etc)
- Security ( Door/window sensor, smoke detector, multi-sensors etc)
- Lighting ( LED bulb, Relays, Smart plug, wireless dimmer switch etc)
- Video (IP camera)

Very Easy to Start Your Smart Life

  • Step1. To get started, you will need:

       1.A ZigBee Gateway.
       2.The mobile Phone with a mobile app installed

  • Step2.Connect to the gateway’s network

      1.Set your gateway to permit joining.
      2.Plug in the smart switch and make sure the LED indicator flashing slowly.
      3.The smart switch will join the gateway automatically and the LED indicator
         will turn steady when successfully joined.

  • Step3.Plug the appliance into the smart switch

      1.Plug your appliance into the smart switch, so you can remotely switch
         it on/off as well as check real-time energy usage via your mobile App.
