China Factory Direct Sale Suprema RB-SM501 Hydraulic Wedge Barriers Anti-terrorist

China Factory Direct Sale Suprema RB-SM501 Hydraulic Wedge Barriers Anti-terrorist

Dimension: (Intercept width+190mm)L x 1974mmW x 300mmH(Depth)

Intercept Height: 1000mm

Intercept Width: 3M – 4M – 5M – 6M

Depth: 300mm

Top plate thickness: 25mm

Rising Time: 4-6s

Rated Power: 4KW for 3M & 4M, 5.5KW for 5M

Operating Temperature: -40°C~+70°C (FOR LOW TEMPERATURESSEE THE HEATING RESISTANCE)

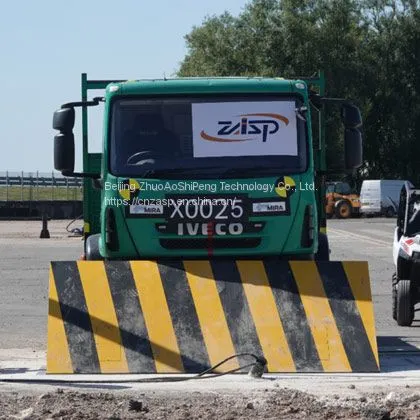

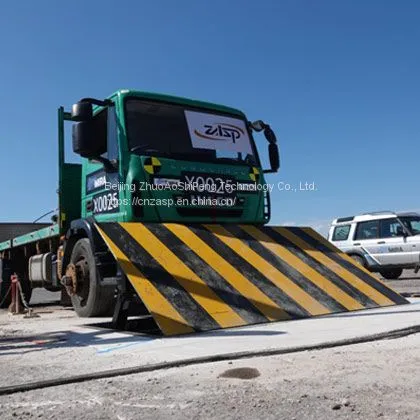

Impact Tested: IWA & PAS, 7500KG / 80KMH, equal ATSM K12/M50

Impact Result: ZERO Penetration

Mini Order: 1 sets

Lead Time: 10 working days after confirm the payments

OEM/ODM service are available

AVAILABLE ITEMS:

Emergency fast raise system

Emergency buttons with lock down

Accumulator systems for hydraulic operation in power failure conditions

Access and intercom systems

UPS backup for the electrical system

Interlocking systems to give air-lock type protection on sites with higher threat levels

Inductive loop systems

Traffiffiffic lights and back indications systems

Integral inset warning lights in

A3 steel cover plate with anti-slip coating

E.F.O. emergency start-up circuit (about 1.5 seconds)

Equipment for manual operation

Heat-resistant

Traffic light with two lights (green-red)

Loop inductive detector

Inductive loop

ZASP High Security Shallow Mount Suprema Wedge Barrier SM501-1000 provides a high level of security against unauthorized vehicle access, we designed especially for entrance points that have a threat of vehicle attack or for the ones that have high security requirements.

ZASP Suprema RB-SM501-1000 shallow mount features for limiting the depth of the basement compartment and to avoid the main problems of laying in presence of public services, moreover it is possible to install the road blocker on ground level by using a slope. The drive unit is electron-hydraulic, external hydraulic station and controller, typical rising/descend time is 3-5 seconds, in case of emergency, rising/descend time can be as low as 1.5 seconds if hydraulic accumulator added the optional EFO system.
