flat ftth drop optic fiber cable 1 core
g657a1 fiber optic cable g657a2 fiber optic cable g657b3 3
Description:

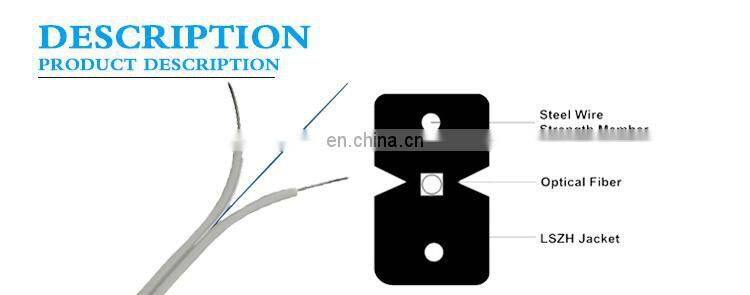

The typical bow-type drop fiber optic cable consists of GJXFH/GJXH cable and an additional strength member (steel wire or stranded steel wire).
Standards:
g657a1 fiber optic cable g657a2 fiber optic cable g657b3 3
Comply with standard YD/T1997-2009
Technical Parameter:
Cable Type | Cable Diamter (mm) | Weight (kg/km) | Tensile strength(N) | Crush Resistance(N/100mm) | Minimum bending radius (mm) | |||
|
|
| Short-term | Long-term | Short-term | Long-term | Static | Dynamic |
GJXFH-1 | 2.0*5.0 | 21 | 60 | 30 | 1000 | 300 | 15 | 30 |
GJXFH-2 | 2.0*5.0 | 21 | 60 | 30 | 1000 | 300 | 15 | 30 |
GJXFH-4 | 2.0*5.6 | 21.5 | 60 | 30 | 1000 | 300 | 15 | 30 |
GJXH-1 | 2.0*5.0 | 21 | 60 | 30 | 1000 | 300 | 15 | 30 |
GJXH-2 | 2.0*5.0 | 21 | 60 | 30 | 1000 | 300 | 15 | 30 |
GJXH-4 | 2.0*5.6 | 21.5 | 60 | 30 | 1000 | 300 | 15 | 30 |
COMPANY IMFORMATION
Hunan Guanglian Photoelectricity Technologies Co., Ltd(GL technology) is a professional manufacturer of fiber optic cable. GL technology offers its customers a complete range of indoor & outdoor cables,including FTTH drop cables/ aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable, ADSS,OPGW and OPPC for power system transmission in China.
Over 200.00km of fiber optic cables installed, with sold over the world more than 30 countries. GL technology have been used in various fields over the world. In GL technology, We supply a full system and providing fiber optic cable system solutions and technical assistance for you. Customers who choose the GL technology can be sure that their decision will lead to a successful experience.
OUR EXIHIBITION
Certification
PAKING AND SHIPPING
1. Standard Packaging: Rolled by wooden wooden drums. 2000m to 6000m/drum or other required. 2. Sheath mark: The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required b. Standard Code(Product Type, Fiber Type, Fiber Count) c. Year of manufacture: 7 years d. Length marking in meters. | Our Service: 1.We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience. 2.We accept OEM. The cable size and material are customized. Ur own logo and own design are welcome. We will produce according to your requirment and description; 3.Please send us inquiry for more products info and we will give you feedback in 12 hours. |
FAQ
1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
