500m span self supporting 24 core fiber optic cable adss optical fiber cable price list

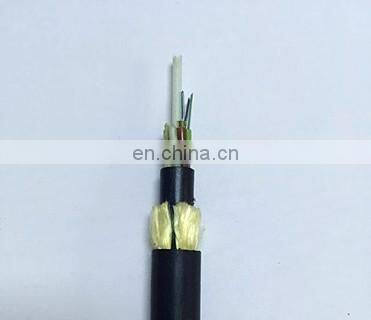

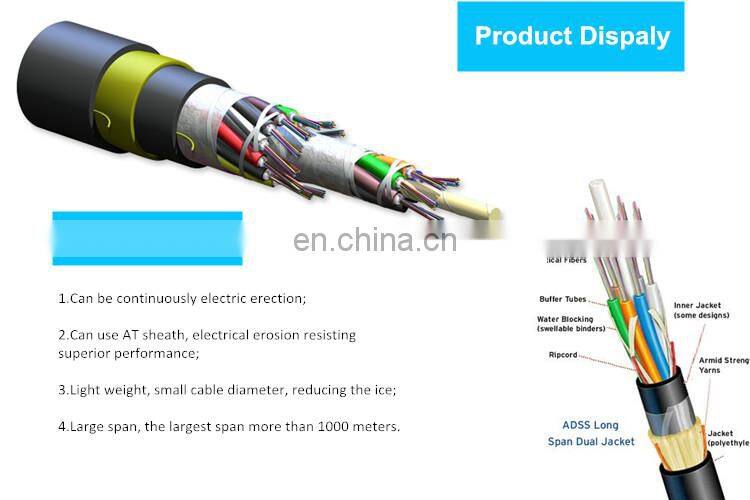

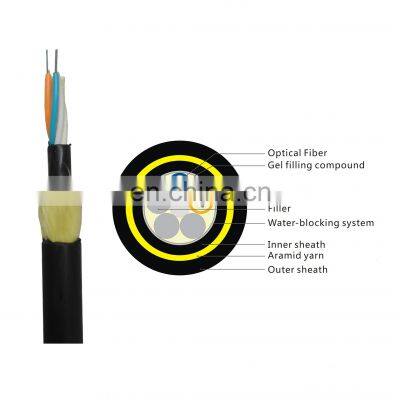

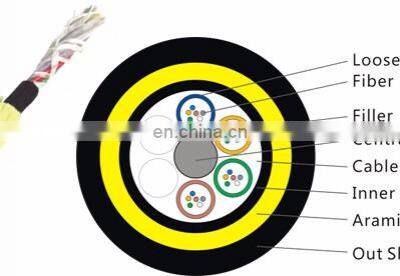

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
ADSS Optical fiber type and properties
|
Item |
Unit |
Specification |
|
|
G. 652 |
|||
|
Mode field diameter |
1310nm |
mm |
8.6±0.4um |
|
1550nm |
mm |
9.8±0.8um |
|
|
Cladding diameter |
mm |
124.8±0.7 um |
|
|
Cladding non-circularity |
% |
≤0.7% |
|
|
Core/cladding concentricity error |
mm |
£0.5 |
|
|
Coating diameter |
mm |
242 ± 7 |
|
|
Coating/cladding concentricity error |
mm |
£12 |
|
|
Cable cut-off wavelength |
nm |
£ 1260 |
|
|
Attenuation Coefficient |
1310nm |
dB/km |
£0.36 |
|
1550nm |
dB/km |
£0.22 |
|
|
Proof stress level |
kpsi |
≥100 |
|
ADSS Cable performance
|
Item |
Parameters |
|||
|
Loose tube |
Material |
PBT |
||
|
Color |
All colors display |
|||
|
Filler |
Material |
HDPE |
||
|
Color |
Natural color |
|||
|
CSM |
Material |
FRP |
||
|
Non-metal reinforced pieces |
Material |
Aramid yarn |
||
|
Outer jacket |
Material |
HDPE |
||
|
Color |
Black |
|||
|
Min. bending radius |
Static |
10 times cable diameter |
||
|
Dynamic |
20 times cable diameter |
|||
|
Repeating bending |
Load:150N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage. |
|||
|
Crush |
Short term |
1000N/100mm |
||
|
Torsion |
Load:150N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage. |
|||
|
Impact |
Impact energy : 450g × 1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage. |
|||

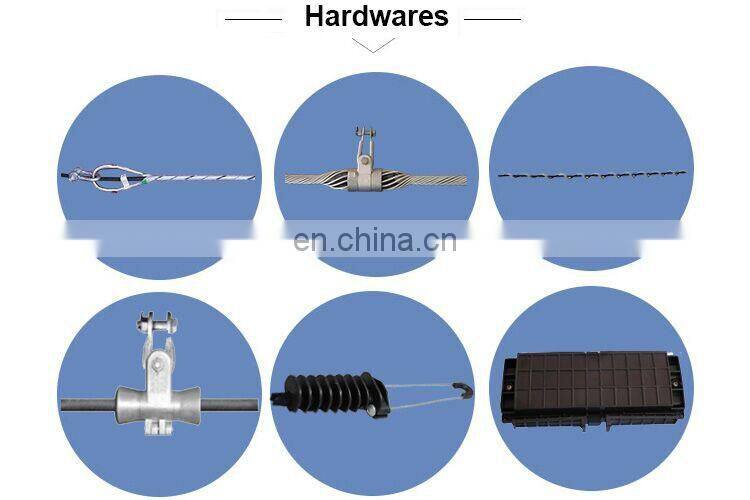

Related ADSS optical fiber cable fittings:

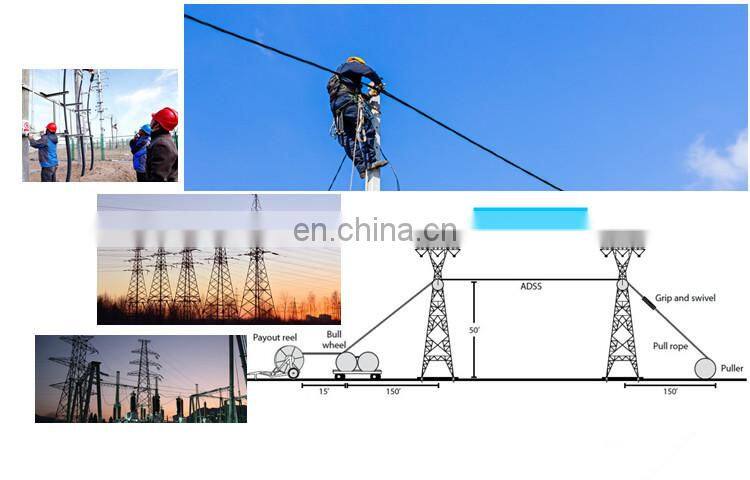

The installation guide of ADSS optical fiber cable:
More related information of ADSS cable needed, please contact the product manager
