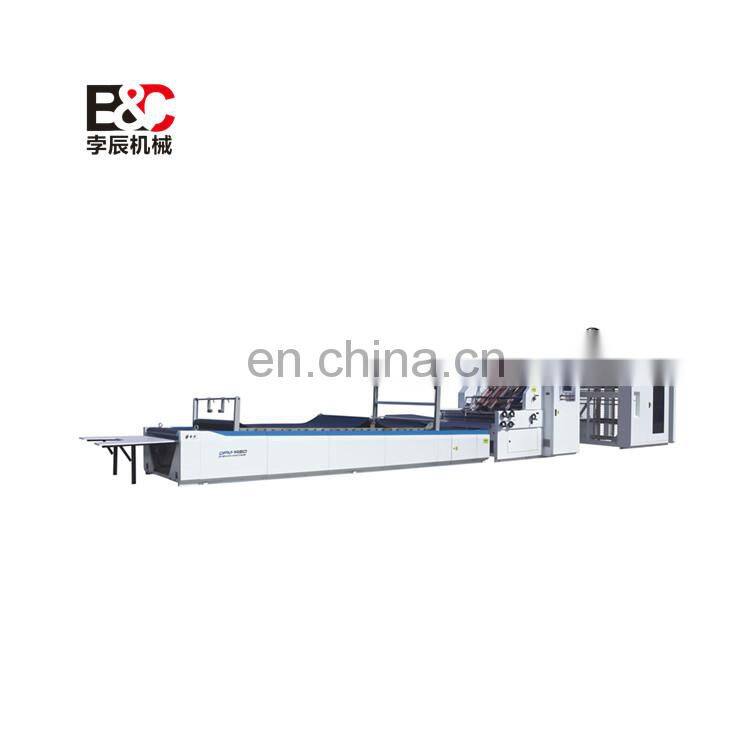

Automatic Corrugated Paper Board Flute Laminator Machine 1650

1. Product description
1.1 Function:
The paper can be laminated with paperboard to increase the strength and thickness of the material or special effects. After the die-cutting, it can be used for packaging boxes, billboards and other purposes.

1.2 Structure:
A. Upper Paper Feeder: It can send stacks of 150-800gsm paper from above.
B. Bottom feed: It can send 0.5~1Omm paperboard from below.

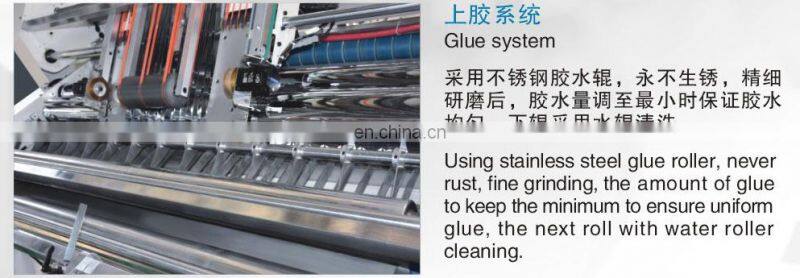

C. Gluing mechanism: The glued water can be applied to the fed paper.
D. Regulatory organization - Fits the two papers according to the set tolerances.
E. Pressurizing Conveyor... Presses the attached paper and conveys it to the delivery section.

1.3 Principles:
The top paper is sent out by the upper paper feeder and sent to the start detector of the positioning mechanism for detection. Then the bottom paper is sent out; after the bottom paper is coated with glue on the glue wheel, the top paper and the bottom paper are respectively conveyed to the paper Synchronous detectors on both sides, after the detection, the controller calculates the error value of the paper and the bottom paper, and the servo compensation device on both sides of the paper compensates the paper to a predetermined position for splicing, and then pressurizes the conveying. The machine presses the paper and conveys it to the delivery machine to collect the finished product.

1.4 applicable materials:
Paste paper --- 150 ~ 800g/m thin paper, cardboard.
Bottom paper---0.5~10m/m paperboard, single-sided cardboard, multi-layer corrugated paper, pearl board, honeycomb board, styrofoam board.
Glue - resin, etc., PH value between 6 ~ 8, can be applied to the glue.

Structural features:

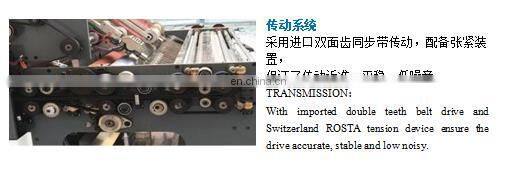

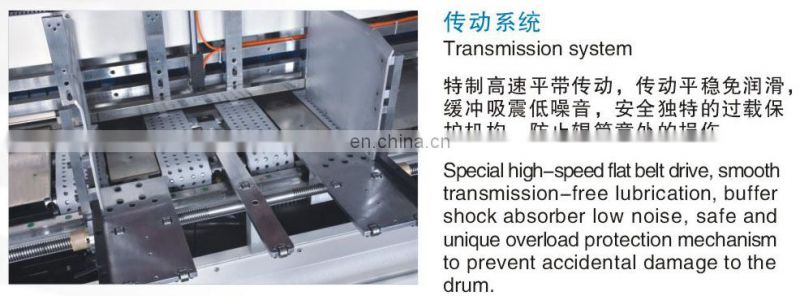

1. Adopting the world's leading transmission control system, only need to input paper size system auto-tuning.

2. Computerized high-speed fitting, up to 12,000 pieces per hour.

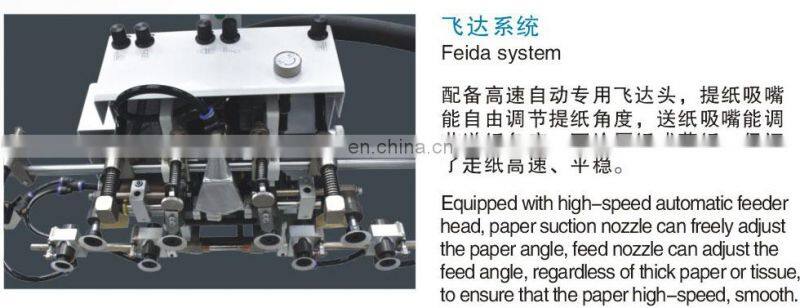

3. Chuanliu-type air supply head, with four sets of forward nozzles and four sets of suction nozzles.

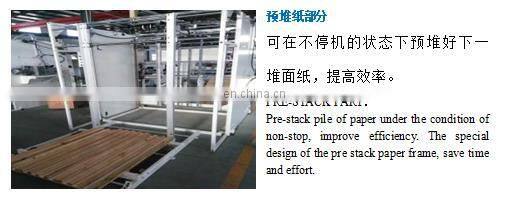

4. Feed Block adopts low stack cardboard, which can fit the paper to the pallet, and can install track-assisted pre-stacker

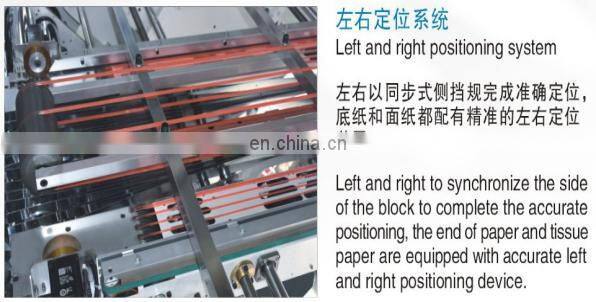

5. Use multiple sets of electric eyes to know the advance position of the bottom line, and make the servo motor on both sides of the face paper to independently rotate to compensate the upper and lower paper alignment, which is accurate and smooth.

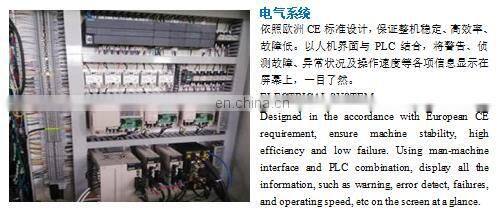

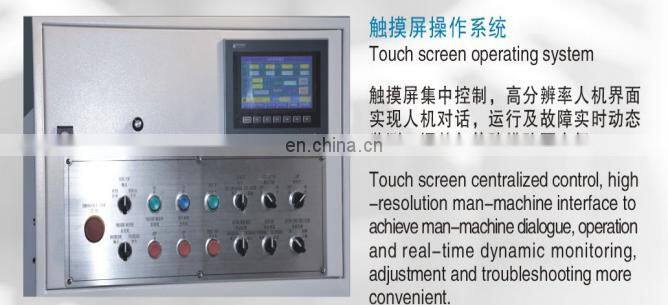

6. Full-function electronic control system, using human-machine interface and PLC program model display, can automatically detect operating conditions and work records.

7. Automatic glue replenishment system can automatically compensate for lost glue and cooperate with glue recycling.

Parameters:

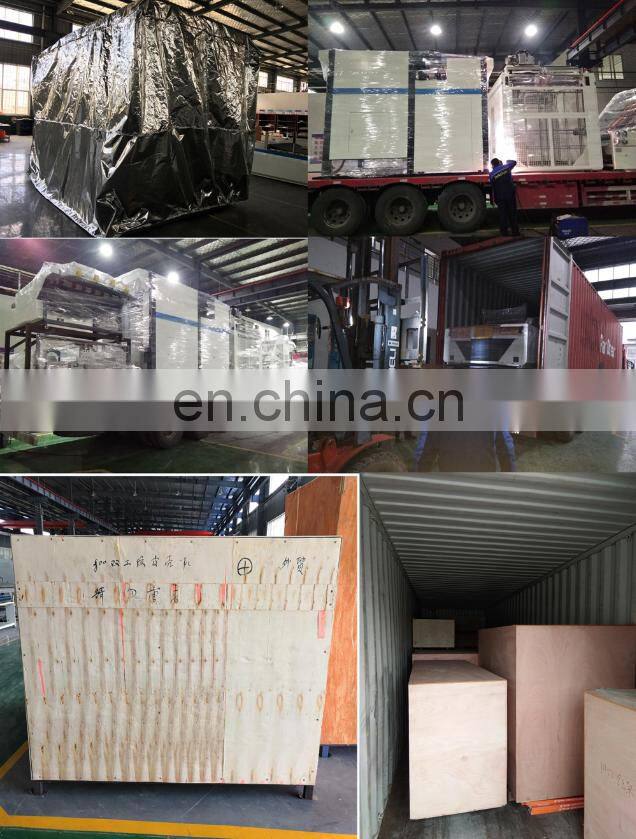

1. The packing is confirm to export wooden case standard, strong and durable. The                    wooden case’s thickness is generally 1 cm.

2. In order to be waterproof, we usually use bubble film to wrap machine.

3. We can handle shipping for customers too.

*With 10 years' Experience

*Having ISO 9001-Certified Factory

*Strong R&D capability

*High Quality Guaranteed

*First Class Service And Best Prices

*Primary products:

    Automatic High Speed Flute Laminater

    ZXSCM Book Case Making Machine

    650UV Coating Machine

    ZX-650C Manual Paper Pasting Machine

    Box Making Machine

    Hot Melt Gluing Machine and Gluing Machine

    Table Gluing Machine

    Paper Pressing Machine.etc

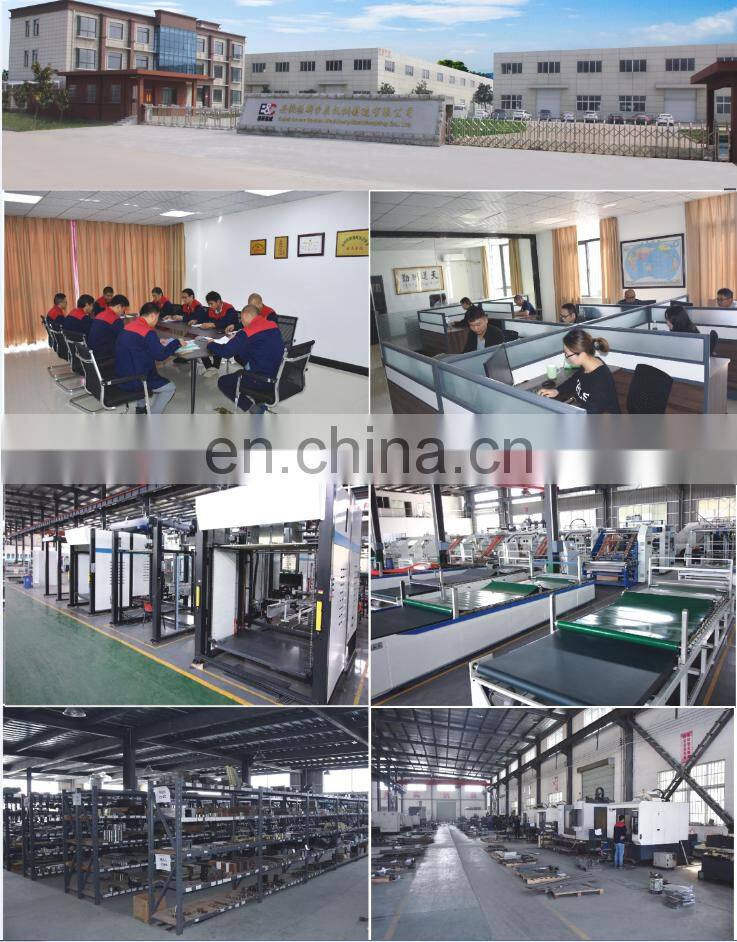

    Welcome to visit our factory!

We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.

Innovo look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.

1.What is Innovo company machine warranty?----one year.

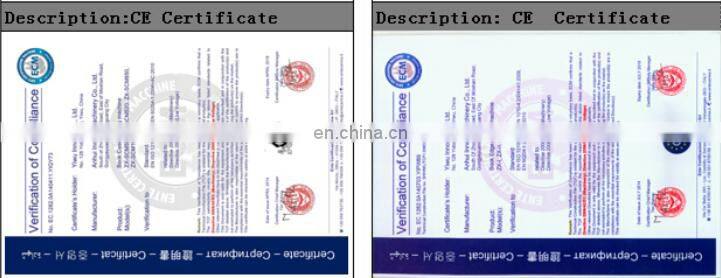

2.Does your machine with CE certificate?----Yes.

3.What is the production time while placing order?----Arounding 7-30 days

4.What is the delivery time?----Within 7-30 days after get the payment.

5.Can Innovo company handle shipping for customers?----Yes.(Please provide us your requested seaport and we can        check the shipping charge and arrange shipping for your order)

6.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case, all are confirm to          export packing standard.

7.How about after-sales service process?----When your machine has problem, contact your sales and we will solve your    problem as soon as possible.

8.Are you a manufacturer?----Yes, we are a manufacturer with 10-year experience and profession.

9.What is the minimum quantity for order?----Trial order 1 pc is acceptable, we done business step by step with high            quality products and excellent services.

10Do you have stock product to sell?----Maybe, It depends on which machine you like.

11Do you inspect the finished products?----Yes, each step of production products will be picked out inspection by QC         department before  shipping.

12.What’s the payment term?----T/T 30% in advance, the balance paid against the copy of B/L. We accept payment via              West Union too. You can choose as you like.
