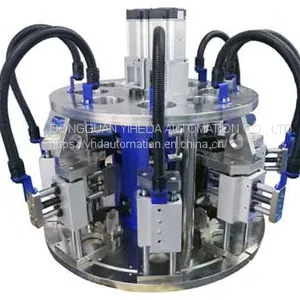

Help CenterTurntable Linkage High-speed Manipulator
Related Products
Yiheda automation is one of the best industrial assembly automation companies, as an expert custom automation company, specializes in designing and manufacturing the custom automation solution to customers.
Machine introduction of Turntable 90 degree linkage high-speed manipulator
Driven by two sets of servo motor and screw rod, the manipulator can move in X-axis and Z-axis direction. One X-axis action plus two z-axis actions are a cycle, the cycle time is 1.2s, which guarantee the speed, stability and accuracy of the manipulator, and can replace the traditional pneumatic manipulator.
Machine features of high speed turntable manipulator
Driven by two sets of independent three-phase servo motor.
With high accuracy screw rod.
Simplified the traditional complex control system input.
The remove, lift and press-fitting module are easy to change and flexible.
With compact structure and easy to be integrated.
Standard design, short delivery time and low cost.
Replace the traditional pneumatic manipulator with indexing table.
Cycle time≥1.2s
Repeat positioning accuracy ±0.03mm.
Machine standard of Turntable linkage high-speed manipulator
Two sets of module ≤8.
Custom Standard＞8.
