image video measuring system machine

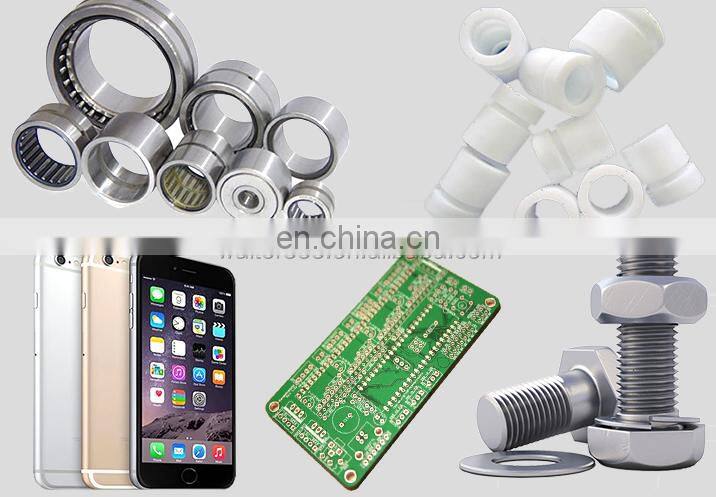

This Video Measurement Machine is applicable to two coordinates measuring for the purpose of all fields of application, machinery, electronics, instruments, plastic etc widely used.
|
Model Type |
VMS-2010 |
VMS-3020 |
VMS-4030 |
VMS-5030 |
|
Metal table size(mm) |
404 x 228 |
506 x 356 |
606 x 466 |
706 x 466 |
|
Glass table size(mm) |
260 x 160 |
350 x 280 |
350 x 350 |
550 x 350 |
|
Travel: X,Y(mm) |
200 x 100 |
300 x 200 |
400 x 300 |
500 x 300 |
|
Net Weight(kg) |
150kg |
200kg |
250kg |
400kg |
|
Dimension(mm) |
600 x 550 x 920 |
780 x 600 x 1060 |
945 x 646 x 1096 |
960 x 750 x 1100 |
|
Z-axis travel |
200mm |
200mm |
200mm |
200mm |
|
Work distance |
92mm |
92mm |
92mm |
92mm |
|
Resolution of X,Y,Z scales |
0.0005mm |
0.0005mm |
0.0005mm |
0.0005mm |
|
X,Y-axis accuracy |
<=(3+L/200)um |
<=(3+L/200)um |
<=(3+L/200)um |
<=(3+L/200)um |
|
Camera |
1/3"CCD camera |
1/3"CCD camera |
1/3"CCD camera |
1/3"CCD camera |
|
Optical Magnification |
0.7~4.5X |
0.7~4.5X |
0.7~4.5X |
0.7~4.5X |
|
Digital magnification |
30~230X |
30~230X |
30~230X |
30~230X |
|
Object view-field |
7~1.1mm |
7~1.1mm |
7~1.1mm |
7~1.1mm |
|
Contour and surface illumination |
Ring LED and brightness can be setup |
|||
|
Power |
AC180V/60Hz;220V/50Hz |
|||
|

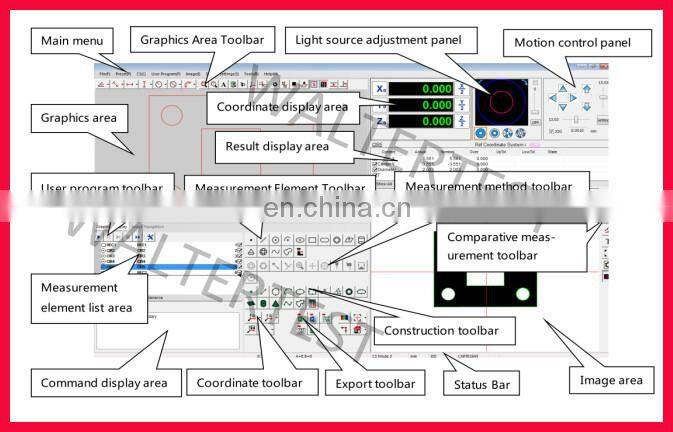

Software |
Quick Measuring 2.0 |
|||
|
The Quick Measuring software is able to control the brightness of 40-division light source, auto-focus, X,Y and Z-axis auto-movement. TXT, Excel report output immediately, dxf drawing input quickly. The operator can setup auto-program-run in light of different measurement case foe different work pieces it improve the operator’s working efficiency effectively and reduce the enterprise’s cost of human resource obviously. |
||||
1.After an order is placed, when will you send to us?
Generally about 7 days, If we have it on stock, we can arrange shipment within 3 days.
2.What about the warranty with after - sales services?
12 months warranty. Besides, we can help you to repair your problem controller freely.
3.What about the services and product' quality?
Our products are widely recognized and trusted by users.All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
if you have any question, pls contact us directly.
Mob: 0086-13712874307
wechat/whatsapp:008613712874307
skype:Peter.liu560
