Home > Products > 03.Paper,Paperboard machine > ASTM D5264 Printing and Paper Ink Rub Tester

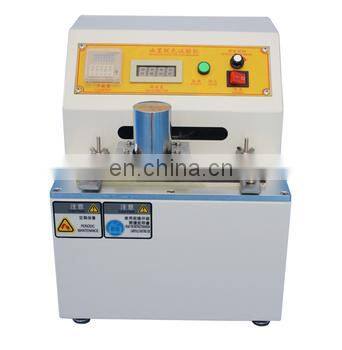

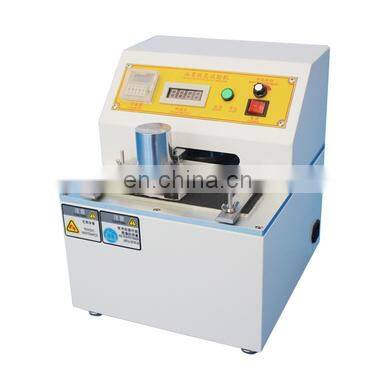

ASTM D5264 Printing and Paper Ink Rub Tester
- T/T Credit Card
You May Like
Product Description
Ink Rub Resistance Tester
This machine applies the ink layer abrasion resistance of printed matter, PS plate photosensitive layer abrasion resistance and related products surface coating wear resistance. Can be an effective analysis of printed anti-friction, adhesion of the wear layer, the PS version of the anti-Indian forces, and other products, rub resistance.
Working principle:
To be grinding the sample layer and the friction paper, load the friction body, rubbing against each other at the prescribed speed, through the wear layer density before and after the measurement of friction before and after grinding layer or coating thickness variation to determine the wear layer or coatingwear resistance.
Specifications:

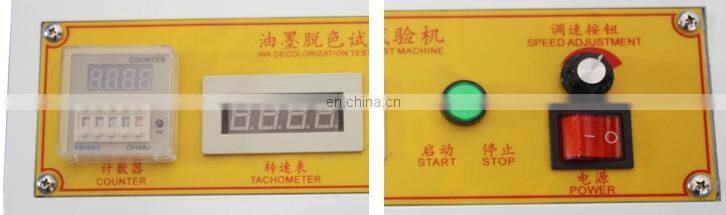

Control method :micro-computer control
Specimen dimension :100×200mm
Rubbing speed :(21/42/85/106c.p.m) 4 choices
Rubbing load :4.1b(2.04kg)(20N)
Rubbing stroke :60mm
Frequency set: 0-9999 automatically stop
Rubbing space :50×200mm
Rate of work :40W
Machine dimension :300×325×300cm W×D×H
Weight :20kg
Power :AC220V5060HZ2A
1.After an order is placed, when will you send to us?
Generally about 7 days, If we have it on stock, we can arrange shipment within 3 days.
2.What about the warranty with after - sales services?
12 months warranty. Besides, we can help you to repair your problem controller freely.
3.What about the services and product' quality?
Our products are widely recognized and trusted by users.All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
