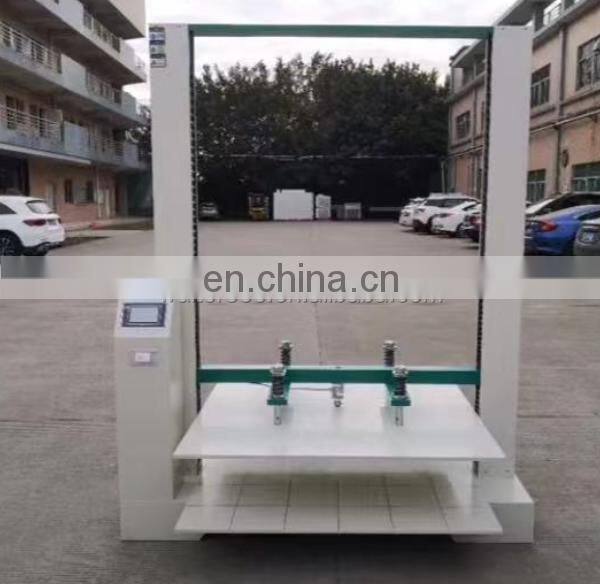

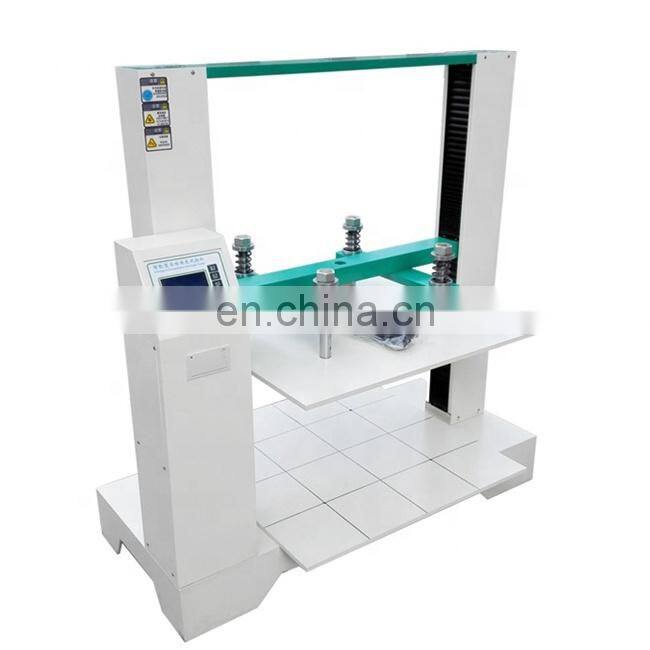

5KN,10KN,20KN,50KN Container BCT Stacking Tester
- T/T Credit Card
You May Like
-
ISTA Paperboard Package Incline Impact Test Machine
-
5KN,10KN,20KN,50KN ISO Corrugated Box BCT Compression Strength Testing Equipment
-
Packaging BCT Stacking Test Instrument
-
10 Years Manufacturer Bursting Strength Testing Equipment
-
Cardboard Corrugated Box Edge Compression Ring Crush Test Machine
-
5KN,10KN,20KN,50KN Box BCT Compression Endurance Equipment
Product Description
Color touch screen Corrugated Package Box Compression equipment
This machine is used for measuring the pressure strength of cartons,containers,etc, for inspecting the pressure-resistance and strike- endurance of packing materials during transportation or carry.
Characteristics:
Digital Display Box compression Testing Machine is used for various kinds of box to test its resistance to compression and stacking capacity.
With advanced measuring and controlling technique, it can realize the accurate measuring and control.
The test data can be displayed on the LCD Monitor.
This machine has been widely used in the fields of carton and packaging industries.
Features:
1.High accuracy motor to control test speed .
2.Ball screw no backlash to guarantee the low noise and high driving efficiency .
3.High accuracy load cell to measure the test load .
4.High accuracy photoelectric encoder to measure the displacement .
5.Compact structure with easy operation .
6.Limit switch and setting in the software to guarantee the safety .
|
Max. load |
200KG,500KG,1T,2T,5T or custom |
|
Units |
kgf, Ibf, N, KN, kPa, MPa |
|
Resolution |
1/50,000 |
|
Accuracy |
±1% |
|
Compression space |
A:600*600*600mm B:1000*1000*1000mm (or designated) |
|
Motor |
Taiwan step motor |
|
Speed of Compression |
10 ± 3 mm/min |
|
Protector |
Leakage protection, overload auto-shutdown, displacement limit protection |
Standard of Corrugated Carton Compression Tester :
[Industrial Standard]:GB/T4857.4 GB/T4857.16 ISO2872,ASTM D642
[Manufacturing Standard]:GB/T16491,TAPPI-T804,JIS-Z0212

1.After an order is placed, when will you send to us?
Generally about 7 days, If we have it on stock, we can arrange shipment within 3 days.
2.What about the warranty with after - sales services?
12 months warranty. Besides, we can help you to repair your problem controller freely.
3.What about the services and product' quality?
Our products are widely recognized and trusted by users.All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
if you have any question, pls contact us directly.
Mob: 0086-13712874307
wechat/whatsapp:008613712874307
skype:Peter.liu560
