Double Wing Package Carton Box Free Fall Drop Impact Tester
- T/T Credit Card
You May Like
Product Description

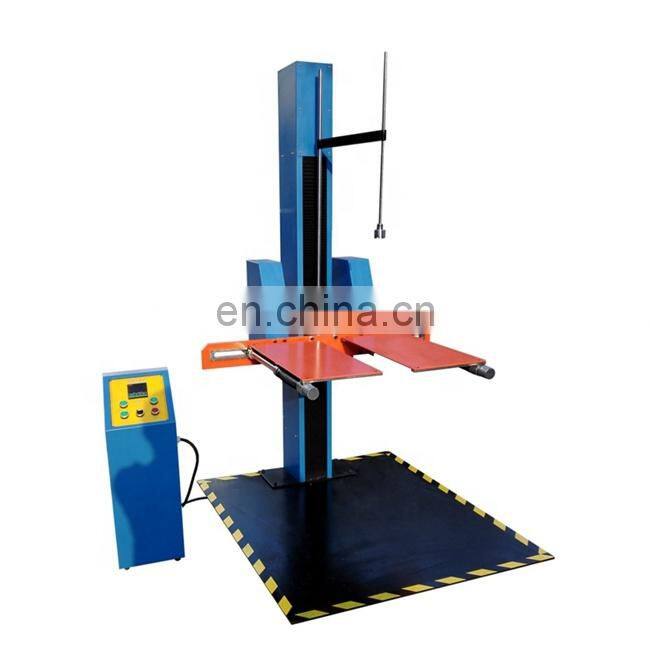

Double Wings Drop Testing Machine
This drop tester is used to measure the dropping impact incidence when the package in using, transportation and decorating. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.
Features :
1,Unique swing arm mechanism design, swing arm break away from acceleration more than 3 G/SEC.
2,With double column guide and hydraulic buffer absorb residual swing arm force, movements smooth, reliable, low noise.
3,Damping screw lifting mechanism, preventing drop institution unexpectedly glide.
4,Pneumatic automatic chain, preventing swing arm unusual break away.
5,Extensible support bracket and baseboard.
| Drop height | 400~1500mm can adjustable |
| Outside Dimension | 1200*800*1000mm |
| Weight | About 450kg |
| Test load | 0~60kg |
| Size bracket arm | 290*240*8mm |
| Drop error | ±10mm |
| Drop panel area | 1700*1400*10mm |
| Drop bottom medium | steel plate |
| Fall and lift way | Electric fall and rise |
| Horsepower | 1HP(750W) |
| Power | AC380V 50HZ |
1.After an order is placed, when will you send to us?
Generally about 7 days, If we have it on stock, we can arrange shipment within 3 days.
2.What about the warranty with after - sales services?
12 months warranty. Besides, we can help you to repair your problem controller freely.
3.What about the services and product' quality?
Our products are widely recognized and trusted by users.All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
if you have any question, pls contact us directly.
