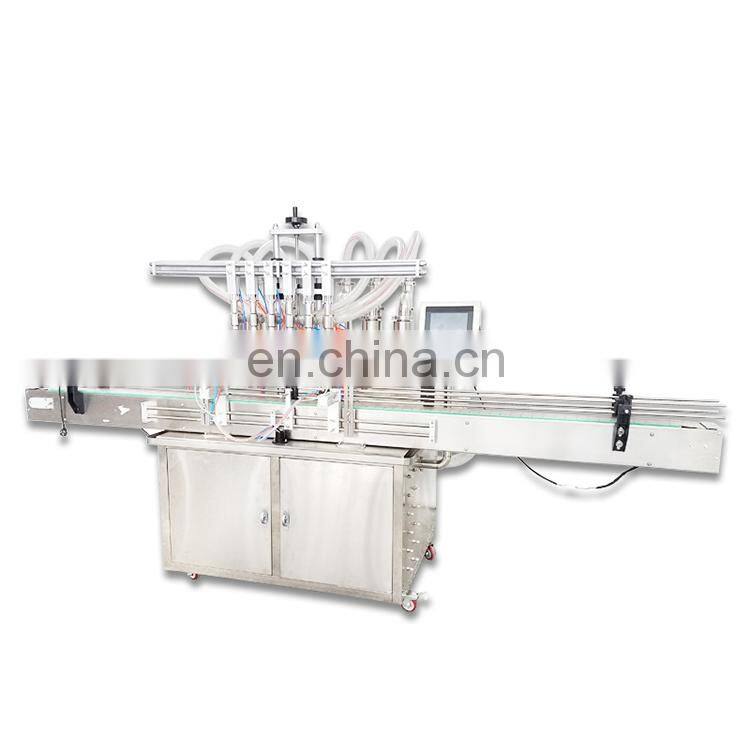

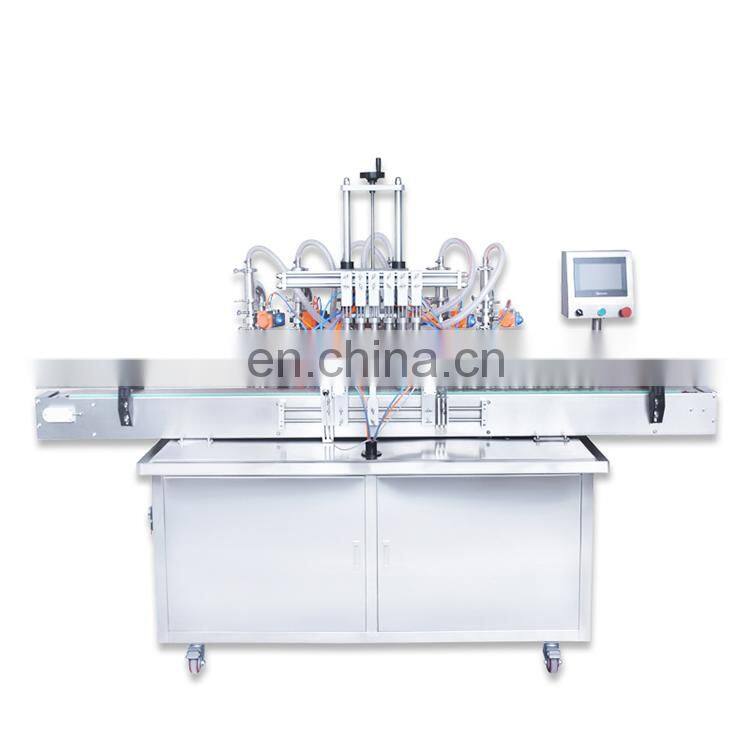

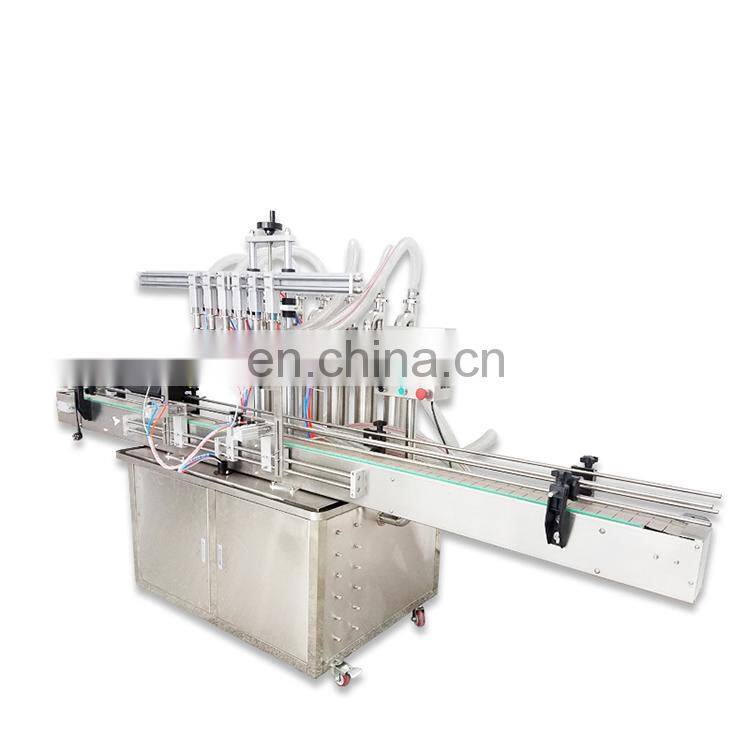

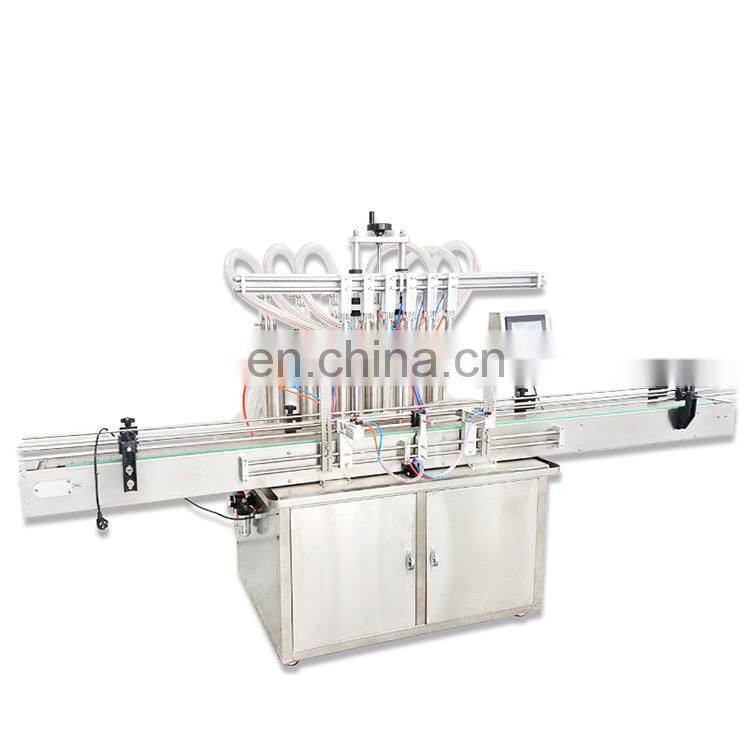

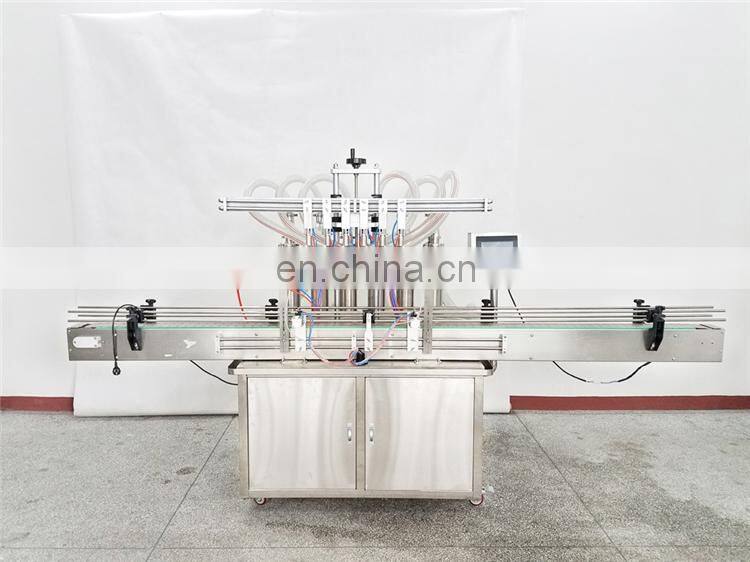

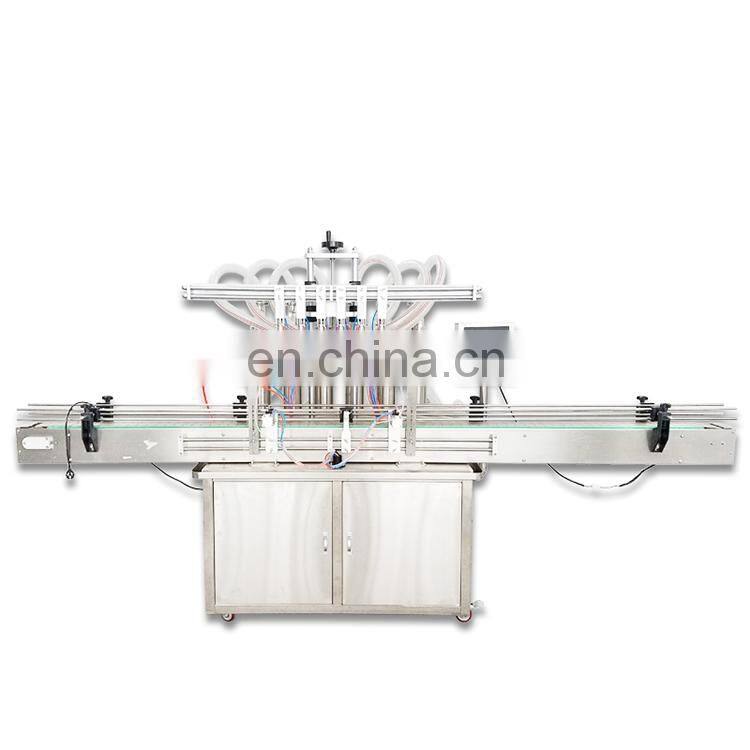

Automatic Filling Machine Liquid Filling Machine With 2, 4, 6 Filling Heads
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1995
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Honey Filling Machine Sauce Paste Filling Machine Filler With 2 Filling NozzlesNegotiableMOQ: 1 -
Automatic Filling Machine Viscous Liquid Cream Paste Filling Machine for Production LineNegotiableMOQ: 1
-
Auto Filling Machine Pneumatic Filler Machine Six Head Straight Paste Automatic Filling Machine PriceNegotiableMOQ: 1
-
Automatic Filling Machine for Viscous Liquid Cream Paste With 2, 4, 6 Filling Nozzles Production LineNegotiableMOQ: 1
-
Straight Line 6-head Automatic Liquid Filling Machine With Conveyor PLC Control PriceNegotiableMOQ: 1
Product Description
Automatic filling machine series, suitable for beverage, juice, oil, liquid condiment, cosmetic hair care products, detergent, lubricating oil, pesticide and other fluid material quantitative filling, not restricted by the bottle type.
Full automatic quantitative filling machine, using the direct type design microcomputer control, accurate filling measurement, easy to adjust filling quantity, flexible and flexible application of 100-5000ML bottle type (including special type bottle) filling. More than 90% of the parts of the whole machine are made of 304 stainless steel, and 304, 316L for contacting material parts, which conform to international hygienic standard. It is beautiful and generous in appearance; the control system adopts imported electrical components and the working procedure is controlled by switch. The operation method is simple and convenient. Most of the transmission parts are controlled by high quality and precision pneumatic components, which have the characteristics of stable performance, safe and reliable operation, accurate measurement and so on.
Product Parameters
Voltage | 220V/110V 50/60Hz |
Power | 500W |
Dimension(L*W*H) | 2300(L)x1500(W)x1900(H)MM |
Weight | 600kg |
Model | Six head straight liquid filling machine |
Speed | 50-60/min |
Air pressure | 0.4-0.6Mpa |
Accuracy | ±1% |
Features
1. The filling adjustment system is composed of variable frequency motor, PLC and touch screen, solenoid valve, material cylinder, actuator and other combination through control setting, which can be easily adjusted, easy to operate and accurate in measurement.
2. The container positioning system is completed by cylinder. The customer can adjust itself according to the containers of different specifications and shapes, the method is simple and the positioning is accurate.
3. The anti dripping system adopts cylinder control. When the filling nozzle is blocked, the recycle device for the leakage slot is adopted to further overcome the leakage phenomenon.
4, some filling materials are easily filled with bubbles. We design the filling nozzle into the outer plug to solve the bubble problem, and use the "PLC" program to control the function of the whole filling edge filling edge, so that the filling measurement is more accurate.
Application
Automatic filling machine series, suitable for beverage, juice, oil, liquid condiment, cosmetic hair care products, detergent, lubricating oil, pesticide and other fluid material quantitative filling, not restricted by the bottle type.
