Home > Products > MARINE NAV&COM > Marine Electronics Navigation Communication Xinuo XF-607 XF-608 7'' Fishing Boat GNSS GPS Navigator Nautical Chart Plotter
Marine Electronics Navigation Communication Xinuo XF-607 XF-608 7'' Fishing Boat GNSS GPS Navigator Nautical Chart Plotter
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Marine Electronics Navigation Communication Xinuo XF-808 8'' Display Fishing Boat GNSS GPS Navigator Nautical Chart Plotter
-
Marine Electronics Navigation Communication Xinuo XF-1069 10.4'' Display Fishing Boat GNSS GPS Navigator Nautical Chart Plotter
-
Marine Electronics Navigation Communication Xinuo HM-1512N 12.1'' Display Fishing Boat GNSS GPS Navigator Nautical Chart Plotter
-
Marine Electronics Navigation Communication Xinuo HM-1815N 15'' Display Fishing Boat GNSS GPS Navigator Nautical Chart Plotter
-
Marine Electronics Navigation Communication Xinuo HM-1817N 17'' Display Fishing Boat GNSS GPS Navigator Nautical Chart Plotter
-
Marine Electronics Maritime Navigation Communication XINUO DF-6908S 200KHz 600W IMO CCS 8 Inch Nautical Digital Echo Sounder
Product Description
Please contact me before purchasing for the shipment and real product price and detailed configuraiton
If you want to make bulk purchase or be our agent, please contact with us

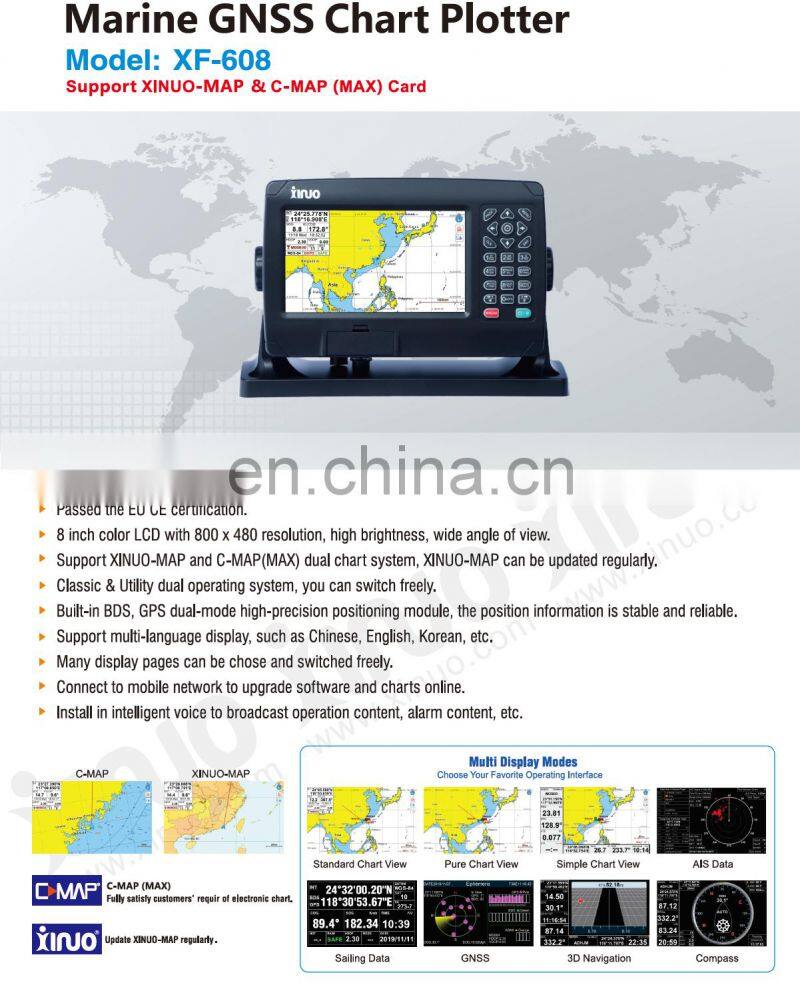

7” Color LCD with 800 x 480 resolution, high brightness and wide angle of view.
C-MAP ( MAX ) & XINUO-MAP dual chart systems for user to choose.
Provide AIS input interfaces to connect with AIS device conveniently and display AIS targets dynamically on the chart.
Multi-language support and six display modes options.
Built-in global chart, upgrade chart regularly with free of charge.
Floating GND power design,more stable and reliable.
Conform to IPX5 water-proof standard.

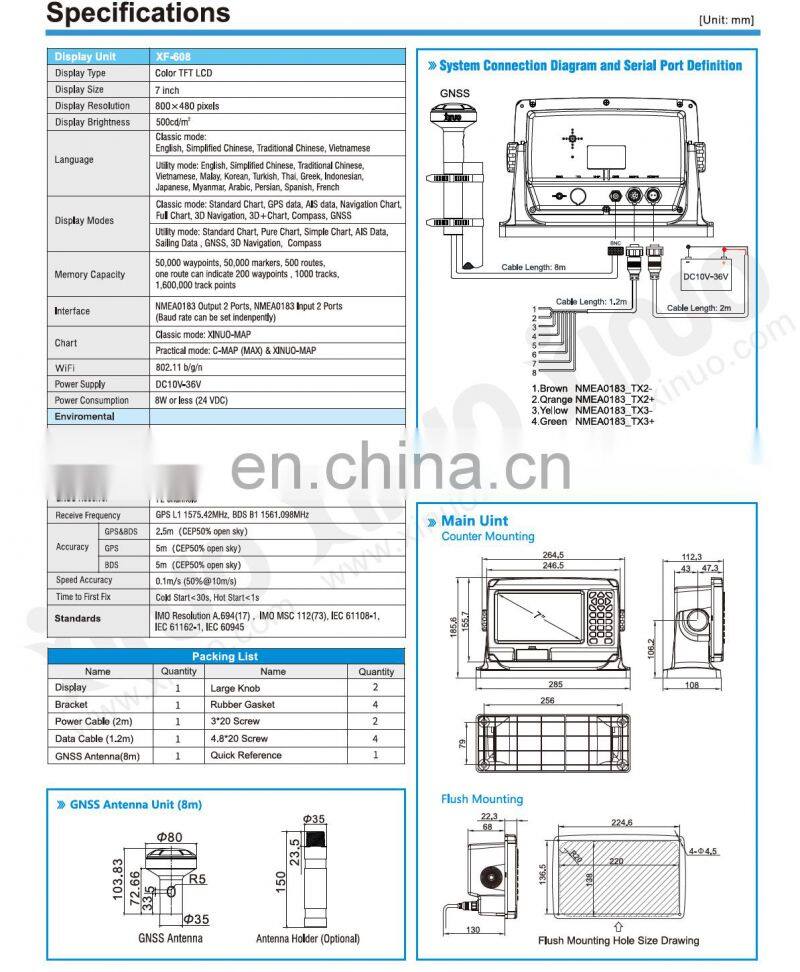

| Display unit | XF-608 |
|---|---|
| Display Type | Color TFT LCD |
| Display Size | 7 inch |
| Display Resolution | 800 × 480 pixels (WVGA) |
| Display Brightness | 550cd/m2 |
| Language | English, Simplified Chinese, Traditional Chinese, Vietnamese, Bahasa Malaysia, Turkish, Thai, Greek, Indonesian, Japanese, Korean, Spanish; Burmese |
| Display Modes | Standard Chart View, Simple Chart View, AIS Data , GNSS Data, 3D Navigation, Compass |
| Memory Capacity | 10000 waypoints, 200 routes ,10000 marks, one route can indicate 1000000 waypoints |
| Interface | 0183 Output 2 Ports, 0183 Input 2 Ports |
| Chart | C-MAP (MAX) & XINUO MAP |
| Power Supply | DC10V-36 V |
| Enviromental | |
| Working temperature | -15℃~+55℃ |
| Storage temperature | -20℃ ~ +60℃ |
| Waterproofing | IPX6 |
| GNSS | |
| GNSS Receiver | 32 channels (Support WAAS/EGNOS/MSAS/GAGAN ) |
| Receive Frequency | L1 (1575.42MHz) B1 (1561.098MHz) |
| Position Accuracy | GPS&BDS 2.5m |
| GPS 3m | |
| BDS 5m | |
| Speed Accuracy | 0.1m/s(50%@10m/s) |
| Acquisition Time | Cold Start: <32s ,Hot Start:<1s |
| Tracking Velocity | 999 knots |
| Coordinate Systems | WGS-84 (and others) |
| Standards | |
|
IEC 60945 :2002 EMC related items ETSI EN 301 489-1V1.8.1:2008 EMC related items
IEC 60950-1:2006 ETSI EN 301 489-3 V1.4.1:2002 EMC related items
IEC 60529:2006 EMC related items ETSI EN 300 440-2 V1.4.1:2010 Spurious related items ETSI EN 300 440-1 V1.6.1:2010 Spurious related items |
|
