Home > Products > Optical amplifier EDFA > dual power supply 48V/110V/220V 1550nm pon optical fiber amplifier 16*21dbm with WDM 1550nm catv 16 port EDFA price

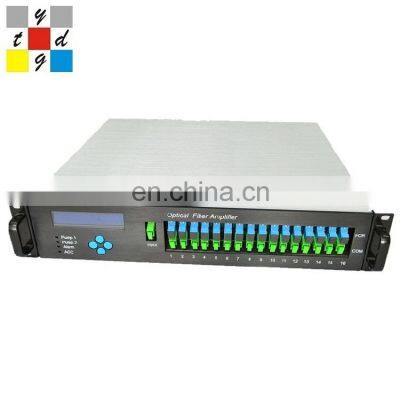

dual power supply 48V/110V/220V 1550nm pon optical fiber amplifier 16*21dbm with WDM 1550nm catv 16 port EDFA price
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Warranty 3 years high quality edfa catv 8 output ports edfa high power cable TV 1550nm optical amplifier price
-
Warranty 3 years High power cable tv edfa 32 port 1550nm optical catv amplifier price
-
yantai yatai 8 ports indoor 1550nm high power catv optical amplifier cable tv edfa
-
Yantai Yatai Warranty 3 years high quality 4 port 20dbm high power catv pon edfa optical fiber cable tv amplifier price
-
16 output port dbc dwdm wdm catv edfa 1550nm fiber optic amplifier
-
1550nm booster fiber catv optical amplifier edfa with wdm
Product Description
|
Parameter |
Symbol |
MIN |
TYP |
MAX |
UNITS |
||||||
|
Operating Wavelength |
λc |
1540 |
1550 |
1565 |
nm |
||||||
|
Saturated Output Power Note1 |
Po |
13 |
------ |
33 |
dBm |
||||||
|
Input Power |
Pi |
0 |
------ |
+10 |
dBm |
||||||
|
Gain |
G |
------ |
------ |
30 |
dB |
||||||
|
Noise Figure Note2 |
NF |
------ |
------ |
6 |
dB |
||||||
|
Output Power Stability |
ΔPo |
----- |
±0.05 |
±0.2 |
dB |
||||||
|
Input Isolator |
ISOi |
30 |
------- |
------ |
dB |
||||||
|
Output Isolator |
ISOo |
30 |
------- |
------ |
dB |
||||||
|
Input Pump Leakage |
PLi |
------- |
------- |
-35 |
dBm |
||||||
|
Output Pump Leakage |
PLo |
------- |
------- |
-45 |
dBm |
||||||
|
Return Loss |
RL |
------- |
------- |
-45 |
dB |
||||||
|
Polarization Dependent Gain |
PDG |
------ |
------- |
0.3 |
dB |
||||||
|
Polarization Mode Dispersion |
PMD |
------ |
------- |
0.5 |
ps |
||||||
|
Operating Temperature |
Tw |
-5 |
----- |
60 |
℃ |
||||||
|
Storage Temperature |
Ts |
-40 |
----- |
80 |
℃ |
||||||
|
Humidity Note |
------ |
10 |
------ |
90 |
% |
||||||
|
Power Supply(1) |
Vps |
170 |
|
264 |
VAC |
||||||
|
Power consumption |
P |
----- |
----- |
50 |
W |
||||||
| high power edfa inside pump power | |||
| 8 ports | 16 ports | 32 ports | |
| YATAI Brand | 10+10W | 10+10+5W | 20+20+20+20W |
| Other Brand | 10W | 10+10W | 10+10+10+10W |
|
