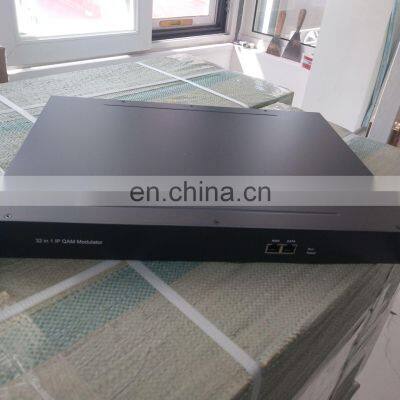

Digital Headend System 16/32 In 1 DVB C Modulator IP QUAM QAM Modulator

Input

Input

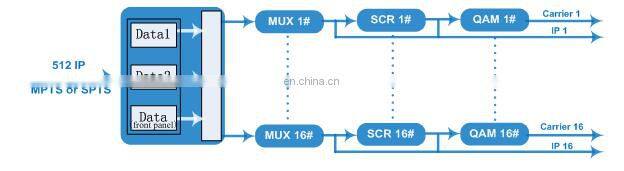

Max 512 IP input through 3 (front-panel Data port, Data 1 and Data 2) 100/1000M Ethernet Port (SFP interface optional). Each Data1 or Data 2 port can input max 512 IP, while front-panel Data port can input max 128 IP

Transport Protocol

TS over UDP/RTP, unicast and multicast, IGMP V2/V3

Transmission Rate

Max 840Mbps for each GE input

Mux

Input Channel

512

Output Channel

16

Max PIDs

180 per channel

Functions

PID remapping(auto/manually optional)

PCR accurate adjusting

PSI/SI table automatically generating

Scrambling

Parameters

Max simulscrypt CA

4

Scramble Standard

ETR289, ETSI 101 197, ETSI 103 197

Connection

Local/remote connection

Modulation

Parameters

DVB-C Modulator Sectioon

J.83A

Constellation : 16/32/64/128/256QAM

Bandwidth :8M

J.83B

Constellation : 64QAM/ 256QAM

Bandwidth :6M

QAM Channel

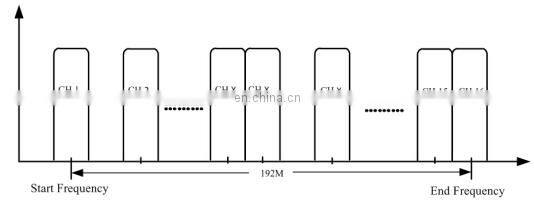

16 non-adjacent carrier

Modulation Standard

EN300 429/ITU-T J.83A/B(DVB-C)

Symbol Rate

5.0~7.0Msps, 1ksps stepping

FEC

RS (204, 188)

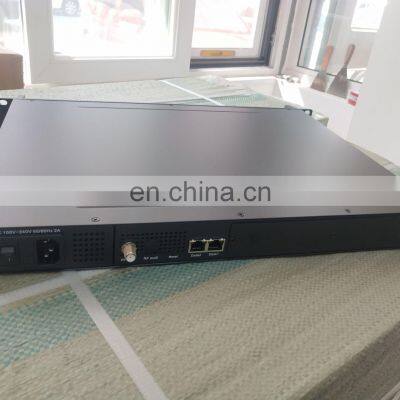

RF Output

Interface

1 F typed output port for 16 carriers, 75Ω impedance

RF Range

50~960MHz, 1kHz stepping

Output Level

-20dBm~+10dBm(87~117dbµV), 0.1dB stepping

MER

≥ 40dB

TS output

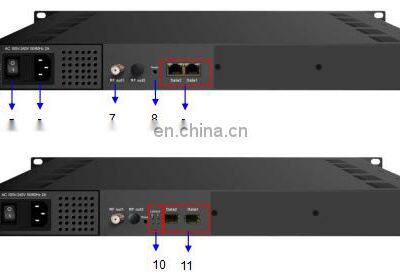

16 IP output over UDP/RTP/RTSP, unicast/multicast, 2 (Data1& Data2) 100/1000M Ethernet Ports

System

Network management software (NMS) supporting

General

Demission

420mm×440mm×44.5mm (WxLxH)

Temperature

0~45℃(operation), -20~80℃(storage)

Power Supply

AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
