Product Description

Description:
XFK-3 Automatic carton sealing strapping packaging line can automatically complete the processes of flapping & bottom sealing, flapping & carton sealing, conveying, turning the package by 90°, "#" shape strapping or multi-passes strapping.
Features:
1.Human-machine interface, superior PLC, LOGO control.
2. Digital manipulation to ensure easy parameter adjustment and steady operation.
3. Easy size changeover through manual adjustment.
4. With functions of auto stop, auto wakeup and multi-protection.
5. With flexible configurations which can be selected according to needs.
Application:
XFK-3 Automatic carton sealing strapping packaging line is suitable for circumstance where size of carton is not changed frequently to complete the processes of up & down sealing and # type strapping.
Configuration:
DZF-5050 Semiautomatic Flap Carton Sealer | 1set |
SJG-100/66 No-drive Roller Conveyor | 2sets (2×1m) |
FXJ-5050Z Auto Flap Carton Sealer | 1set |
SJGL-80/66 Chain Drive Roller Conveyor | 2sets (2×0.8m) |
KZW-8060/C High-table Automatic Strapping Machine | 2sets |
SJZGL-140/66 Vertical Turning Chain Drive Roller Conveyor | 1set |
Electric Cabinet | 1set |

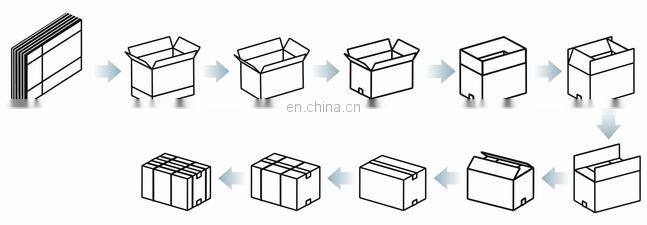

Workflow:
Parameters:
| XFK-3 |
Voltage (V/Hz) | AC 220/50 110/60 |
Gross Power (W) | 4100 |
Max. Carton Size (L×W×H) (mm) | 500×400×450 |
Min. Carton Size (L×W×H) (mm) | 180×260×130 |
Speed (m/min) | 16 |
Productive Capacity (pcs/h) | 600 |
Height of Table (mm) | 830 |
Adhesive Tape (mm) | BOPP,PVC Adhesive tape,width 60,76mm |
Available Strapping Belt (mm) | plastic strapping belt,width9~15 thickness0.5~1.1 |
Air Compressor (optional) | 2/3 litres at 5 bars |
External Dimensions (L×W×H) (mm) | “L” Type 7850×3500×1700 |
Net Weight (kg) | 950 |



Why choose us:
Zhejiang Top Export Brand
China packaging industry enterprises TOP100
China packaging machinery industry enterprises TOP30
Quality Control:
1.Each Heat Sealer Impulse Sealer with the Eligible Certification inside package
2.Shipping department checks each item before packing, totally avoiding manufacturing defects.
3.The main products have attained European CE certificat
Research And Development:
1.Obtained the national patent 39 items, invention patent 2 items!
2.Drafting up national standard and industry standard for "Plastic Bag Heating Sealer","Semiautomatic Strapping Machine" and "Skin Packaging Machine".
Marketing:
1.Hualian have more than 200 agent network all over the world
2.The products are sold to more than 100 countries around the world.
Q: Are you a factory or a trading company?
A: We are a factory manufacturing packaging&printing machines and we provide perfect OEM and after-sale service. We export machines to over 108 countries since 1995.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have video of every standard machine and can send to you by Email or other way you want.
Q: How can I pay my order?
A: We accept T/T, Western Union, Alibaba Online Payment to pay.
Q: Do you have any certificate?
A:We have passed ISO9001:2008,ISO14001,OHSAS18001 and obtained CE certificate and BSCI certificate from UL.
Q: Why the model name of your machine same as the machine form other company?
A: Since these machines have long history and are very popular in the market, it may be indeed possible that some machine models are similar as others. What we may think is that the machine model does not make big difference. And the criteria for machines may depend on the technical support and quality of the machines.
Q: When your company was founded?
A: Hualian Machinery Group Co., Ltd. was established in 1989.
Q:How about your warranty?
A: Our warranty is 12 months. Normally, the general after-sale service may be as below:
1) The technical support is permanent.
2) The paid spares parts could be provided at any time.
3) We have dealers in some countries to offer compensable service.
Q: Why your price is higher than many suppliers in China?
A: Hualian is old and famous brand of packing machines and we offer machines in high quality and consummate service from inquiry to after-sale.
