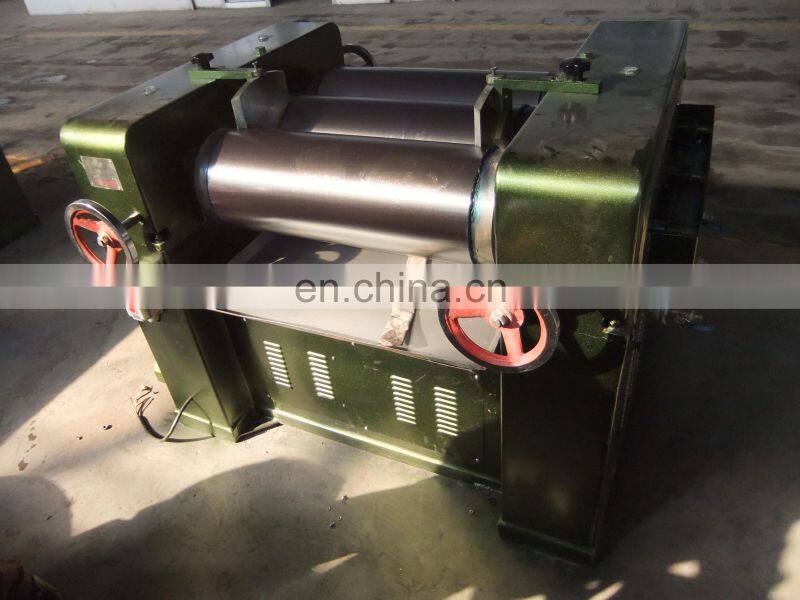

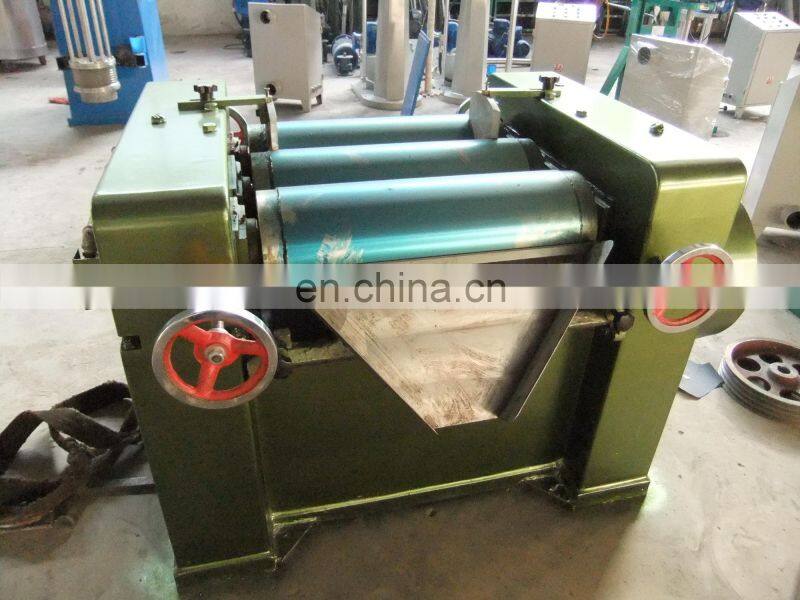

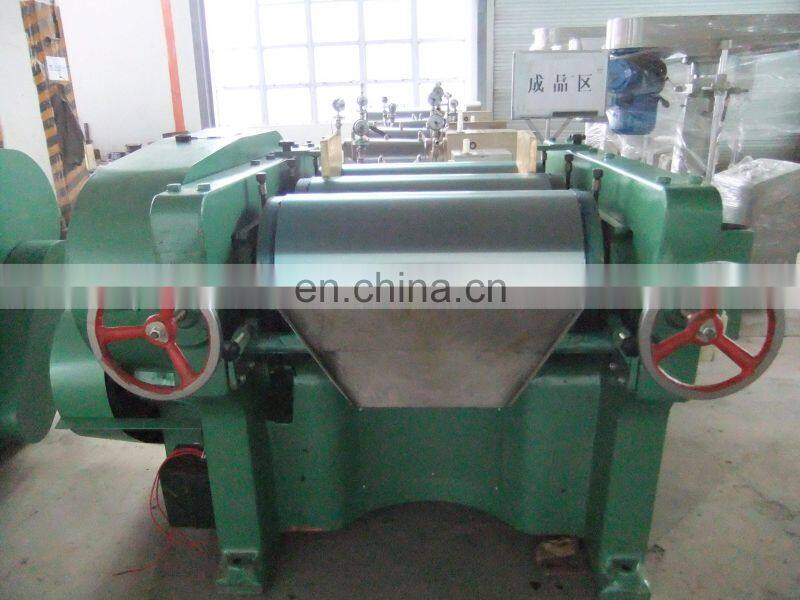

SM405 Three Roll Mill
- T/T Credit Card
You May Like
-
S200 Three Roll Mill for Ink
-
2018 China Good Supplier S-series 3 Roll Mill for Paints and Inks
-
S150 Ink Triple Roll Grinder
-
Shenzhen Litengda S65 Ink Lab Triple Roll Mill
-
China Hot Sale S260 3 Roll Mill for Paints and Inks
-
100L/200L/500L Capacity Hydraulic Lifting High Speed Basket Mill With Jacket Tank for Paint,ink,pigment,dyes
Product Description
1. Detailed Product Description:
SM405 three roll mill is specially applied in polishing the materials with dispersitivity, high viscosity, and fineness.The roller is poured by the chilling cast alloy iron. Crystal close,the intensity is high. The surface has the high degree of hardness and the wear-resisting. It is equipped with the cooling system.We also produce the electric heating,steam heating type 3-rollers mill and each kind of specification 3-rollers mill such as granite roller, ceramic roller, never rusty roller.
The machine effects in polishing through extruding and wearing in three roll.
The miller is equipped with three rolls in horizontal level,with the roll extruding and milling in different speed,the material is grinded normally for two times and hard or high viscosity material for more times.The finished granularity comes to 2-10 um(testing with fineness scraper.
2. Technical parameters:
Model | SM405 three roll mill | ||
| Diameter | mm | Φ405 | |
| Length | mm | 810 | |
| Speed | slow | r/min | 15 |
| Mid | r/min | 45 | |
| Fast | r/min | 135 | |
| Motor | Type | Y180L-6 | |
| Power | kw | 15 | |
| Speed | r/min | 970 | |
| Rotio of speed | 1:3:9 | ||
| Dimension(L×W×H) | mm | 2150×1980×1250 | |
| Weight | kg | 5200 | |
