Horizontal Sand Mill For Water-Based Printing Ink , Pesticide SC, Pigment

Horizontal Sand Mill For Water-Based Printing Ink , Pesticide SC, Pigment photo-1
Horizontal Sand Mill For Water-Based Printing Ink , Pesticide SC, Pigment photo-2
Horizontal Sand Mill For Water-Based Printing Ink , Pesticide SC, Pigment photo-3
Horizontal Sand Mill For Water-Based Printing Ink , Pesticide SC, Pigment photo-4
Horizontal Sand Mill For Water-Based Printing Ink , Pesticide SC, Pigment photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2009
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

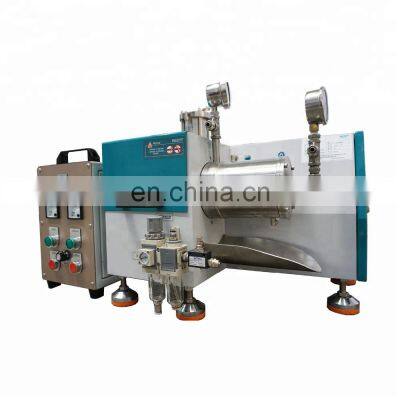

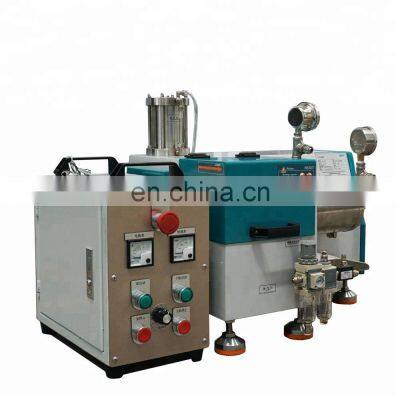

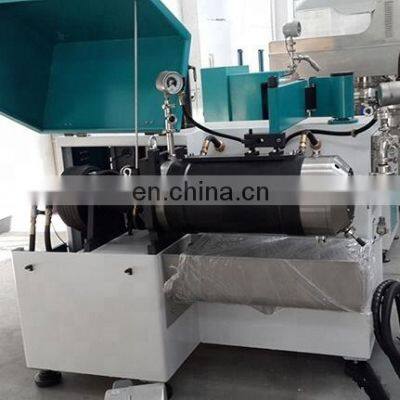

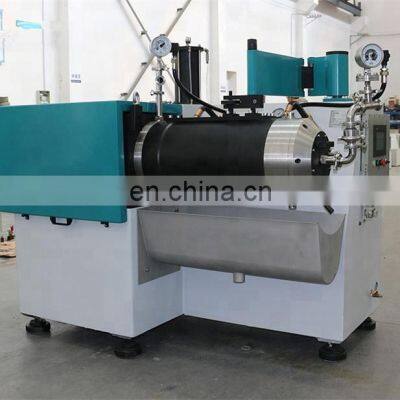

 Horizontal Sand Mill For Water-Based Printing Ink , Pesticide SC, Pigment



Features:

1. Patent grinding disc structure of the grinding bead mill has a bigger action area for the grinding media. Bigger shearing force and higher efficiency.
2. Double cooling systems for the chamber and end cap. The dissolvent which is compatible with grinding material can be added as cooling agency to reduce the production loss because of the leakage.
3. Feeding device: USA imported pneumatic diaphragm pump or frequency control gear pump is optional as clients’ requirements. Feeding and discharging tubes are imported USA with good solvent resistant property.
4. High security property. The grinding bead mill will automatically stop working when there is water shortage, air pressure shortage or over-high material temperature.
5. Grinding chamber and rotor is made of high wear resistant alloy steel which has no metallic pollution and discoloring. PU and ceramic material are optional according to actual condition.
6. Reasonable design for inner and outer structure allows stable performance with no vibration and noise.
7. Ceramic and PU material are optional.
8. Frequency control and PLC are optional
9. With CE&ISO9001:2008 qualification.
10. Dynamic or static separating system for different material to ensure smooth discharging.

Model
Volume (L)
Motor Power (KW)
Medium Size (mm)
Weight (KG)
Dimension (mm)
SX-10AJ
10
15
0.4-0.6
600
1200x875x1150
SX-30AJ
30
30
0.4-0.6
1000
1350x850x1450
SX-60AJ
60
37
0.4-0.6
1500
2000x900x1800
SX-100AJ
100
75
0.4-0.6
1600
2300x900x2000
SX-300AJ
300
135
0.4-0.6
4500
3000x1100x25

00

Horizontal Sand Mill For Water-Based Printing Ink , Pesticide SC, Pigment

Packaging & Shipping



 Horizontal Sand Mill For Water-Based Printing Ink , Pesticide SC, Pigment

Our Services

 Horizontal Sand Mill For Water-Based Printing Ink , Pesticide SC, Pigment

Company Information



 Horizontal Sand Mill For Water-Based Printing Ink , Pesticide SC, Pigment
