PE PP pipe extrusion machine /plastic pipe extrusion machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
50mm to 160mm PVC pipe extrusion line machine
-
20~200mm PE pipe making machine total production line price
-
PVC Electrical Conduit Plant/PVC Double Pipe Line/PVC Machines Extruder
-
PVC Electric Conduit Pipe Making Machine Water Pipe Production Line Extruding machine
-
20-63mm plastic upvc pvc pipe Electric wire extrusion pvc pipe making machine
-
90mm supplier HDPE pipe making machine ppr water pipe manufacturing machine
Product Description
Jiangsu Xinrongplas Machinery Co., Ltd.
Our main products are: plastic pipe extrusion line and plastic recycling machine.
The main products are popular in the domestic market,such as the East China market,Southwest market,Northeast market and Central China market.The products are also exported to international market,including Russia,Australia, Southeast Asia,Middle East,East Europe.Africa and other countries.
The main products are popular in the domestic market,such as the East China market,Southwest market,Northeast market and Central China market.The products are also exported to international market,including Russia,Australia, Southeast Asia,Middle East,East Europe.Africa and other countries.
Final Products
PE Pipe.
■ Good hygienic performance: no heavy metal salt stabilizer is added during PE pipe processing, the material is non-toxic, no scaling layer, and no bacteria breeding, which solves the hidden danger of secondary pollution of urban drinking water.
■ Excellent corrosion resistance: Except for a few strong oxidants, it can withstand the erosion of a variety of chemical media; no electrochemical corrosion.
■ Long service life: PE pipe can be used safely for more than 50 years under rated temperature andpressure .
■ Better impact resistance: PE pipe has good toughness and high impact resistance, and heavy objects directly
pass through the pipe, which will not cause the pipe to be broken.
■ Long service life: PE pipe can be used safely for more than 50 years under rated temperature andpressure .
■ Better impact resistance: PE pipe has good toughness and high impact resistance, and heavy objects directly
pass through the pipe, which will not cause the pipe to be broken.
More Different Pipe Products
PE Pipe
PVC Pipe
PPR Pipe
Corrugated Pipe
PPR Fiberglass Pipe
Hollow Wall Winding Pipe
If you want to know more about Plastic Pipe Extrusion Line, inquiry us now!
Products Description
PE Pipe Extrusion Line.
Through long time and continuous innovation and testing, XinRong has developed the new generation PE pipe extrusion line with high automation, high speed, high reliability, low energy consumption. Our PE pipe extrusion can process wide range of material, including HDPE, LDPE, PP, PPR, PPH, PPB, MPP, PERT, etc.
Our PE pipe extrusion line can produce from size of minimum 16mm to 2000mm with single layer or multi-layer.
Single Screw Extruder.
1.1 Simens Touch Screen and PLC
1.2 Spiral Structure of Barrel
1.3 Special Design of Screw
1.4 Air Cooled Ceramic Heater
1.5 High Quality Gearbox
Based on 33:1 L/D ratio for screw design, we have developed 38:1 L/D ratio. Compared with 33:1 ratio, 38:1 ratio has advantage of
100% plasticization, increase output capacity by 30%, reduce power consumption up to 30% and reach almost linear extrusion
performance.
1.2 Spiral Structure of Barrel
1.3 Special Design of Screw
1.4 Air Cooled Ceramic Heater
1.5 High Quality Gearbox
Based on 33:1 L/D ratio for screw design, we have developed 38:1 L/D ratio. Compared with 33:1 ratio, 38:1 ratio has advantage of
100% plasticization, increase output capacity by 30%, reduce power consumption up to 30% and reach almost linear extrusion
performance.

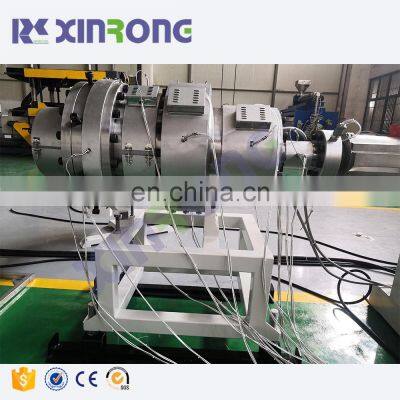

Extrusion Die Head
2.1 Moving Device of Die Head
2.2 Die Head Rotary Device
2.3 Heat Exhausting Device
2.4 Cooling Device for Core
Extrusion die head apply spiral structure, each material flow channel is placed evenly. Each channel is after heat treatment and
mirror polishing to ensure material flow smoothly. Die head structure is compact and also provide stable pressure, always from 19
to 20Mpa. Under this pressure, pipe quality is good and very little effect on the output capacity. Can produce single layer or
multi-layer pipe.
2.2 Die Head Rotary Device
2.3 Heat Exhausting Device
2.4 Cooling Device for Core
Extrusion die head apply spiral structure, each material flow channel is placed evenly. Each channel is after heat treatment and
mirror polishing to ensure material flow smoothly. Die head structure is compact and also provide stable pressure, always from 19
to 20Mpa. Under this pressure, pipe quality is good and very little effect on the output capacity. Can produce single layer or
multi-layer pipe.
Vacuum Tank
3.1 Strong Cooling for Calibrator
3.2 Better Support for Pipe
3.3 Silencer
3.4 Pressure Relief Valve
Vacuum tank is used to shape and cool pipe, so as to reach standard pipe size. We use double-chamber structure. First chamber is
in short length, to ensure very strong cooling and vacuum function. As calibrator is placed in the front of first chamber and pipe
shape is formed mainly by calibrator, this design can ensure quick and better forming and cooling of pipe.
3.2 Better Support for Pipe
3.3 Silencer
3.4 Pressure Relief Valve
Vacuum tank is used to shape and cool pipe, so as to reach standard pipe size. We use double-chamber structure. First chamber is
in short length, to ensure very strong cooling and vacuum function. As calibrator is placed in the front of first chamber and pipe
shape is formed mainly by calibrator, this design can ensure quick and better forming and cooling of pipe.
Cooling Tank
4.1 Pipe Clamping Device
4.2 Water Tank Filter
4.3 Quality Spray Nozzle
4.4 Pipe Support Adjusting Device
4.5 Pipe Support Device
Cooling tank is used to cool pipe further.
4.2 Water Tank Filter
4.3 Quality Spray Nozzle
4.4 Pipe Support Adjusting Device
4.5 Pipe Support Device
Cooling tank is used to cool pipe further.
Haul off unit
5.1 Pipe Clamping Device
5.2 Water Tank Filter
5.3 Quality Spray Nozzle
5.4 Pipe Support Adjusting Device
5.5 Pipe Support Device
Haul off unit provides sufficient traction force to pull pipe stably. According to different pipe sizes and thickness, our company
will customize traction speed, number of claws, effective traction length. To ensure match pipe extrusion speed and forming speed, also avoid deformation of pipe during traction.
5.2 Water Tank Filter
5.3 Quality Spray Nozzle
5.4 Pipe Support Adjusting Device
5.5 Pipe Support Device
Haul off unit provides sufficient traction force to pull pipe stably. According to different pipe sizes and thickness, our company
will customize traction speed, number of claws, effective traction length. To ensure match pipe extrusion speed and forming speed, also avoid deformation of pipe during traction.

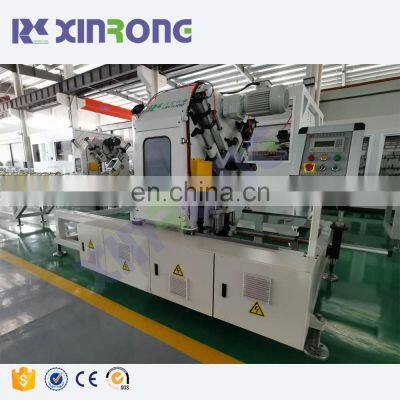

Cutter
6.1 Universal Clamping Device
6.2 Central Height Adjustment
6.3 Saw and Blade Interchangeable
Cutter controlled by Siemens PLC, working together with haul off unit to have precise cutting. Customer can set the length of pipe
they want to cut. Multi-feed-in actions for the accomplishment of one cutting process (protect blades and saws, prevent from blade
and saws stuck for thick pipe and cut face of pipe is smooth).
6.2 Central Height Adjustment
6.3 Saw and Blade Interchangeable
Cutter controlled by Siemens PLC, working together with haul off unit to have precise cutting. Customer can set the length of pipe
they want to cut. Multi-feed-in actions for the accomplishment of one cutting process (protect blades and saws, prevent from blade
and saws stuck for thick pipe and cut face of pipe is smooth).
Stacker
7.1 Pipe surface protection
7.2 Central Height Adjustment
To support and unload pipes. Length of stacker can be customized.
7.2 Central Height Adjustment
To support and unload pipes. Length of stacker can be customized.
Coiler
8.1 Use of servo motor
To coil pipe into roller, easy for storage and transportation. Usually used for pipe below size 110mm. Have single station and
double station for choice.
To coil pipe into roller, easy for storage and transportation. Usually used for pipe below size 110mm. Have single station and
double station for choice.
Product Paramenters
Model | Pipe Range (mm) | Output Capacity (kg/h) | Main Motor Power (kw) |
PE63 | 16 - 63 | 150 - 300 | 45 - 75 |
PE110 | 20 - 110 | 220 - 360 | 55 - 90 |
PE160 | 50 - 160 | 300 - 440 | 75 - 110 |
PE250 | 75 - 250 | 360 - 500 | 90 - 132 |
PE315 | 90 - 315 | 440 - 640 | 110 - 160 |
PE450 | 110 - 450 | 500 - 800 | 132 - 200 |
PE630 | 250 - 630 | 640 - 1000 | 160 - 250 |
PE800 | 315 - 800 | 800 - 1200 | 200 - 355 |
PE1000 | 400 - 1000 | 1000 - 1500 | 250 - 355 |
PE1200 | 500 - 1200 | 1200 - 1800 | 355 - (250x2) |
PE1600 | 710 - 1600 | 1800 - 2400 | (250x2) - (355x2) |
PE2000 | 800 - 2000 | 2400 - 3000 | (355x2) - (355x2+160) |
Production Line Parameter (for reference only, can be customized)
Recommend Products
Hollow Wall Winding Pipe Making Machine
Corrugated Pipe Machine
Plastic Pelletizing Machine
PP PE Film&Woven Bag Washing & Recycling Line
Why Choose Us
Jiangsu Xinrongplas Machinery Co., Ltd.
Jiangsu Xinrongplas was established in 1996. The production experience is mature and rich. Among them, it has been exporting for more than 20 years, and more than 100 countries have exported. The annual export turnover is about 15 million US dollars. Our company's production base covers more than 50,000 square meters. , Modern office and production room more than 35,000 square meters, with experienced high-quality staff team, first-class equipment, perfect and effective quality assurance system, advanced and complete testing equipment.
Workshop.
We know the quality is the life of our company. Our company insists to manufacture all machine units by ourselves in order to control quality strictly by our quality inspectors. To implement this concept, we have built our own tooling and CNC workshop. Even if some parts from our certified supplier, our quality inspector will check these parts before entering into our warehouse.
Warmly welcome to visit our workshop, and sincerely hope we can have long term cooperation in near future!
Warmly welcome to visit our workshop, and sincerely hope we can have long term cooperation in near future!
Certificates & Patents.
International certification, National Certificate of equipment verification, and more than 30 invention patents.
Verification Certificates of equipments: ISO; CE Certificate , SGS, COC, TUV National Certificate of equipment
verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration,etc.
Verification Certificates of equipments: ISO; CE Certificate , SGS, COC, TUV National Certificate of equipment
verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration,etc.
Exhibitions.
Xinrong Team.
After-Sales Team.
FAQ
1) Are we manufacture or trade company?
We are manufacture,have 24 years' experiences in this field.
2) What kind machines we produce?
Our factory produce plastic pipes machines, plastic recycling machine.
3) What kind payment we accept?
Payment term like T/T, L/C.
4) How long we need to produce the machines?
According to different machine model and configuation, we need different time, like 40 days to 2 months.
5) Will the machine be delivered on time ?
Sure,we will deliver your machine up recieving the balance payment.
6) How about the machine quality?
Our machine quality is reliable.We select every parts on the machine strictly and production and installation is done by
professional workers.We test the each production step for the best machine.
7) How about the price?
You know ,the goods counts the the price.We select the best machine raw material such as siemens electrics,schneider and ABB
etc.We will provide you the best machine with best price.
8) How long is your machine’s guarantee time?
One year
9) What can you provide for after sale service?
We can send engineers to your factory for installation and training.also 24 hours on-line service for you.
We are manufacture,have 24 years' experiences in this field.
2) What kind machines we produce?
Our factory produce plastic pipes machines, plastic recycling machine.
3) What kind payment we accept?
Payment term like T/T, L/C.
4) How long we need to produce the machines?
According to different machine model and configuation, we need different time, like 40 days to 2 months.
5) Will the machine be delivered on time ?
Sure,we will deliver your machine up recieving the balance payment.
6) How about the machine quality?
Our machine quality is reliable.We select every parts on the machine strictly and production and installation is done by
professional workers.We test the each production step for the best machine.
7) How about the price?
You know ,the goods counts the the price.We select the best machine raw material such as siemens electrics,schneider and ABB
etc.We will provide you the best machine with best price.
8) How long is your machine’s guarantee time?
One year
9) What can you provide for after sale service?
We can send engineers to your factory for installation and training.also 24 hours on-line service for you.
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Contact Us
- Jiangsu Xinrong Science & Technology Development Co., Ltd.
Product Categories
| Auxiliary machines | Meltblown machine | Pipe Extrusion Lines | Plastic Recycling And Granulating Line |
| Profile Extrusion Lines | Sheet/board Extrusion Lines | Ungrouped |
New Products
-
PE pipe extrusion line making machine extruder line
-
20~500mm HDPE PP PE Plastic Pipe single screw Extrusion Production Machine Line with price
-
160mm supplier HDPE pipe making machine ppr pipe extrusion equipment /making line
-
400mm supplier HDPE pipe making machine ppr pe polyethylene pipe machinery
-
110mm supplier HDPE pipe making machine ppr pipe manufacturing machine
-
160mm supplier HDPE pipe making machine ppr pipe making processing extruder making equipment
-
16-40 mm PVC electric wire pipe extrusion line machine
-
HDPE pipe making machine 20-110mm PPR water pipe making machine for Uzbekistan
-
big diameter upvc pipe production machine line
-
Double output small PVC water pipe extrusion line
-
125mm HDPE pipe making machine China equipment of processing PP pipe
-
PVC double pipe extruder machine/ pipe production line
-
China supplier 110mm HDPE gas and water supply pipe manufacturing machine
-
China supplier HDPE pipe making machine HDPE pvc pipe making machine pipe cutting machine
-
16-63mm HDPE PP PPR pipe production line
-
500mm pe gas pipe extrusion machine pe hdpe corrugated pipe extrusion machine
-
220mm pe gas pipe extrusion machine pe china continuous extrusion machine
-
110mm pe gas pipe extrusion machine pe hdpe pipe extrusion molding make machine
-
315mm pe gas pipe extrusion machine pe hdpe automatic extrusion machine
-
125mm pe gas pipe extrusion machine pe extrusion machine hdpe pipe line
-
110mm pe gas pipe extrusion machine polythene extrusion machine
-
200mm pe gas pipe extrusion machine hdpe pvc tube extrusion machinesmall tube extrusion machine
-
250mm pe gas pipe extrusion machine hdpe hdpe pp pipe extrusion machine
-
200mm pe gas pipe extrusion machine hdpe plastic extrusion making machine
Popular Searches
- plastic extruder
- extrusion machine
- twin screw extruder
- aluminum tube production line
- Foam Board Equipment
- production line
- extruding machine
- Production Equipment
- extrusion line
- Belt Making Machinery
- Extruder Machine
- Pet Strap Making Machine
- Pet Belt Making Machine
- Bubble Film Making Machine
- Cable Manufacturing Equipment
- plastic extrusion
- plastic machinery
- extruding equipment
- wire extruder
- cable extruding line
- Cable Extruder Machine
- Cable Manufacturing Machine
- decorative line
- Extrusion Production Line
- Engineering Lab Equipment
- eps machinery
- cement production line
- pipe making machine
- pipe production line
- Board Making Machine
Recommended Products
- Metal-ceramic Composit Pelletizer Knife for PP PE Plastic Granule Extruding
- Flexible Pelletizer Knife Holder for Underwater Cutting Plastic Granules Line Carrier for Pelletizer Knives
- Polypropylene Polyethylene Granules Manufacturing Die Plate Spare Part for Underwater Pelletizing Extruder
- ABS HIPS PMMA PC Sheets Boards Plates Extrusion Line Extruder Machine
- ABS HIPS PMMA PC Sheets Boards Plates Extrusion Line Extruder Machine
- ABS HIPS PMMA PC Sheets Boards Plates Extrusion Line Extruder Machine
- ABS HIPS PMMA PC Sheets Boards Plates Extrusion Line Extruder Machine
- PMMA HIPS ABS Plastic Sheet Extrusion Machinery/Acrylic Sheet Making Machine
- PMMA Transparent Plate Production Line/PC Sheet Extrusion Machine/Plastic Machinery
- Transparent Frosted Plate Processing Machine/Advertising Acrylic Plate Production Equipment
- ABS HIPS PMMA PC Sheets Boards Plates Extrusion Line Extruder Machine
- Laser printer for PE pipe production line
Find Similar Products By Category
- Manufacturing & Processing Machinery > Plastic Machinery > Plastic Extruder
- Please Enter your Email Address
- Please enter the content for your inquiry.
We will find the most reliable suppliers for you according to your description.
Send Now
Jiangsu Xinrong Science & Technology Development Co., Ltd.
AIBot OnlineThis conversation is AI-generated. Contact manufacturer before transaction to confirm info.
-
sales
Hi there! Welcome to my shop. Let me know if you have any questions.
Your message has exceeded the limit.
- Contact supplier for lowest price
- Customized Request
- Request Sample
- Request Free Catalogs
Your message has exceeded the limit.
-
Purchase Quantity
-
*Sourcing Details
Your inquiry content must be between 10 to 5000 characters.
-
*Email
Please enter Your valid email address.
-
Mobile
