Product Description
Single-layer PP PS Sheet Plastic Extrusion Machine, Plastic Sheet Extrusion Line
Specifications
Material: PP, PS, PE sheet for thermoforming machine and vacuum forming machine
Note pls:Both Vertical and Inclined Calendar Rollers are avalilabe.
1,The Sheet Extrusion unit is a combination of Extruder,three roll calender,haul-off unit,winder(including waste sheet winder) and electric control cabinet.
2,The main parts, such as screw, barrel, screen exchanger, T-die adopt superior alloy steel (38CrMoAIA) with high hardness, strong corrosions resistance and long operating life after nitrogen treatment.
3,The screw adopts big L/D Ratio,equal plasticization and high plasticizing capability.
4,Non-stop fast screen changer with double-sieve, controlled by hydraulic device, the operation is convenient and imporve the production efficiency,
5,The Calender, hual off unit and winder adopt integration design, fine appearance, convenient and fast installation and adjustment,
6,The machine frame adopts square steel,to make sure the machine works stably in high speed. The motor is connected with gear box directly,improve production efficiency and lower energy consumption.
Main Technical Parameters:
| Model | FJL-PC-90-A/B | FJL-PC-100-A/B | FJL-PC-105-A/B | FJL-PC-110-A/B | FJL-PC-115-A/B | FJL-PC-120-A/B |
| Raw Material | PP,HIPS,PE | |||||
| Sheet Thickness | 0.3-2mm | |||||
| Layer | 1 | |||||
| Capacity | 100kg/h | 150kg/h | 175kg/h | 200kg/h | 225kg/h | 250kg/h |
| Screw Dia. | 90mm | 100mm | 105mm | 110mm | 115mm | 120mm |
| L/D Ratio | 32:1 | |||||
| Roller Dia. | 300mm | 320mm | 350mm | 350mm | 400mm | 450mm |
| Main Motor Power | 37kw | 45kw | 45kw | 55kw | 75kw | 90kw |
| Overall Power | 90kw | 100kw | 110kw | 120kw | 135kw | 160kw |
| Weight | 5.5T | 6T | 6.5T | 7T | 7.5T | 8T |
| Power Supply | 380V/50HZ/3P | |||||

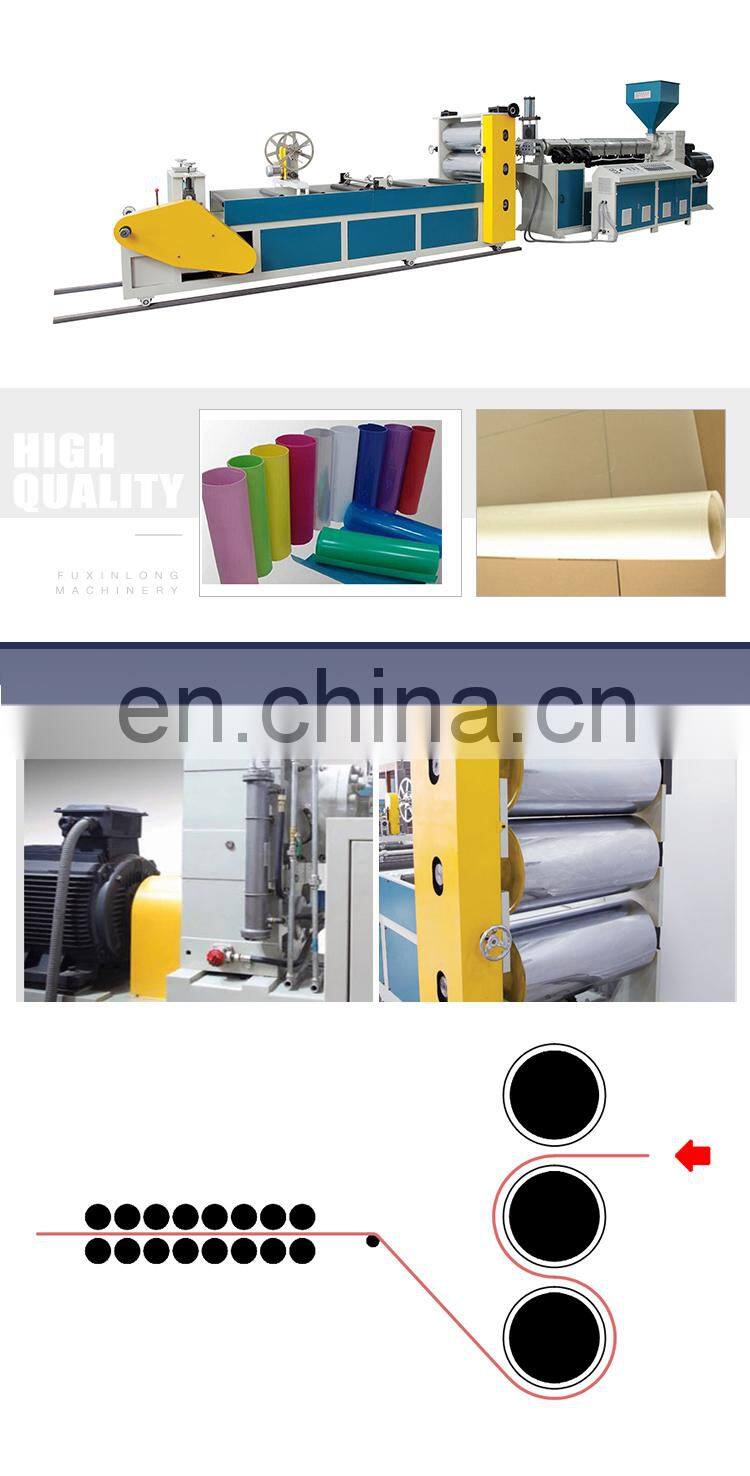

Parts of Machine Pictures:
