Plastic Cup Making Machine Price/plastic Cup Lid Making Machine
- T/T Credit Card
You May Like
-
Plastic Cups And Plate Making Machine, Automatic Plastic Container Making Machine
-
Disposable Plastic Plates Tray Making Machine
-
Plastic Food Container Making Machine /plastic Disposable Box Making Machine
-
Plastic Drinking Cup/plastic Tea Cup /plastic Food Storage Containers Making Machine
-
Cup Lid Forming Machine,plastic Container Forming Machine,plastic Dome Cover Forming Machine
-
ps Fast Food Box Plastic Vacuum Forming Making Machine
Product Description
Plastic tea cup making machine, disposable plastic plates making machine, disposable products making machine
Machine Parts

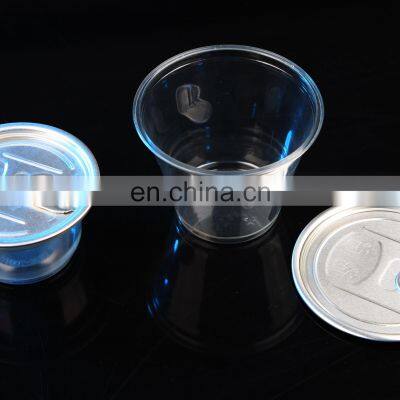

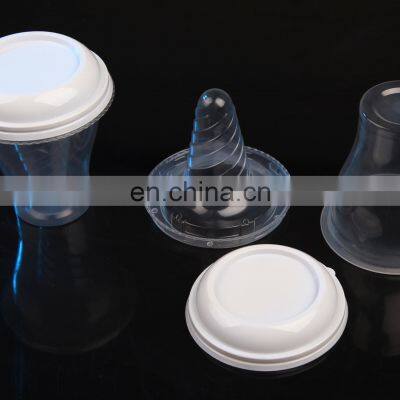

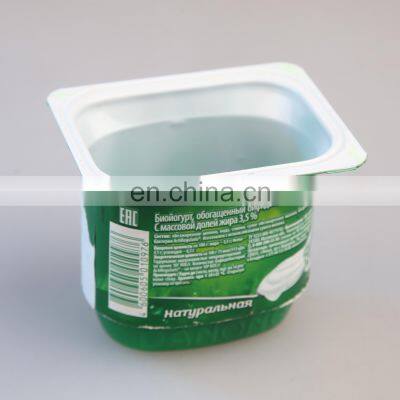

Samples
Usage

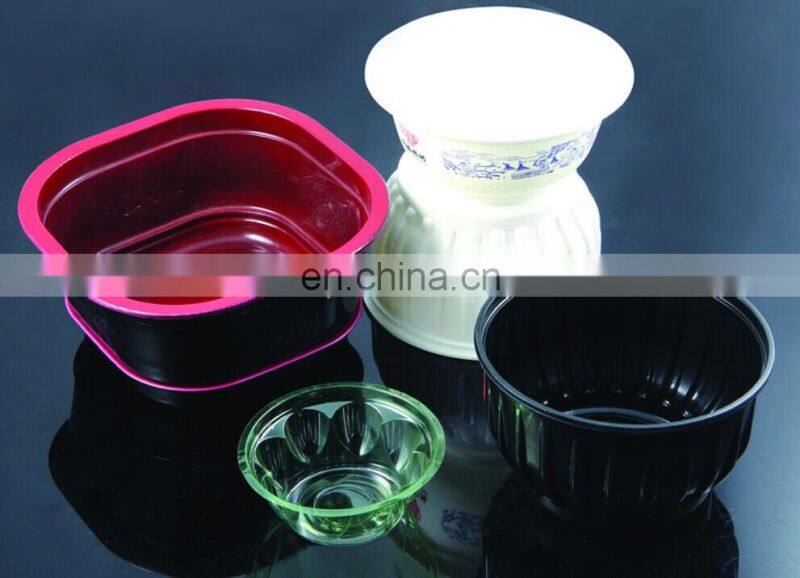

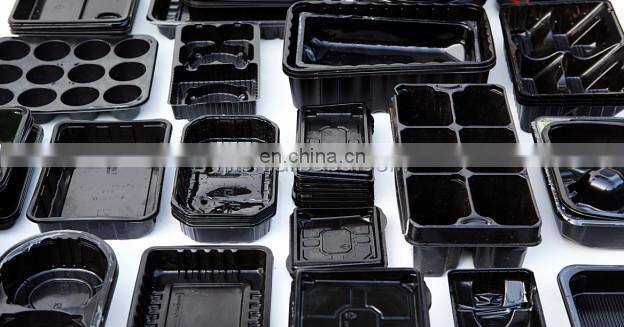

The machine mainly used for making different kinds of plastic cups, such as water drinking cups, jelly cups, yogurt cups, coffee cups, it can also make disposable bowls, lids, dishes, trays and ect.
Major construction features
The sheet feeding pin chain is controlled by servo motor . The feeding length is more precise and it can be adjusted in parameter setting through touch screen.
The stretching of plug inside of up mould is controlled by servomotor.
The operation is controlled by PLC with touch screen.
Adopt four pillars to fix the mould.
Adopt hydraulic system to drive the movement of the mould.
Fill oil automatically to lubricate mechanism movement at certain time.
Temperature control modules to control each temperature area.
Machine production process started from sheet feeding, heating, stretching, forming and in-mould cutting in one stroke.
Machine frame adopts square steel, more stable and serviceable.
Convenient operation, reliable performance, low noise and high quality.
Main Technical Parameters
|
Model |
FJL-SZ-680 I |
FJL-SZ-680 II |
FJL-SZ-750 I |
FJL-SZ-750 II |
|
|
Max. Forming Area/ |
650×320mm |
750×420mm |
|||
|
Max. No-Load Speed |
35 Cycles/min |
||||
|
Running Pattern |
Hydraulic |
||||
|
Oil Pump Motor Power |
5.5KW(Double Pump) |
15KW(Double Pump) |
|||
|
Cutting Pattern |
In mould automatic |
||||
|
Feeding Pattern |
Motor with Encode |
Servomotor
|
Motor with Encode |
Servomotor
|
|
|
Stretching Pattern |
Air Cylinder
|
Servomotor
|
Air Cylinder
|
Servomotor
|
|
|
Sheet Materia |
PP.PS.HIPS.PET.PVC |
||||
|
Sheet Thickness Range |
0.2-2mm |
||||
|
Max. forming Depth, Sample Height |
120mm |
150mm |
|||
|
Max. Sheet Roll Dia |
800mm |
||||
|
Heater arrangement |
(120Pieces,650W)Top+Bottom Heating With IR Cerami cHeater
|
(152Pieces,650W)Top+Bottom Heating With IR Cerami cHeater
|
|||
|
Temperature Controller & Thermocouple |
PID K-Type |
||||
|
Electrical Consumption |
40KW/h |
45KW/h |
50KW/h |
55KW/h |
|
|
Overall Power |
100KW |
110KW |
120KW |
130KW |
|
|
Air Consumption |
1.5-1.8m3/min, 0.6-0.8 Mpa |
2-2.5m3/min, 0.6-0.8 Mpa |
|||
|
Dimension |
L3650×W1950×H2500mm |
L4000×W1730×H2600mm |
|||
|
Weight(T) |
4.4T |
4.5T |
4.8T |
5T |
|
|
Power Supply |
380V/50HZ Three phase four wires |
||||
