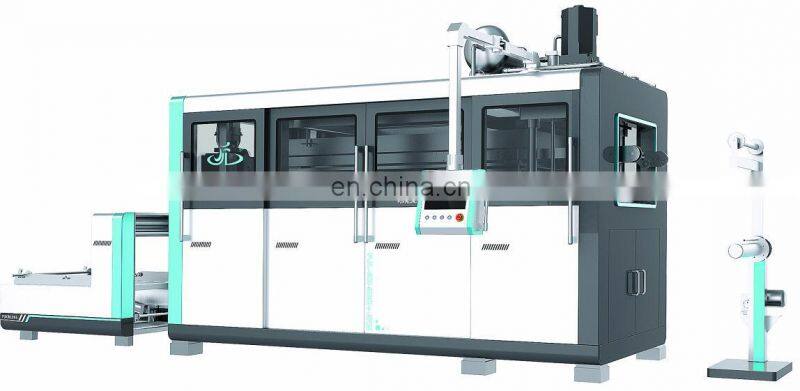

Efficient Disposable Plastic Water Cup Production Line Thermoforming Machine
Machine video link:
FJL-SZ-750I Flower Pot Thermoforming Machine with Robot Stacker video link:
/watch?v=XVLRDYWg7mU&index=2&list=PLx8xCBHUWD-fakKVj00cN5w0v4q92r4Ku
/watch?v=bMf9nYo41gg&list=PLx8xCBHUWD-fakKVj00cN5w0v4q92r4Ku&index=1
You Can Send Your Message To Us >>Machine specification:
Usage

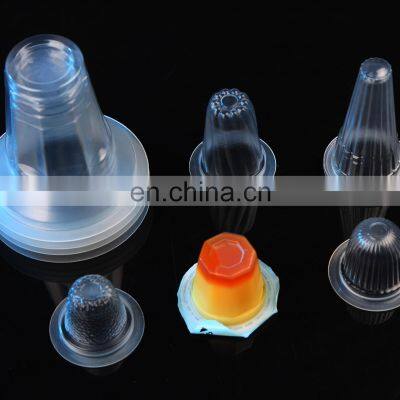

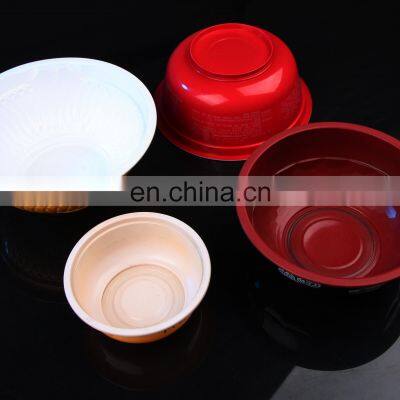

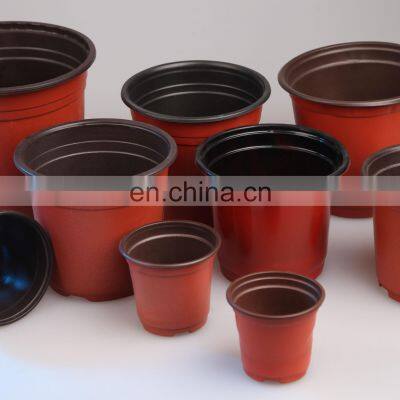

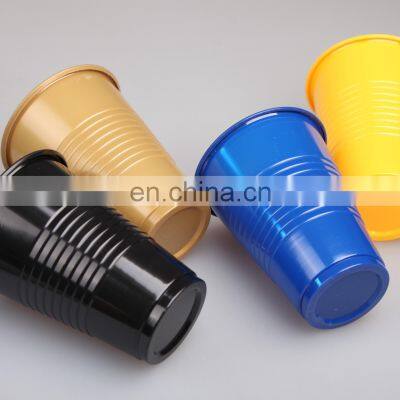

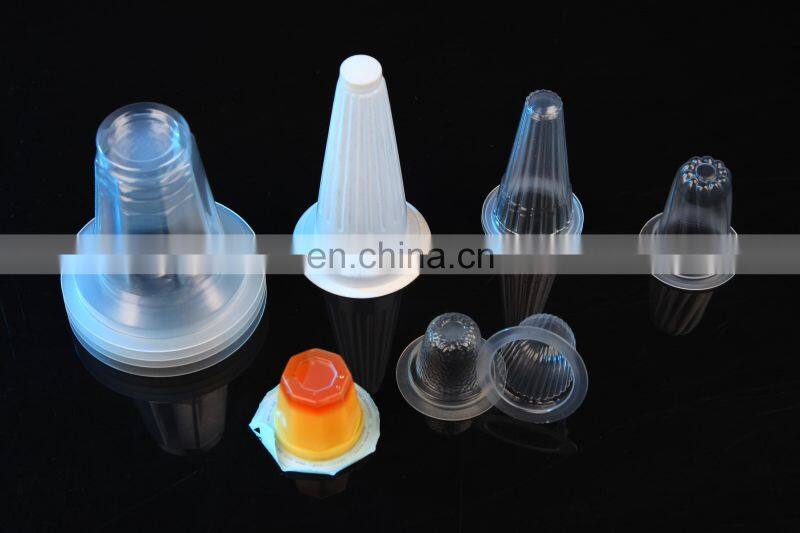

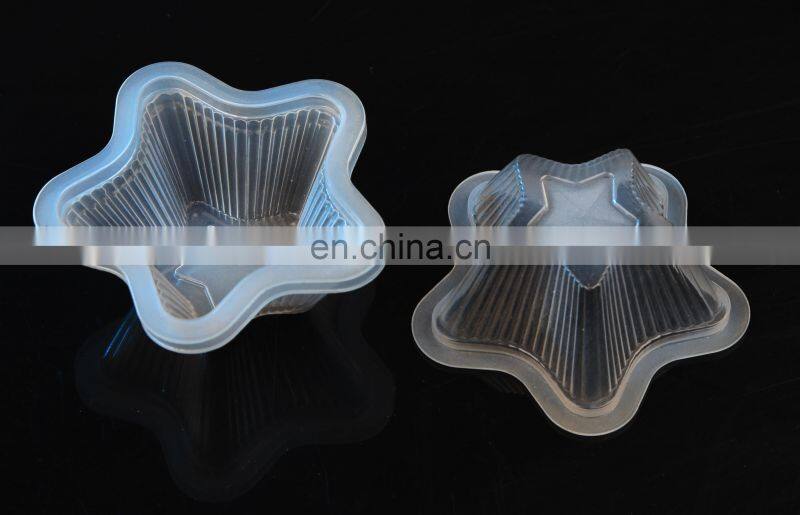

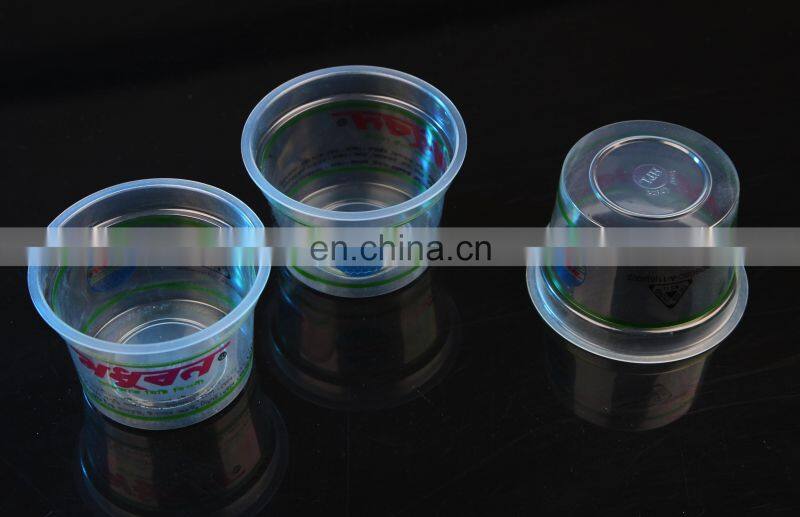

This series mainly used for making different kinds of plastic cups,such as water drinking cups,jelly cups,yoghurt cups,coffee cups.It can also make flower pots,disposable bowls,lids,trays,plates and etc.
Major Construction Feature
l The operation is controlled by PLC with touch screen.
l Adopt four pillars to fix the mold.
l Fill oil automatically to lubricate mechanism movement at certain time.
l Temperature control modules to control each temperature area
l Machine production process started from sheet feeding,heating,stretching,forming,in-mould cutting in one stroke.
l Convenient operation,outstanding performance,low noise and high quality.
Main Technical Parameters
| Model | FJL-SZ-680I | FJL-SZ-680II | FJL-SZ-750I | FJL-SZ-750II |
| Max.Forming Area | 650x320mm | 750x420mm | ||
| Max.No-Load Speed | 35Cycles/min | |||
| Running Method | Hydraulic | |||
| Oil Pump Motor Power | 7.5KW(Double Pump) | 15KW(Double Pump) | ||
| Cutting Method | Cutting in Mold | |||
| Feeding Pattern | Motor With Encode | Servomotor | Motor With Encode | Servomotor |
| Stretching Method | Motor | Servomotor | Motor | Servomotor |
| Suitable Material | PP,PS,HIPS,PET,PVC | |||
| Sheet Thickness Range | 0.2-2mm | |||
| Max.Forming Depth | 120mm | 150mm | ||
| Sheet Roll Dia. | 800mm | |||
| Heater Arrangement | Top + Bottom Heating With IR Ceramic Heater | |||
| Electrical Consumption | 40kw/h | 45kw/h | 50kw/h | 55kw/h |
| Overall Power | 100kw | 110kw | 120kw | 130kw |
| Air Consumption | 1.5-1.8m³/min,0.6-0.8Mpa | 2-2.5m³/min,0.6-0.8Mpa | ||
| Machine Size | L3650XW1590XH2500mm | L4000XW1730XH2600mm | ||
| Weight | 4.4T | 4.5T | 4.8T | 5T |
| Power Supply | 380V/50HZ/3P | |||
