Home > Products > Thermoforming Machine > FXL-750B II Plastic Cup Cover Bowl/plastic Trays and Plates Making Machine, Thermoforming Machine

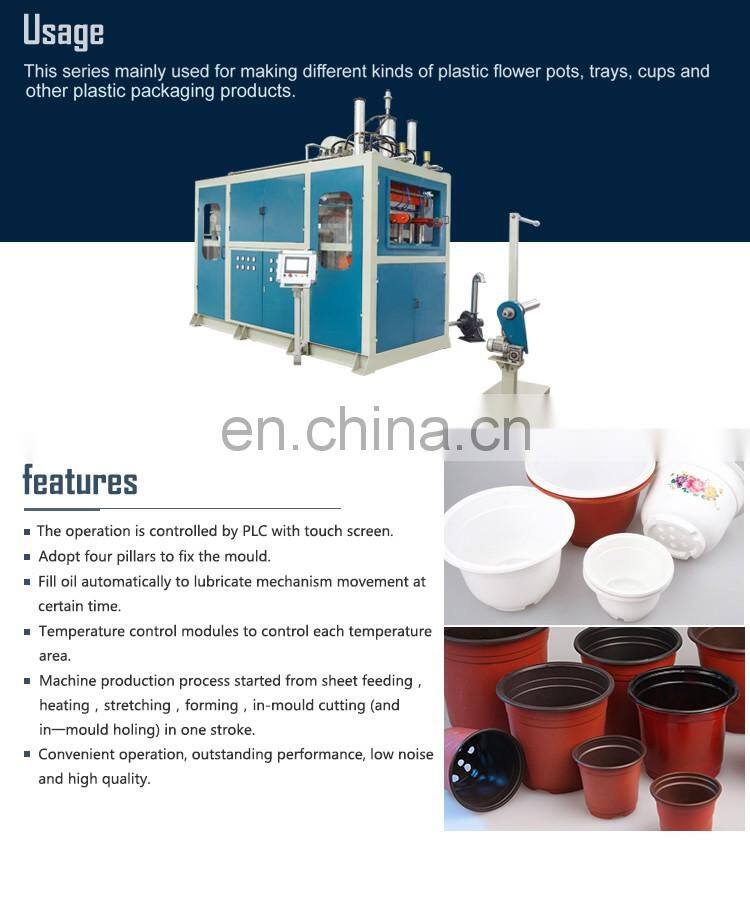

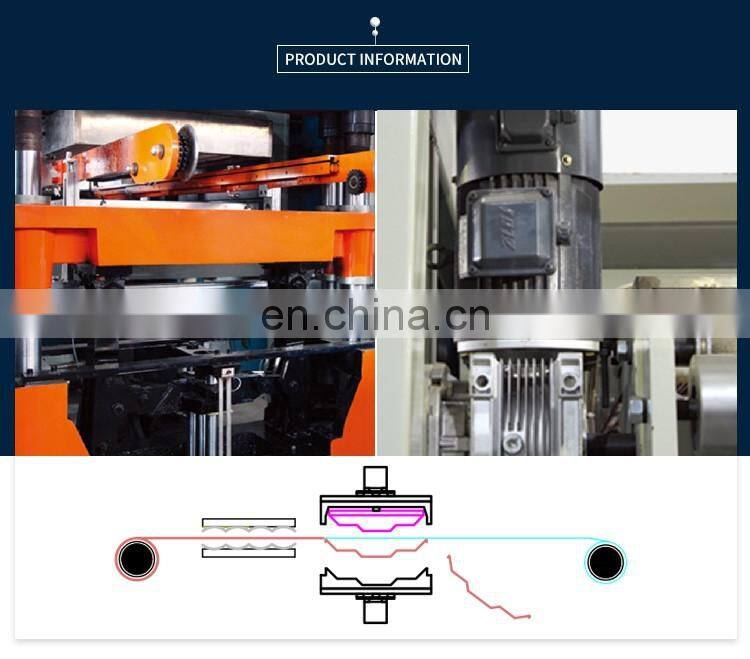

FXL-750B II Plastic Cup Cover Bowl/plastic Trays and Plates Making Machine, Thermoforming Machine
- T/T Credit Card
You May Like
-
Upgrade 2019 New Condition Disposable Glass Thermoforming Machine
-
Automatic Clean Production Disposable Making Machine Price
-
Automatic Plastic Coffee and Tea Cup Making Machine(four-pillar)
-
Automatically Plastic Cake Box Making Machine Clamshell Thermoforming Machine
-
Full Line Disposable Plastic Plates Making Thermoforming Machine Price, Disposal Machine Price
-
Multi-mode Automatic BOPS Plastic Air Pressure Thermoforming Machine for Food
Product Description
FSZ-750I Plastic cup cover bowl/plastic trays and plates making machine, thermoforming machine
You Can Send Your Message To Us >>
Machine video link:
FJL-SZ-750I Flower Pot Thermoforming Machine with Robot Stacker video link:
/watch?v=XVLRDYWg7mU&index=2&list=PLx8xCBHUWD-fakKVj00cN5w0v4q92r4Ku
/watch?v=bMf9nYo41gg&list=PLx8xCBHUWD-fakKVj00cN5w0v4q92r4Ku&index=1
Machine specification:
|
Model |
FJL-SZ-680I |
FJL-SZ-680II |
FJL-SZ-750I |
FJL-SZ-750II |
|
|
Max.Forming Area |
650*320mm |
750*420mm |
|||
|
Max.No-Load Speed |
35 Cycles/m |
||||
|
Driven Method |
Hydraulic |
||||
|
Oil Pump Motor Power |
7.5KW Double Pump |
15KW Double Pump |
|||
|
Cutting Pattern |
In mold automatic |
||||
|
Feeding Pattern |
Motor with Encode |
Servomotor |
Motor with Encode |
Servomotor |
|
|
Stretching Pattern |
Air Cylinder |
Servomotor |
Air Cylinder |
Servomotor |
|
|
Sheet Material |
PP,PS,HIPS,PET,PVC |
||||
|
Sheet Thickness Range |
0.2-2mm |
||||
|
Max.Forming Depth |
120mm |
150mm |
|||
|
Max.Sheet Roll Dia. |
800mm |
||||
|
Heater Arrangement |
120pcs,650W,Top + Bottom Heating with IR Ceramic Heater |
152pcs,650W,Top+Bottom with IR Ceramic Heater |
|||
|
Temperature Controller & Thermocouple |
PID K-Type |
||||
|
Electrical Consumption |
40kw/h |
45kw/h |
50kw/h |
55kw/h |
|
|
Overall Power |
100kw |
110kw |
120kw |
130kw |
|
|
Air Consumption |
1.5-1.8m³/min,0.6-0.8Mpa |
2-2.5m³/min,0.6-0.8Mpa |
|||
|
Dimension |
L3650*W1590*H2500mm |
L4000*W1730*H2600mm |
|||
|
Weight |
4.4T |
4.5T |
4.8T |
5T |
|
|
Power Supply |
380V/50HZ,Three phase,Four wires |
||||
