FSZ-680II Disposable Plastic Tray Making Machine
- 1000 per Month
- T/T Credit Card
- FXL-750B II Plastic cup cover bowl/plastic trays and plates making machine, thermoforming machine
- Upgrade 2019 New Condition disposable glass thermoforming machine
- Automatic clean production disposable making machine price
- Automatic plastic coffee and tea cup making machine(four-pillar)
- Automatically plastic cake box making machine clamshell thermoforming machine
- Full line disposable plastic plates making thermoforming machine price, disposal machine price
Product Description
FSZ-680II Disposable Plastic Tray Making Machine
Machine video:
/watch?v=O4V-6UdwBEQ
/watch?v=7GNtyp0kC1M
/watch?v=cfuM0hi76Go
You can send your message to us>>
I. Main Features:
1) The sheet is driven by pin chain and the pin chain is driven by servomotor. The feeding length could be adjusted by parameter setting through touch screen.
2) The stretching of plug inside of up mould is controlled by servomotor.
3) Mould adopts four pillars to fix the mould.
4) It adopts hydraulic system to drive the movement of the mould.
5) Fill oil automatically to lubricate mechanism movement at certain time.
6) Temperature controller modules to control up and down temperature area.
7) It can finish production at one time through sheet feeding, heating, stretching, forming and in-mould cutting.
8) Stable operation and reliable performance, low noise, high quality.
9) Machine frame adopts square bar to make it. Its lifespan will be longer.
10) The movement of heating oven is controlled by touch screen.
11) Waste sheet winder to collect the waste sheet.
Samples of products:

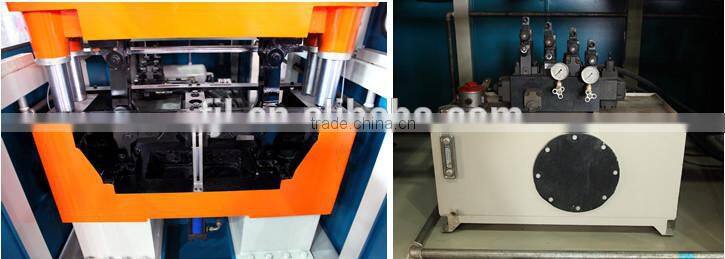

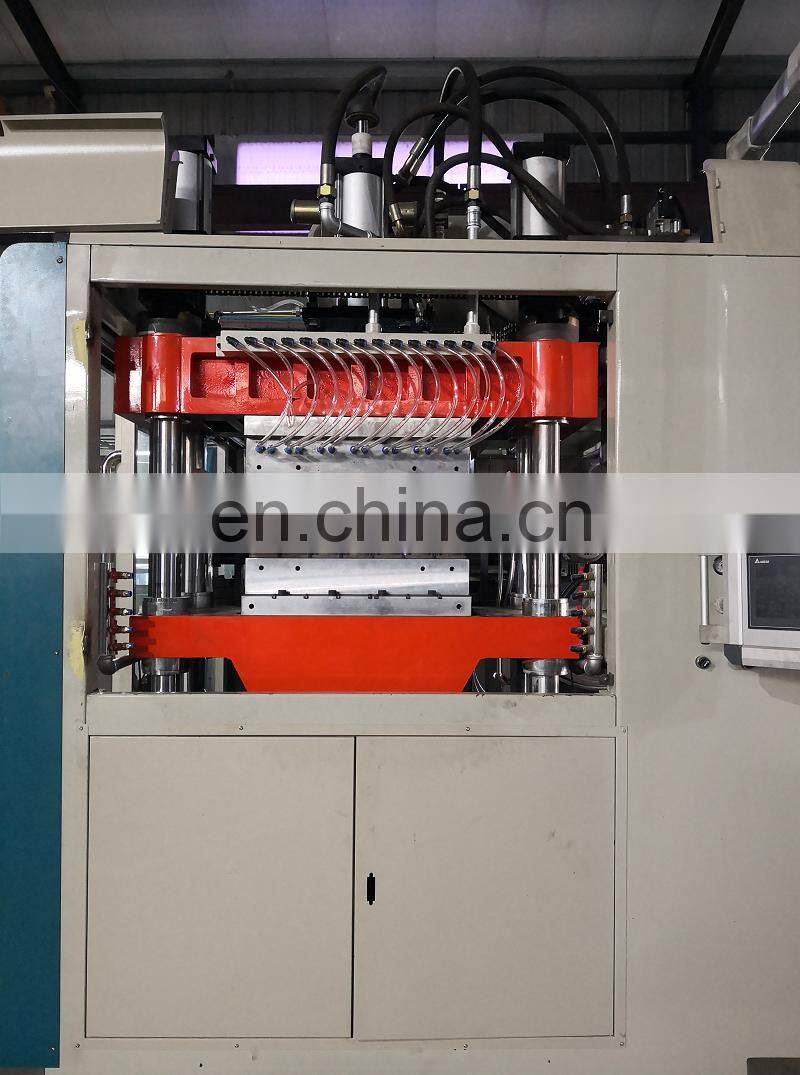

Machine details as follows:
II. Main Technical Parameter:
Model |
FJL-SZ-680I |
FJL-SZ-680II |
FJL-SZ-750I |
FJL-SZ-750II |
|
Max.Forming Area |
650*320mm |
750*420mm |
|||
Max.No-Load Speed |
35 Cycles/m |
||||
Driven Method |
Hydraulic |
||||
Oil Pump Motor Power |
7.5KW Double Pump |
15KW Double Pump |
|||
Cutting Pattern |
In mold automatic |
||||
Feeding Pattern |
Motor with Encode |
Servomotor |
Motor with Encode |
Servomotor |
|
Stretching Pattern |
Air Cylinder |
Servomotor |
Air Cylinder |
Servomotor |
|
Sheet Material |
PP,PS,HIPS,PET,PVC |
||||
Sheet Thickness Range |
0.2-2mm |
||||
Max.Forming Depth |
120mm |
150mm |
|||
Max.Sheet Roll Dia. |
800mm |
||||
Heater Arrangement |
120pcs,650W,Top + Bottom Heating with IR Ceramic Heater |
152pcs,650W,Top+Bottom with IR Ceramic Heater |
|||
Temperature Controller & Thermocouple |
PID K-Type |
||||
Electrical Consumption |
40kw/h |
45kw/h |
50kw/h |
55kw/h |
|
Overall Power |
100kw |
110kw |
120kw |
130kw |
|
Air Consumption |
1.5-1.8m³/min,0.6-0.8Mpa |
2-2.5m³/min,0.6-0.8Mpa |
|||
Dimension |
L3650*W1590*H2500mm |
L4000*W1730*H2600mm |
|||
Weight |
4.4T |
4.5T |
4.8T |
5T |
|
Power Supply |
380V/50HZ,Three phase,Four wires |

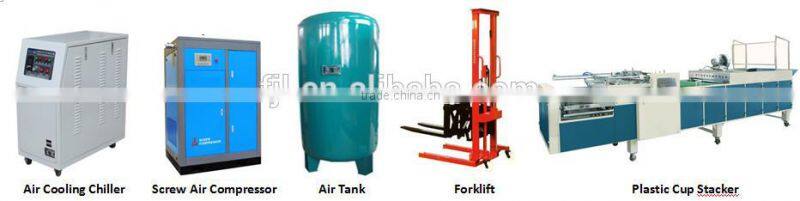

Auxiliary machines as below:
