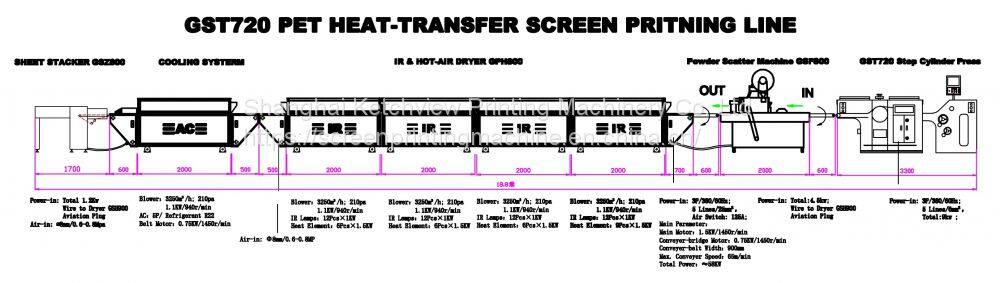

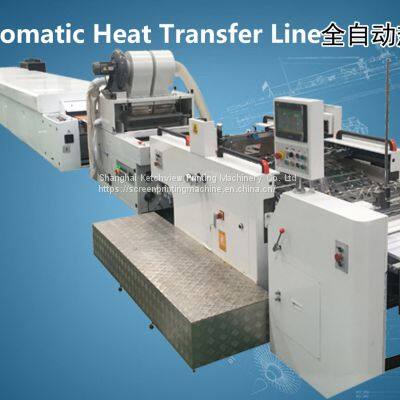

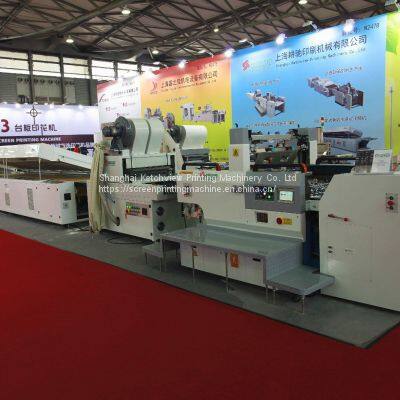

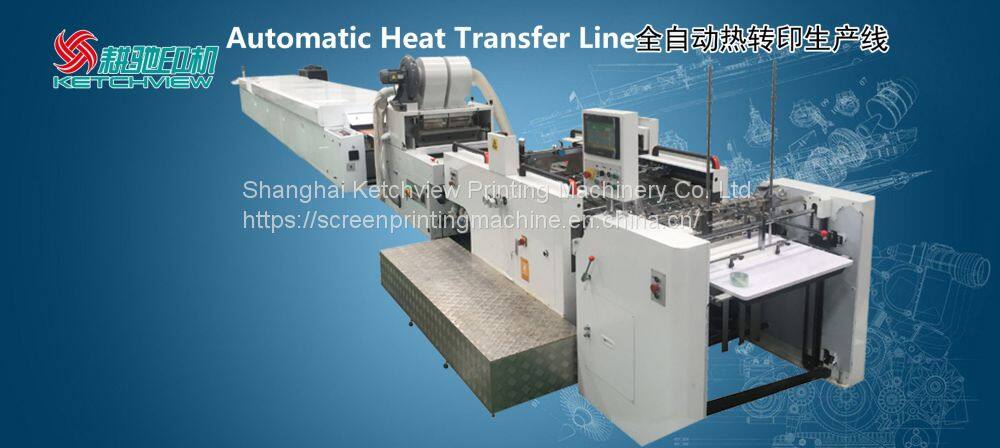

Automatic Heat Transfer Screen Printing Line

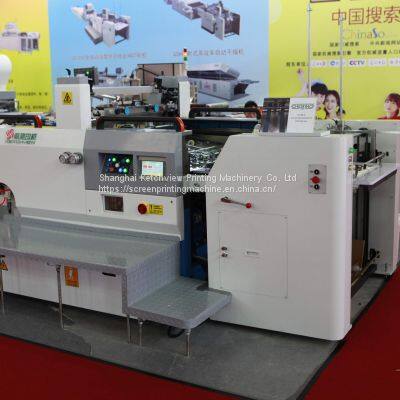

Automatic screen printing machine + Powder dusting machine + IR&Hot air dryer + Sheet stacker

Main Features
1. Driven by variable frequency brake motor, the whole machine is operated under the centralized control of  Mitsubishi PLC. The WEINVIEW-touch  screen operation interface displays all functional data, making printing operation more simple and convenient;
2. Adapt the Japan KEYENCE automatic optical fiber positioning detection, in case of, paperless and paper stuck, automatically rises and stops to reduce printing paper waste;
3. Full alarm system to prompt operators to carry out exact troubleshooting, making maintenance easy and fast;
4. The whole electrical components are imported from Schneider, Mitsubishi, Omron, which greatly improves the stability of the electrical system and reduces the maintenance and overhaul
5. The printing cylinder is made of stainless steel 316L, which is precise and durable. Flexible design of the elastic range of the paper teeth,  convenient for the printing of different thickness of paper at any time;
6. The exit paper board can be turned 90 degrees, which is easy to clean screen. Screen can be adjusted up and down, front and back, right and left position
7. Centralized lubrication control system: main drive parts are lubricated automatically, which can effectively extend the service precision and  machine  life. Most of the bearings are used from NTN and NSK brand

Detail

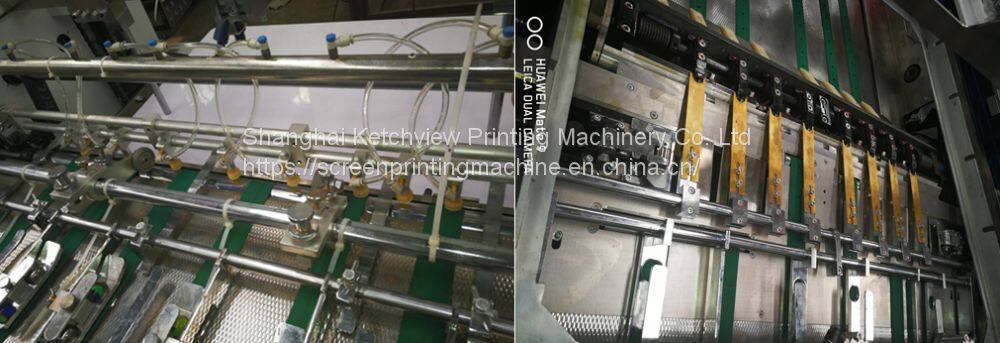

Front pickup feeder   (Option: Rear pickup feeder)

MISUMI pressure wheel, SMC Pneumatic control switch

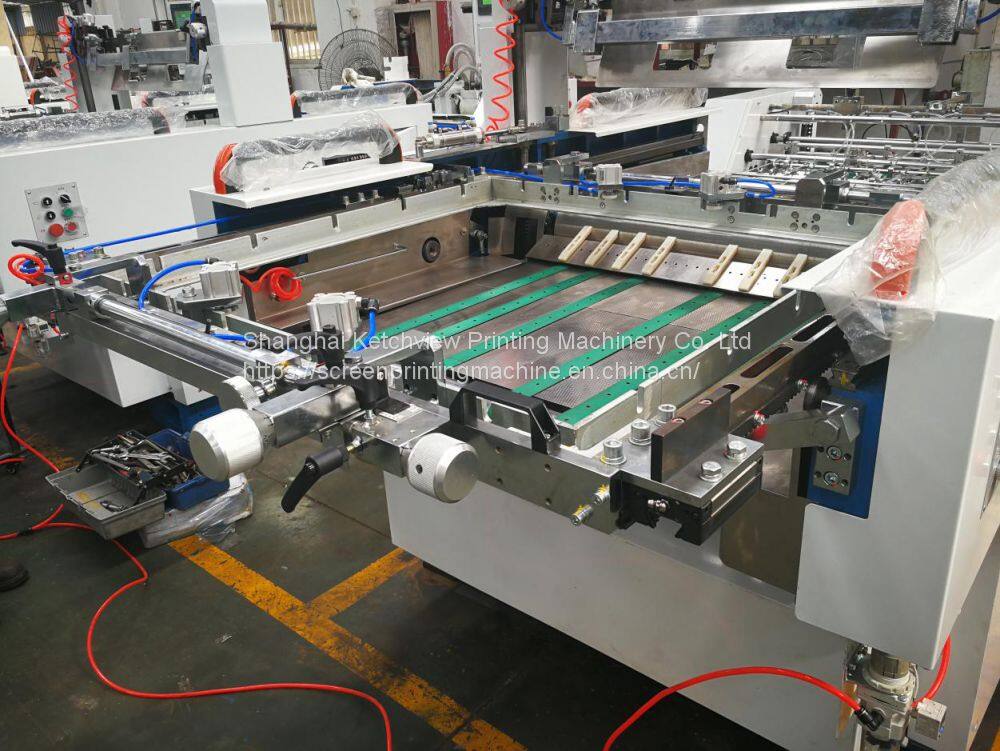

Vacuum paper delivery board, Stainless steel surface

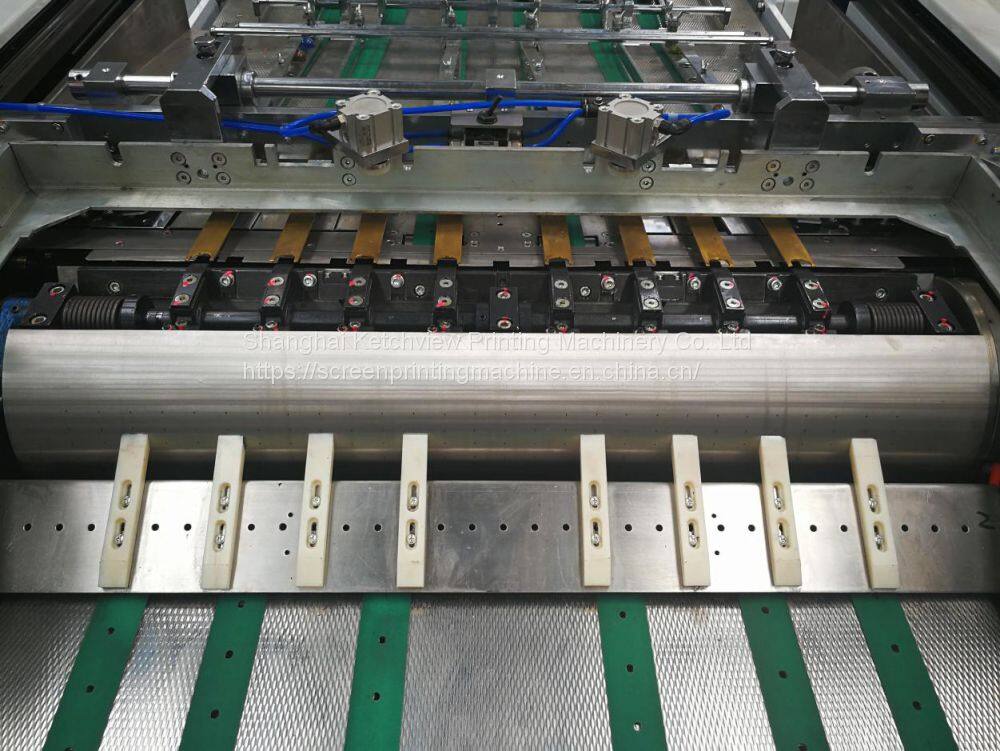

Nylon block protects the cylinder surface, paper table suction can be adjusted, suitable for thick and thin paper

German import handle. Japan THK linear guide
The screen frame can be pulled out of the structure, easy to clean
Mesh screen hook to make mesh tension more even

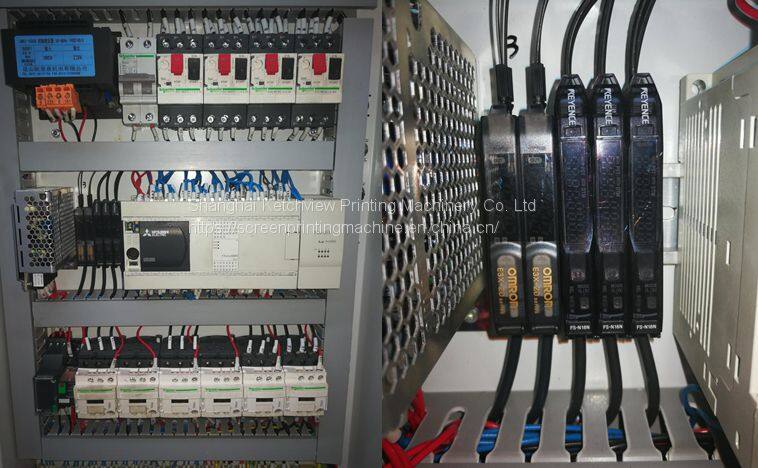

Schneider low voltage electric appliance and button switch, Mitsubishi PLC, Omron optoelectronic switch, KEYENCE fiber amplifier and other imported accessories ensure the stable operation of the system


WEINVIEW-touch screen, easy operation

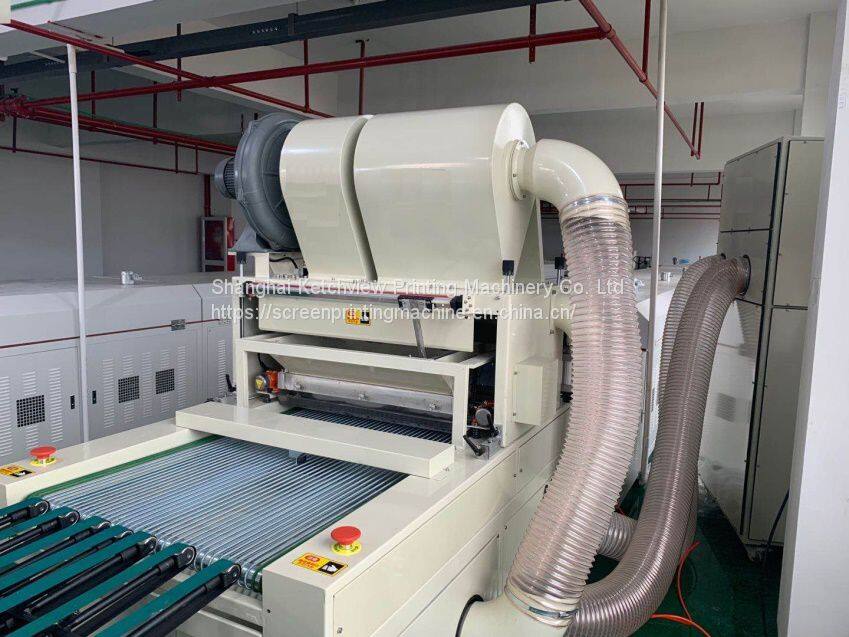

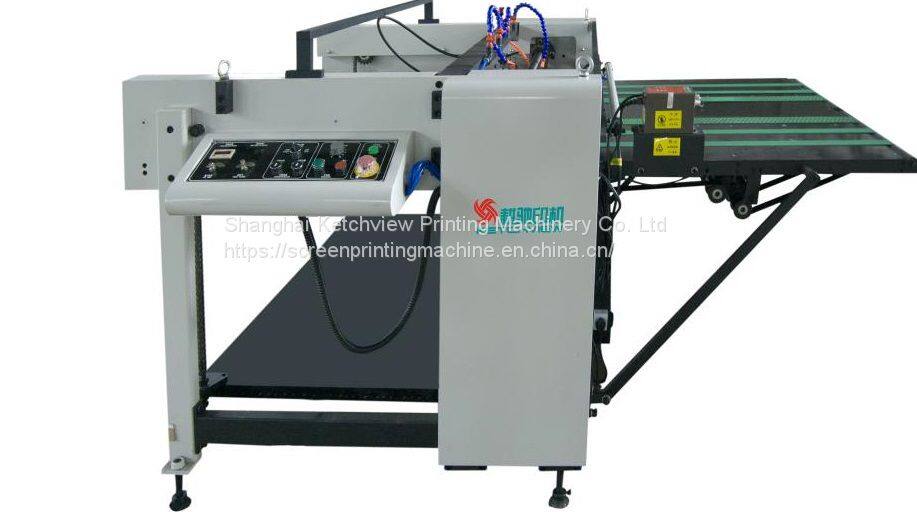

2. Powder dusting machine

GSF Series Powder Dusting Machine is specially designed for heat transfer, Plastic sheet printing, glitter decoration etc. The machine works following the screen press, after power spraying on the printing area on the sheets.it is easy to connect to the UV Dryer, IR&Hot-air oven and Wicket Dryer etc.

In our latest design, vacuum systems provide a strong cleaning function, ensuring effective cycling.
New soft conveyer belt guarantees no scratching of the substrates.
There are also new functions like sensor control feeding, air-knife isolating and stainless steel inner, surface, which guarantee the machine works for the better performance to meet or
exceed customer requirements.

Technical Parameters

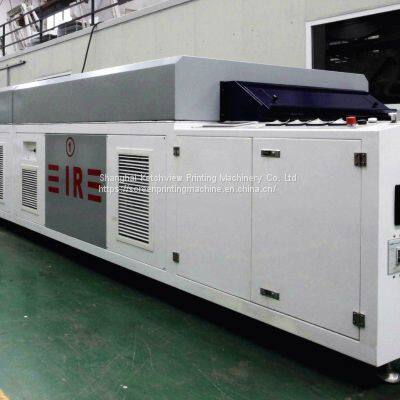

3. IR&Hot air dryer

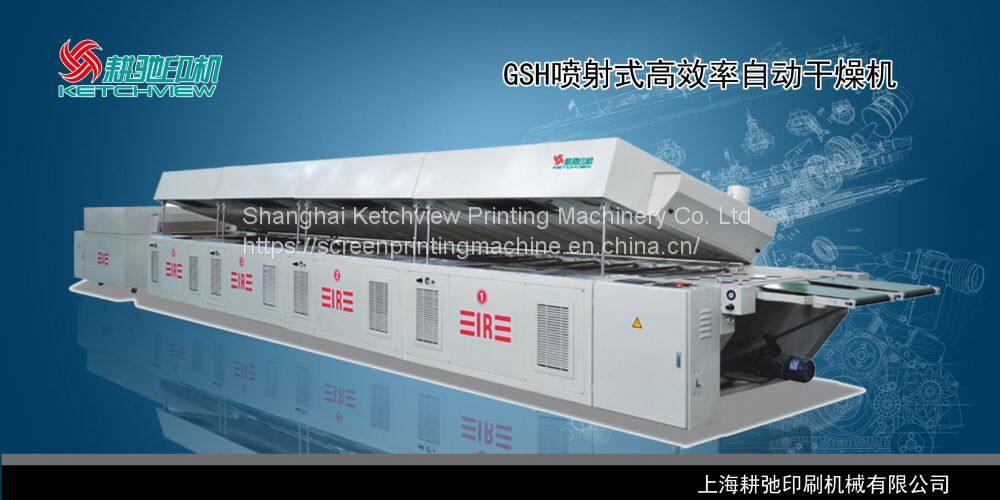

GSH Series Hot-air  conveyor belt dryer special designed for different kinds of ink printing. It widely used in printing paper, plastic etc.
New insulating layer, inside temperature can be Max.130ºC,
hot air cycle is more homogeneous.
New air suction and exhaust system, sheet will move forward more steadily.

Features:

Technical Parameters

4. Sheet stacker

GSZ sheet stacker is one of accessorial equipment to automatic cylinder screen printing machine, It is used to collect and pile paper which can improve you product efficiency.

Features
1. This machine is made up of input-bracket mechanism, pushing-paper mechanism, piling-board up-down mechanism and electric control system.
2. Input-bracket mechanism contains conveyor belts and blowing device. The conveyor belts are drove by motor, which speed is adjusted by transducer.
3. The blowing device is used to blow-up the paper to move a distance after leave from the belt. The paper will continue to go ahead by the air flow. Then the blowing is shut off, the paper drop down to the piling-board.

Technical Parameters

Application

Heat transfer label, water transfer label, PVC home appliances panel, credit card
