High Quality Environmental Temperature and Humidity Test Chamber For Laboratory and Industrial Workshops
- T/T Credit Card
You May Like
-
Climate Control System Cryo Chamber Stability Chamber Environmental Temperature Humidity Calibrator Chamber
-
Wholesale Price New Design Heating Vacuum Chamber Thermal Shock Control Cycling Test Chambers
-
China Machinery Price Car Testing Equipment Walk-in Assembled Freezer Environmental Temp Humidity Chamber
-
Customized Fiber Glass Reinforced Plastics Material Large Size Salt Spray Walk In Test Chamber
-
Wholesales Electronic Walk in Burn Room Aging Chamber
-
Factory Supply LED Bulb Aging Testing Chamber Machine and Equipment
Product Description
High Quality Environmental Test Chamber
Uses:
Electronics, electrical appliances, sensors
Semiconductor, PCB, LCD & LED
Medicals tests
Mechanical, Military, aerospace products
Vehicles, Transprt, automobile supply industries
Chemicals, Petrochemical industries
Building materials, Plastics, Textile industries
Testing metal related industries like plating etc.
Instrumentation
Meet the Standards:
IEC68-2-1 (GB-2423.1-2008) Testing A: Low temperature testing method
IEC68-2-2 (GB-2423.2-2008) Testing B: High temperature testing method
MIL-STD-202F (GJB360.8-87) High temperature life testing
MIL-STD-810D (GBJ150.3) High temperature method
MIL-STD810D (GBJ150.4) Low temperature method
IEC68-2-3 (GB2423.3-93) Testing Ca: Constant moist heat testing method.
IEC68-2-30 (GB2423.4-93) Testing Db: Alternate moist heat testing method.
MIL-STD-810D (GJB150.9-93) Moist heat testing method
Character:
Chamber exterior material is stainless steel with environmentally baking paint resists corrosion and provides impact resistance. Interior material is SUS304# stainless steel with excellent heat resistance and easy to clean.
large LCD color touch screen controller is designed to save chamber programming and setup time with temperature limit and alarm to protect your product.
Safety relay connection is provided to protect your device under test by removing power to it when the chamber is not running.
RS-232 communications is for computer connection, programming can be set on computer by software, monitor testing process and automatically execute power on/off functions.
Fog-free viewing window and interior light makes viewing workspace freely and observe the test under best conditions.
Adjustable product shelf slides out for easier product access. Shelf design is non-tipping and supports large product loads.
Left side of chamber with diameter 50mm cable port for power-on test.
Optional electronic humidity sensor is used on all test chambers for accuracy and minimal maintenance.

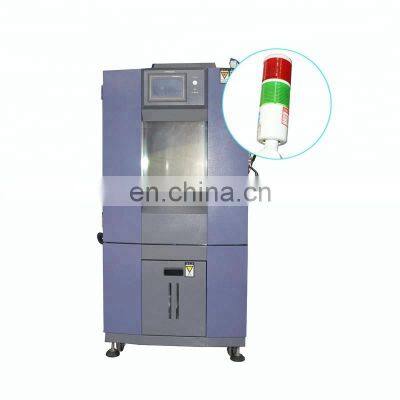

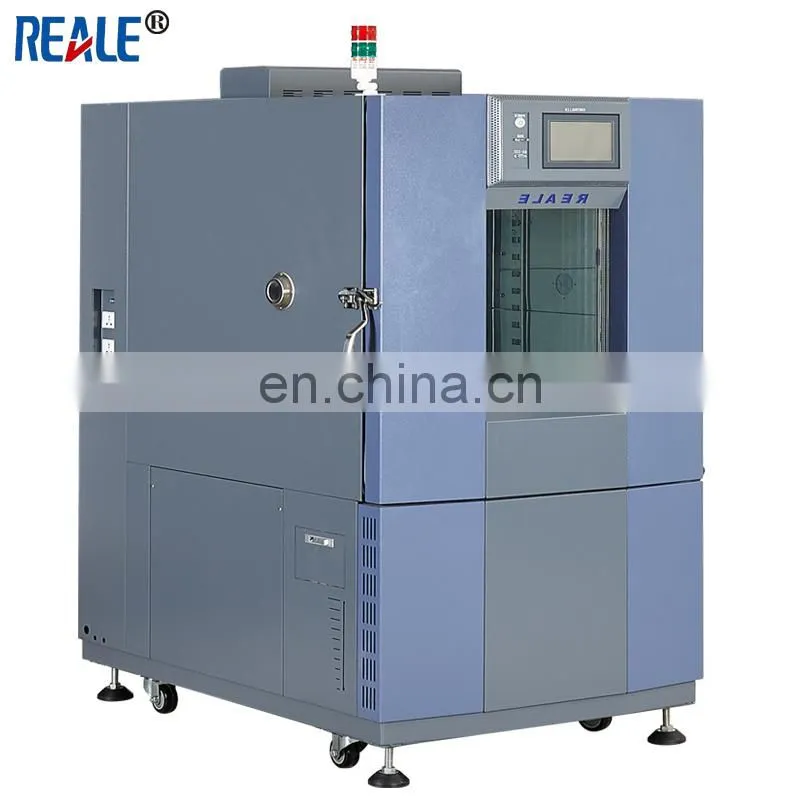

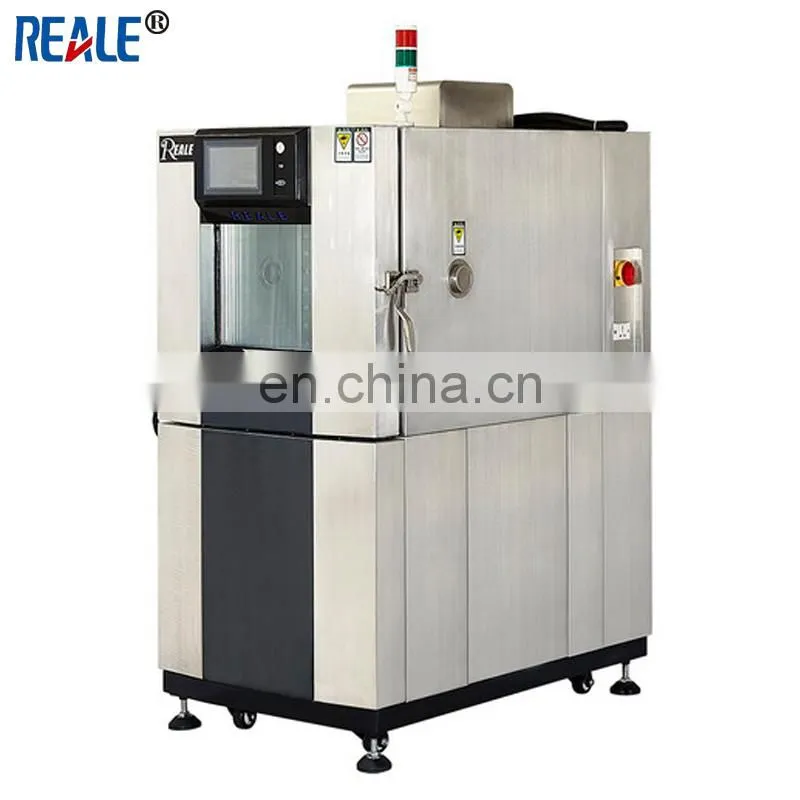

Reference picture:
Parameter:
|
Model |
|
RHP-23 | RHP-64 | RHP-80 | RHP-100 | RHP-120 | RHP-150 | RHP-225 | RHP-408 | RHP-800 | RHP-1000 |
| System | Balanced temperature & humidity control system | ||||||||||
|
Temperature range |
-70°C~150°C Rapid temperature nolinear (linearly is option) | ||||||||||
|
Humidity range |
20%~98%RH | ||||||||||
| Temperture fluctuation |
±0.5℃ |
||||||||||
|
Humidity fluctuation |
±2.5%RH |
||||||||||
| Temperature deviation | ±2.0℃ | ||||||||||
| Humidity deviation | ±3%RH(≥75%)/±5%RH(<75%) | ||||||||||
| Heat up time | -20°C~150°C 45 minutes, -40°C~150°C 60 minutes, -70°C~150°C 75 minutes, | ||||||||||
| Pull down time | 20°C~-20°C 40 minutes, 20°C~-40°C 60 minutes, 20°C~-70°C 85 minutes, | ||||||||||
| Interior material | SUS#304 Stainless steel plate | ||||||||||
| Exterior material | Backed paiting steel or stainless steel(SUS304) | ||||||||||
| Insulation material | Rigid polyruethane foam +glass fibre | ||||||||||
| Floor bearing load | 500Kg/m3 | ||||||||||
| Refrigeration system | Air cooled (Water cooled type is option) | ||||||||||
| Singl section/cascade type, hermetic/semitight compressor,CFC free refrigerant | |||||||||||
| Controller | Color LCD screen in English/Chinese, programing,communicating function | ||||||||||
| Safety devices | No welding wire switch,compressor overheating and over current protection,over temperature protection, blower overload protection,dry heating machine protector,low water protection,fault warning system. | ||||||||||
| Standard accessories | One observation window, one test hole(Φ5cm), two sets of test racks, one floodlight, one indicator light, four moving wheels, one humidifying tank, 2 meters of power cord, communication interface | ||||||||||
| Ambinet temperature | 5°C~35°C | ||||||||||
| Power | AC380±10% 50HZ 3 phase 4 wires+ground wires | ||||||||||
