Laptop 10.4inch Elements Medical Ultrasound Machine for Vet Pregnancy

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Manufacturer Laptop 10.4inch Elements Ultrasound Machine for Vet Pregnancy

1.Operating environment

Operating ambient temperature：+5℃―+40℃

Relative humidity： ≤80%

Atmospheric pressure： 700hPa—1060hPa

Power supply(adapter)： AC 110V~240V 50Hz±1Hz; DC: 14V

Battery: ≧3000mAH

Main Functions

Probe configuration: T35R60GZ convex array probe (standard); T75R13GZ type cavity probe (user selected)

Display modes:3T35R60GZ convex array probe: B, B/B, 4B, B+M, M;T75L40GZ type Linear probe: B;

Image multiplying factor:T35R60GZ convex array probe, Type B, real-time state:×0.8, ×1.0, ×1.2, × 1.5，×1 .8, ×2.0;×0.8, ×2.0 (display penetration depth);T65R13GZ type cavity probe: ×0.8, ×1.0, ×1.2, ×1.5.

Permanent storage: ≧128 images.

Cine storage: ≧256 Frames

USB interface: store image only for U disk.

3.Main Technical Indexes

Standard probe：T35R60GZ convex array probe: 80 elements, R60, frequency of 3.5 MHz

Optional probe: T75L40GZ type Linear probe: 80 elements, L40, frequency of 7.5 MHz

Basic performance as below:

NO.	Name of technical indexes	Type T35R60GZ convex array probe	Type T75L40GZ Linear probe
1	Nominal frequency of probe MHz	f=3.5 MHz	f=7.5 MHz
2	Type of probe	R=60，Convex array	Linear array
3	Scan depth mm	≥170 mm	≥40 mm
4	Lateral resolution mm	≤3mm（depth≤80 mm）	≤2mm（depth≤30 mm）
4	Lateral resolution mm	≤4mm（80 mm＜depth≤130 mm）	≤2mm（depth≤30 mm）
5	Axial resolution mm	≤2mm（depth≤80 mm）	≤1mm（depth≤40 mm）
5	Axial resolution mm	≤3mm（80 mm＜depth≤130 mm）	≤1mm（depth≤40 mm）
6	Blind area	≤5 mm	≤4 mm
7	Transverse geometry precision	≤10 %	≤10 %
8	Longitudinal geometric location accuracy	≤8 %	≤5 %

4.Probe

Probe wire(The probe line inside): 24 core wires(24core wires and 24 shielded wires);20 wires; Total:68 wires.

Probe wire thickness:2.54mm.

Probe socket:78 pins.

5.Monitor

Monitor: 10.4 inch LED display.

Monitor resolusion:800×600 bit

Monitor size: 245 ×18.4 × 9mm (length × width × height)

6.Main Parameter

Grey scale: 256 levels.

The perimeter area measurement deviation: 20% or less.

Running hours: ≥8h.

The battery pack continuous working time: ≥1h.

Input power: ≤110VA.

Host weight: about 3.5 kg.

Host appearance size: 300 ×245 × 60 (length × width × height) (mm³).

Standard configuration: 1 host; 1 T35R60GZ convex array probe.

Optional configuration: T65R13GZ type cavity probe;T75L40GZ type linear probe.

7.Mainly BOM:

a.Power supply board;

b.main board(include chips AFE5805、5583、EP2C35F672C8N、STC90C516RD、DS12C887+、P89LV51);

c.adapter;

d.key board;

e.10.4 inch LED displayer;

f.Trackball and board.

8.Output port:

a.VGA video(can connect displayer);

b.PAL video(can connect the video printer);

c.USB port (store image only for U disk).

Ultrasound output publish of technical data

Form Ａ.1 Convex probe output parameters

Model：B Probe Model：T35R60GZ convex probe

Index Label		MI	TIS			TIB	TIC
			Scan	Non-scan		Non-scan
			Scan	A_aprt≤1cm²	A_aprt＞1cm²	Non-scan
Maximum index value		0.77	0.20	—	—	—	—
Associated acoustic parameters	P_ra（Mpa）	1.33
	P（mW）		30.0	—		—	—
	P_α（Z_s）and I_pi,_α（Z_s）Min of（mW）				—
	Z_s（cm）				—
	Z_bp（cm）				—
	Z_b（cm）					—
	At max I_pi_，_α Z（cm）	4.20
	d_eq（cm）					—
	f_awf（MHz）	2.98	2.98	—	—	—	—
	Dim of A_aprt X（cm）		1.05	—	—	—	—
	Dim of A_aprt Y（cm）		1.40	—	—	—	—
Other information	t_d（μsec）	0.64
	P_rr（Hz）	3520
	P_rat max I_pi （Mpa）	2.04
	d_ep at max I_pi （cm）					—
	I_pi_，_αat max MI（W/cm²）	57.03
Operating control conditions	Depth	200	—	—	200	200	N/A
	Focus(mm)	60	—	—	60	60	N/A
	Freq(MHz)	3.5	—	—	3.5	3.5	N/A

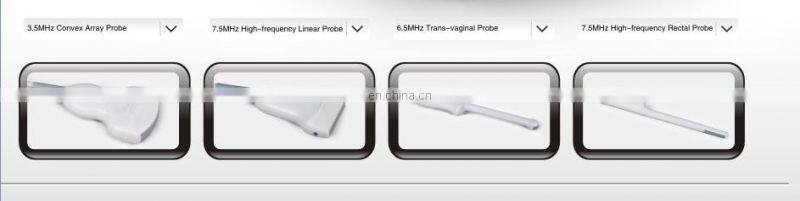

Optional Probes：
