CNC Machine Tool RB15013 Slewing Bearing Cross Roller Bearing

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Products Description

Crossed roller bearings product description

BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner

and outer rings with high rigidity,because of its vertical arrangement of cylindrical rollers with

a 90°V groove through the separate spacers in the deep grooverolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and

moment loads.

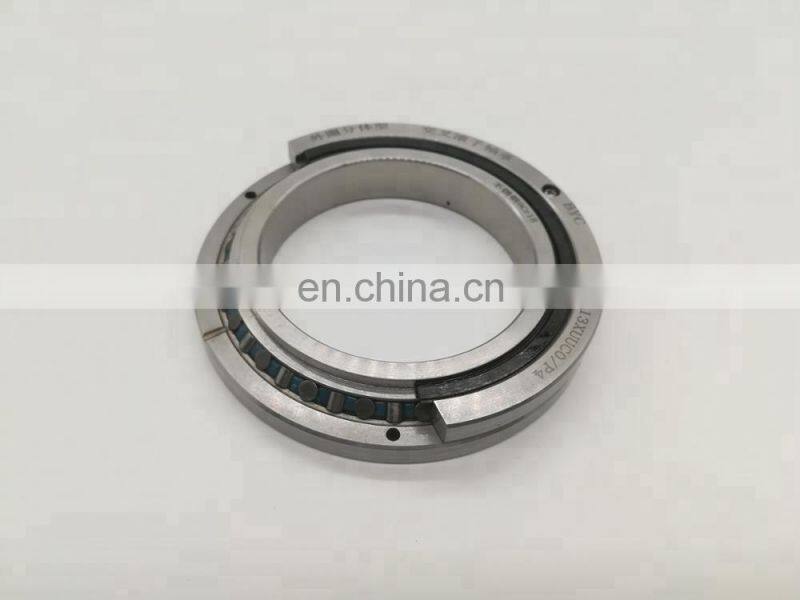

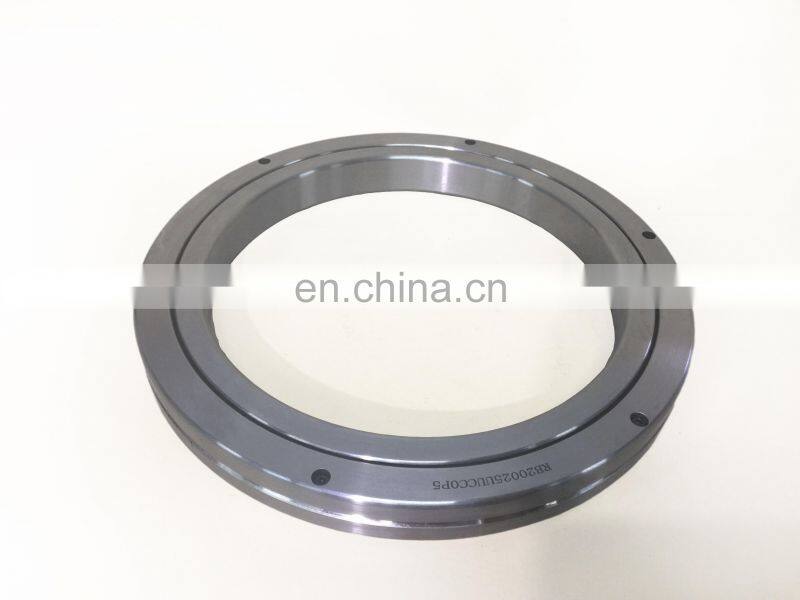

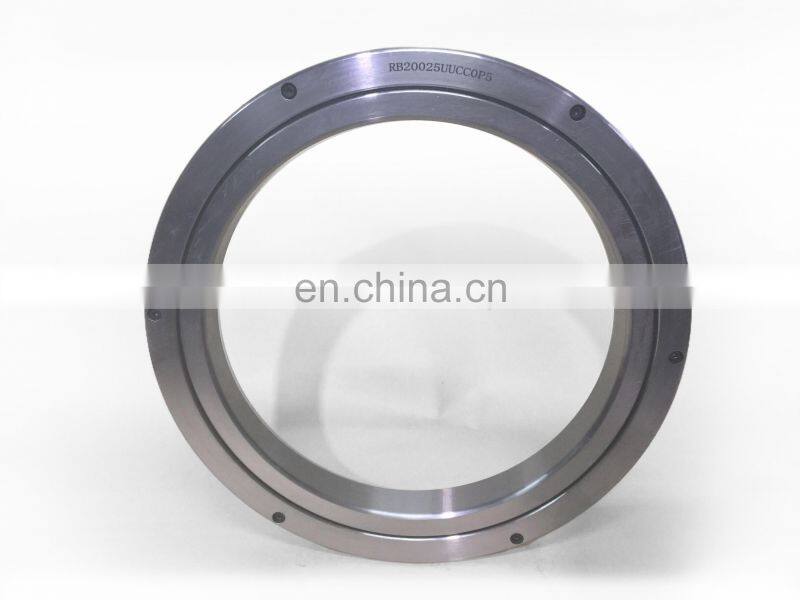

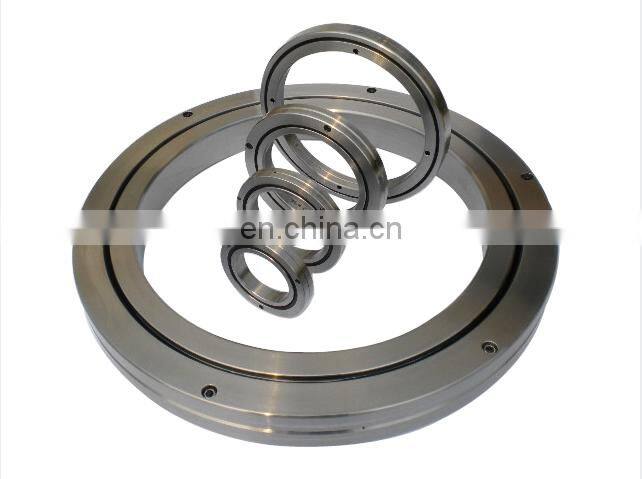

Products Show

Product Paramenters

Shaft diameter	Model number	Main dimensions (mm)					Weight
				Inner ring	Outer ring	width	Weight
				d	D	B B1	Kg
20	RB2008	20	36	8	0.04
25	RB2508	25	41	8	0.05
30	RB3010	30	55	10	0.12
35	RB35 10	35	60	10	0.13
40	RB4010	40	65	10	0.16
45	RB4510	45	70	10	0.17
50	RB5013	50	80	13	0.27
60	RB6013	60	90	13	0.3
70	RB7013	70	100	13	0.35
80	RB8016	80	120	16	0.7
90	RB9016	90	130	16	0.75
100	RB10016	100	140	16	0.83
100		100	RB10020		150	20	1.45
110	RB11012	110	135	12	0.4
			RB11015		145	15	0.75
			RB11020		160	20	1.56

Shaft diameter	Model number	Main dimensions (mm)					Weight
				Inner ring	Outer ring	Width	Weight
				d	D	B B1	Kg
120	RB12016	120	150	16	0.72
120		120	RB12025		180	25	2.62
130	RB13015	130	160	15	0.72
130		130	RB13025		190	25	2.82
140	RB14016	140	175	16	1
140		140	RB14025		200	25	2.96
150	RB15013	150	180	13	0.68
			RB15025		210	25	3.16
			RB15030		230	30	5.3
160	RB16025	160	220	25	3.14
170	RB17020	170	220	20	2.11
180	RB18025	180	240	25	3.44
190	RB19025	190	240	25	2.99
200	RB20025	200	260	25	4
			RB20030		280	30	6.7
			RB20035		295	35	9.6
220	RB22025	220	280	25	4.1

Shaft diameter	Model number	Main dimensions (mm)					weight(kg)
Shaft diameter	Model number			Inner ring(d)	Outer ring(D)	width B B1	weight(kg)
250	RB25025	250	310	25	5
			RB25030		330	30	8.1
			RB25040		355	40	14.8
300	RB30025	300	360	25	5.9
			RB30035		395	35	13.4
			RB30040		405	40	17.2
350	RB35020	350	400	20	3.9
400	RB40035	400	480	35	14.5
400		400	RB40040		510	40	23.5
450	RB45025	450	500	25	6.6
500	RB50025	500	500	25	7.3
			RB50040		600	40	26
			RB50050		625	50	41.7
600	RB60040	600	700	40	29
700	RB70045	700	815	45	46
800	RB80070	800	950	70	105
900	RB90070	900	1050	70	120
1000	RB1000110	1000	1250	110	360
1250	RB1250110	1250	1500	110	440

Plan01

Blister packaging

Plan02

Carton packaging

Plan03

Wooden case packing

Packaging & Shipping.

1. Industrial Neutral Packing,Package as your requirements.

2. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton.

3.Large size Bearings:Plastic film+Brown paper+Roll tape+Wooden Box.

4.Shipping:By air or By sea:DHL/TNT/UPS/EMS etc.
