RA16013 Single Row Cylindrical Cross Roller Bearing For Industrial

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Products Description

Crossed roller bearings product description

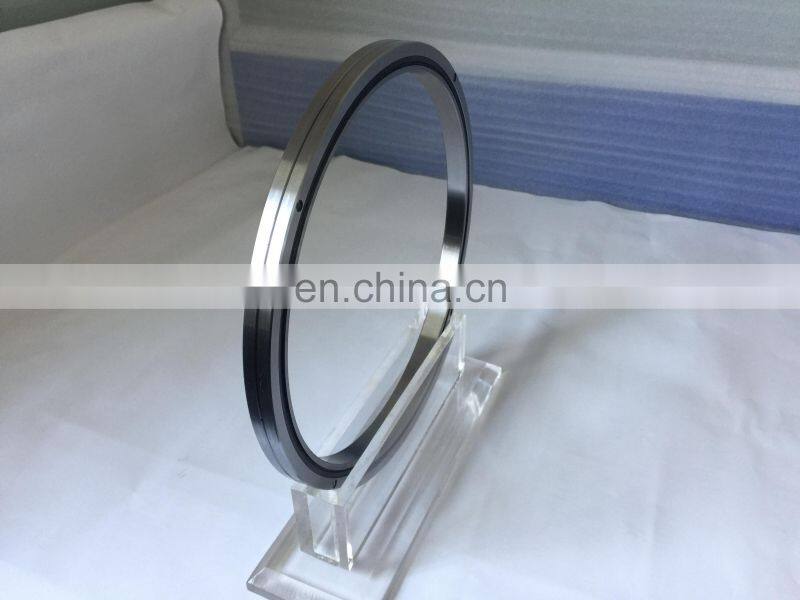

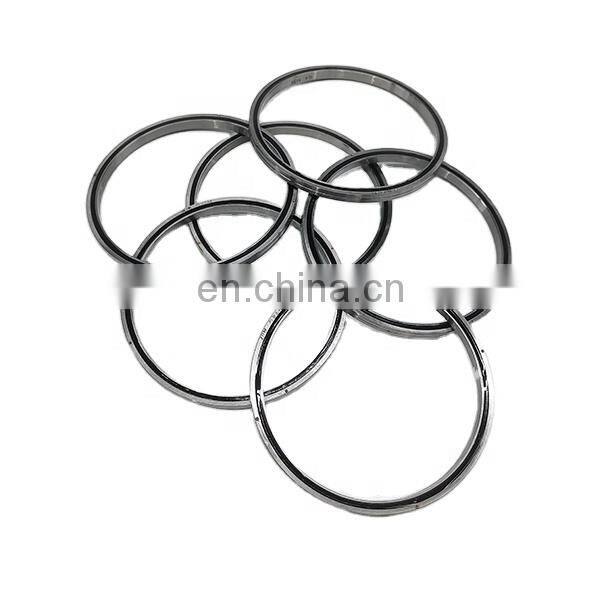

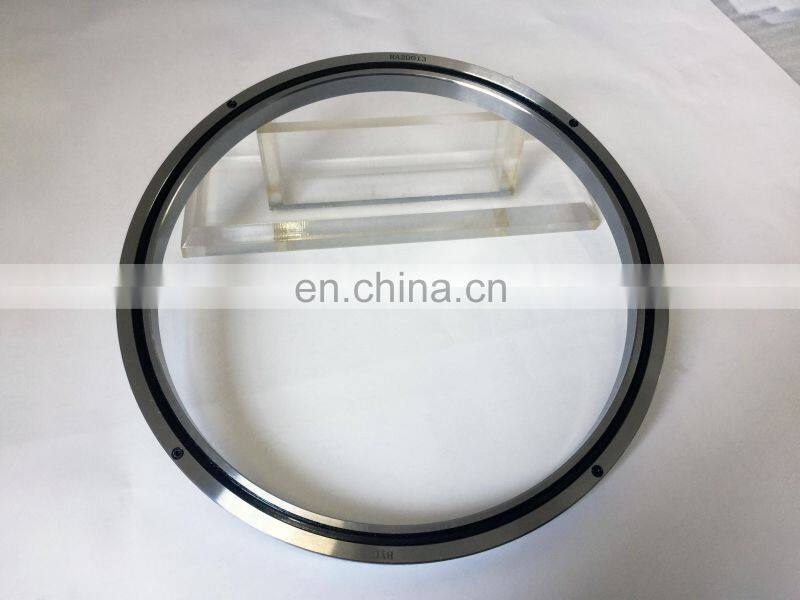

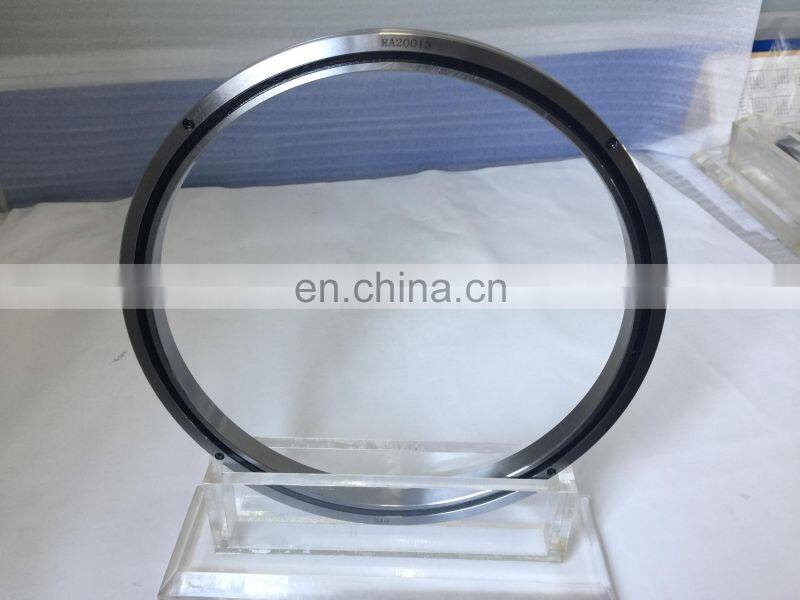

BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner

and outer rings with high rigidity,because of its vertical arrangement of cylindrical rollers with

a 90°V groove through the separate spacers in the deep grooverolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and

moment loads.

Products Show

Product Paramenters

Shaft Diameter(mm)	Model number	Main dimensions(mm)					Weight(kg)
Shaft Diameter(mm)	Model number			Inner ring(d)	Outer ring(D)	Width B B1	Weight(kg)
100	RA10008	100	116	8	0.14
110	RA11008	110	126	8	0.15
120	RA12008	120	136	8	0.17
130	RA13008	130	146	8	0.18
140	RA14008	140	156	8	0.19
150	RA15008	150	166	8	0.2
160	RA16013	160	186	13	0.59
170	RA17013	170	196	13	0.64
180	RA18013	180	206	13	0.68
190	RA19013	190	216	13	0.69
200	RA20013	200	226	13	0.71

Plan01

Blister packaging

Plan02

Carton packaging

Plan03

Wooden case packing

Packaging & Shipping.

1. Industrial Neutral Packing,Package as your requirements.

2. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton.

3.Large size Bearings:Plastic film+Brown paper+Roll tape+Wooden Box.

4.Shipping:By air or By sea:DHL/TNT/UPS/EMS etc.

Company Profile

Company Information

Luoyang BoYing Bearing Co., Ltd, (BYC) is a professional manufacturer of high precision bearings,The main products are Crossed roller bearings , YRT Rotary Table Bearings , Crossed Tapered Roller Bearings , Cylindrical Thrust Roller Bearing , Angular Contact Ball Bearings , Thin Section Bearings, Slewing Bearings , Ball Screw Bearings . The accuracy grades are P5, P4, P2, and the size of inner ring are ranging from Φ50mm --- Φ1300mm. Our products are optimal for Robotics, Machine Tools, Rotary Table,medical equipment, measuring instruments ,mainly to replace the imported bearings. Also, we can design , choose and manufacture non-standard precision bearings as customer requested.
