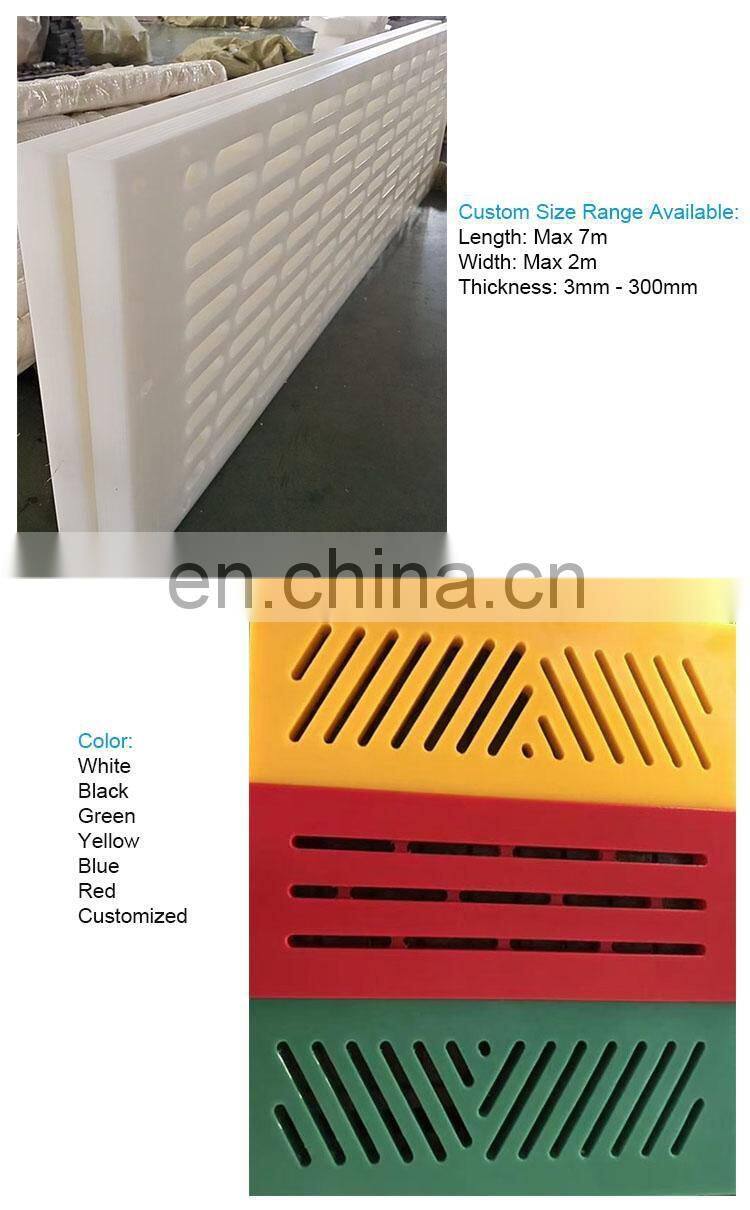

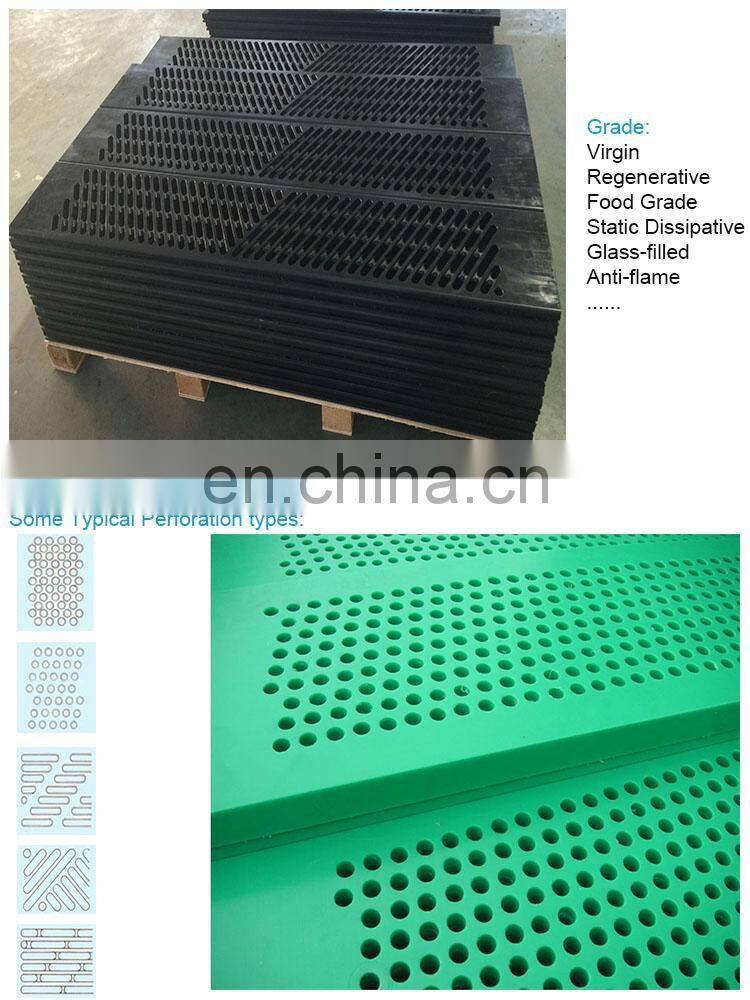

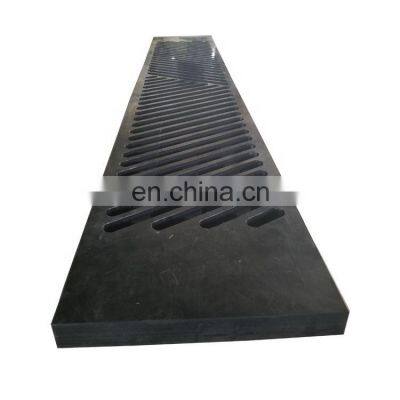

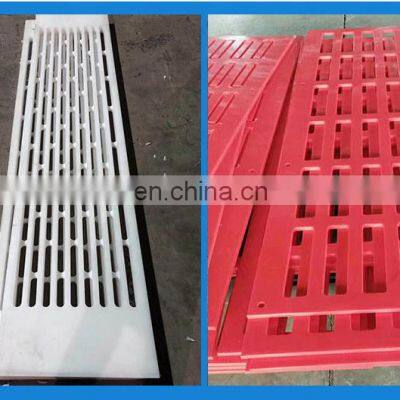

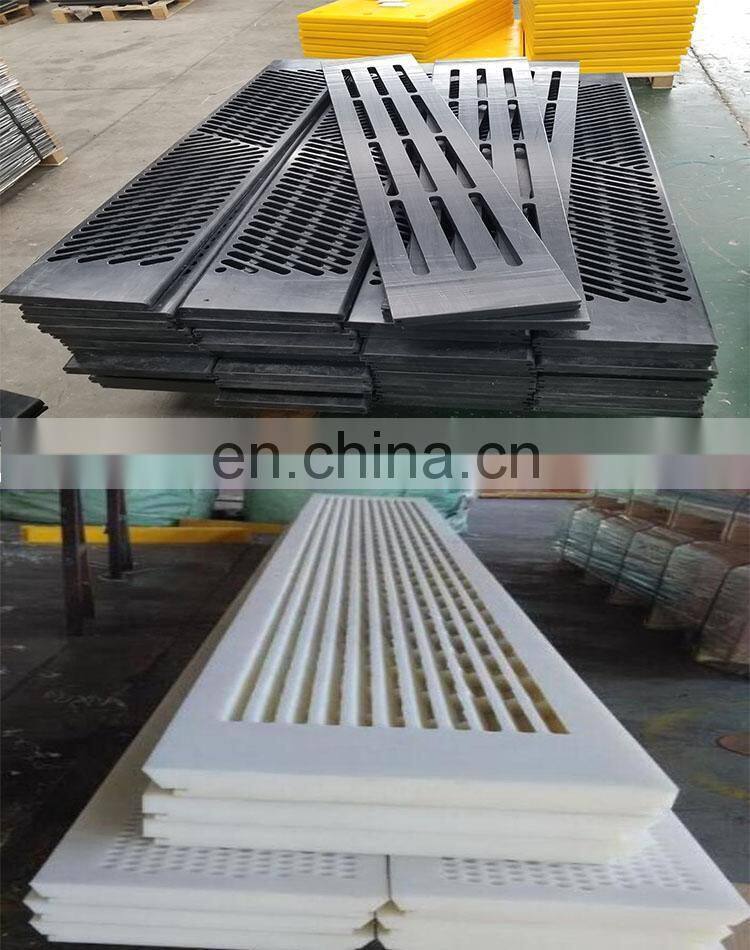

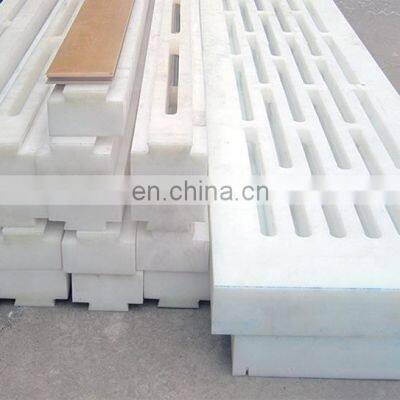

Factory custom anti-aging uhmw pe board suction box cover filter plate
Suction Box Cover & Dewatering Component for Paper & Pulp Manufacturing, which are are made of UHMWPE and HDPE material, which widely sued in paper industry. UHMWPE and HDPE plastic dewatering element is known for its high dry-film lubricant content. This produces an extremely smooth surface, most importantly resulting in a low friction coefficient a low level of adhesion.
Factory custom anti-aging uhmw pe board suction box cover filter plate
Technical Parameters of
| Property | Unit | Value |
| Density | g/cm3 | 0.93-0.96 |
| Average molecular weight | g/mol | 3million- 10 million |
| Tensile strength (23°C in air) | MPa | 22 |
| Breaking strength | MPa | 42 |
| Tensile strain at break | % | 600 |
| Charpy impact strength (notched) | mJ/mm2 | No break |
| Ball indentation hardness | N/mm2 | 42 |
| Shore D hardness | -- | 65-70 |
| Abrasion | % | 70-80, steel = 100 |
| Static Friction Coefficient | -- | ≤0.16 |
| Kinetic Friction Coefficient | -- | ≤0.10 |
| Water Absorption | -- | NIL |
| Elongation at break at 23 degress | % | ≥300 |
| Temperature resistance | °C | -269 to +85 |
| Melt Temperature | °C | 130-140 |
UHMWPE Suction Box Cover Related Products Available in the paper industry:
- Forming boards
- Foil covers
- Doctor blades
- Scraper blades
- Deflector blades
- Profile strips etc.

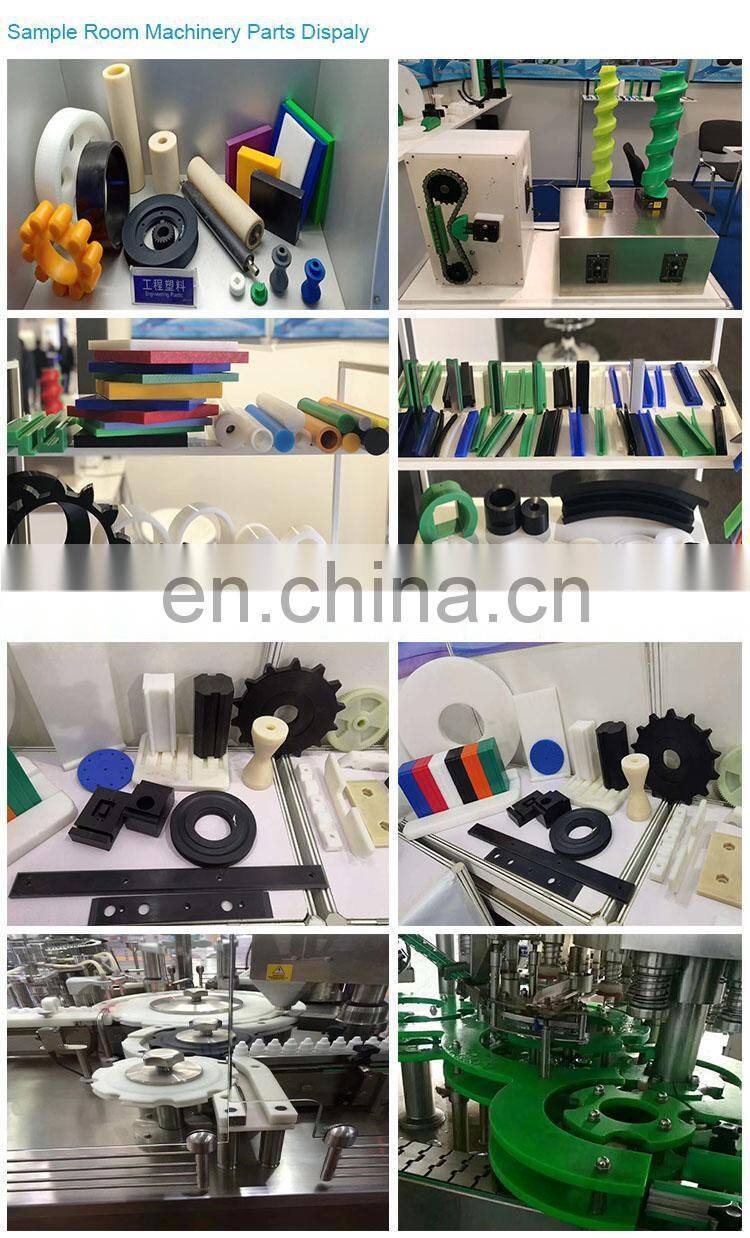

Besides the UHMWPE suction box cover, there are lots of other machined parts we have produced, juse like guide rail, roller, pulley, bearing, bushing, washer, gear, wheel, sleeve and so on. Please just send your drawing, or tell your requirements to us, then leave the rest to us !
Q1. Are you manufacturer?
A1. Yes, we engaged in engineering plastic more than 20 years, like UHMWPE, HDPE, PP, POM and so on.
Q2. How long is your delivery date?
A2. Generally within 20 days, it actual based on the quantity and manufacturing diffculties.
Q3. Do you provide samples ? is it free or extra ?
A3. Yes, the samples can be free, you just pay the freight.
Q4. Do you support OEM, design or installation?
A4. Yes, we have machined many of irregular parts based on drawing, and we have a specialized team provide be responsible for the comprehensive service like research, design, inspection, installation, etc.
Q5. How about your quality control?
A5. Our QC&QA team will start inspection pre-prouct about the material, the processing during produce and after finished. Finally we will release a report to our clients.
Q6. Is there any warranty on the quality of your products?
A6. Yes, it based on what kinds of products and where you will used, most over than 1 year, some items warranty up to 10 - 20 years.
Q7. Do you support discount?
A7. It based on the quantity, volume discounts available for large commercial orders.
Q8. What is your terms of payment ?
A8. It is flexible, we accept T/T,L/C,Paypal and the other terms.Open to discuss.
