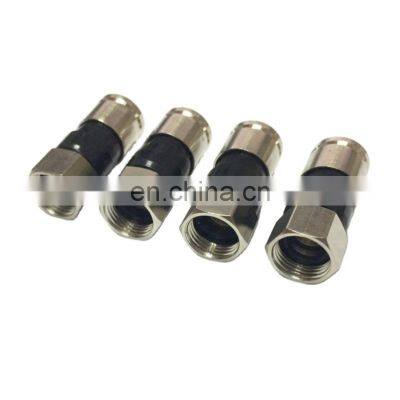

Tanghu F Terminal Crimp Rg6 Coaxial Cable RF Connector
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2014
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cat6 Cat 5 UTP Network Cable 305M a Roll High QualityNegotiableMOQ: 1 -
Tenda AC23 Wireless WiFi Router Smart Bandwidth Control With 6dBi Antenna Dual Band GigabitNegotiableMOQ: 1
-
IP Network to Coaxial Camera Transmission Extension Cable 500 Meters Elevator Monitoring DigitalNegotiableMOQ: 1
-
Optical Fiber Termination Distribution Box Fiber Optic Rack Mount Box OTB ODBNegotiableMOQ: 1
-
200 Meters/roll Bare Fiber Optic Cable Protection Sleeves Bare Fiber Protection Tube 4MM*5MMNegotiableMOQ: 1
Recommend Products
Product Description

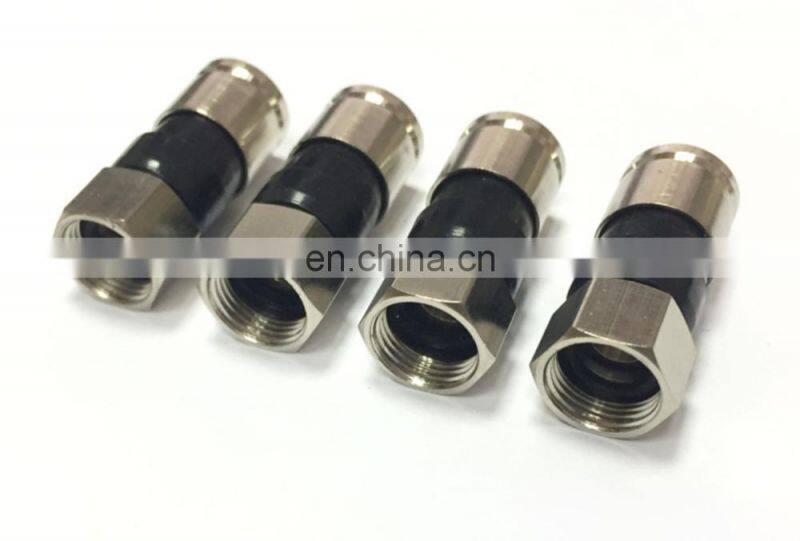

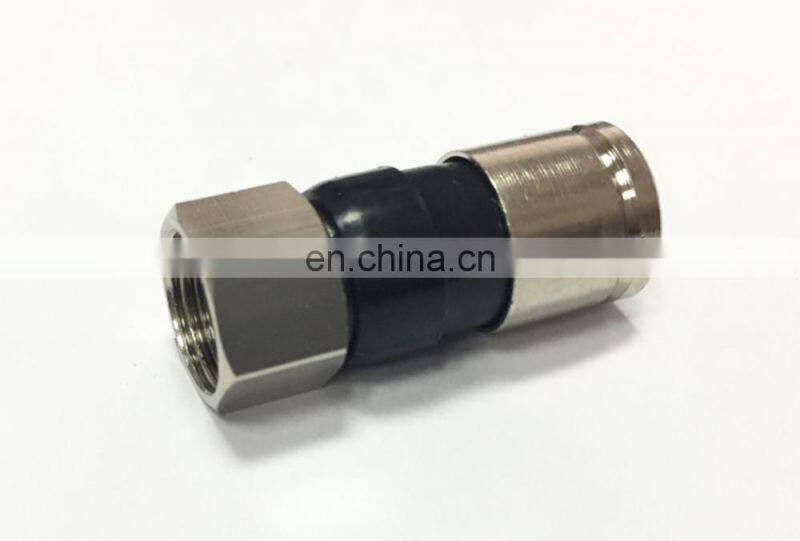

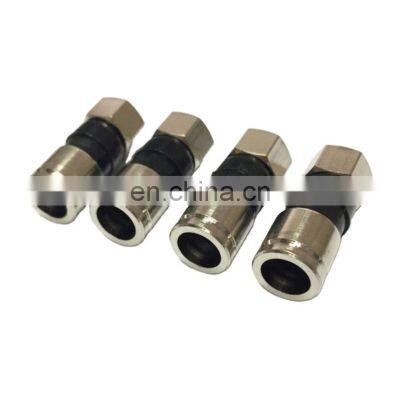

F terminal crimp rg6 coaxial cable RF Connector
RF coaxial cable assembly (7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM)
We focus on coaxial assemblies
We focus on coaxial assemblies
Our custom RF cable assemblies are built-in and shipped worldwide
RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA,
SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as
BNC, F, N, SMB, SMC, TNC and mini SMB
RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/
RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications
If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department
F type joining devices use for 75 Ω cable assign system, especially CATV, broadcast television network, It can already be used for having impedance to mate the occasion required, can be used in not mating the occasion too. It is joined, inserts helping jointly that its characteristic is whorl , the price is suitable. F type joining devices can exchange and use with the similar products in the world. FL10 products are M10X0.75 whorl, the structure, performance are the same as F type.
RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA,
SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as
BNC, F, N, SMB, SMC, TNC and mini SMB
RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/
RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications
If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department
F type joining devices use for 75 Ω cable assign system, especially CATV, broadcast television network, It can already be used for having impedance to mate the occasion required, can be used in not mating the occasion too. It is joined, inserts helping jointly that its characteristic is whorl , the price is suitable. F type joining devices can exchange and use with the similar products in the world. FL10 products are M10X0.75 whorl, the structure, performance are the same as F type.
Temperature range | -40~+60°C |
Vibration | 100m/s2 (10~500Hz) |
Impedance | 75 OHM |
Frequency Range | DC – 1GHz |
Working Voltage | 170V max |
Break-down Voltage | 500V rms @ sea level |
Contact resistance | ≤0.1 OHM @ inner contact ≤0.5 OHM @ outer contact |
Average power | 3KW max |
Insulation resistance | ≥10000M OHM |
VSWR | ≤ 1.2 |
Durability (mating) | ≥500 (cycles) |
Body | Brass | Nickel plated / Alloy plated |
Inner Pin | Brass | Gold plated |
Resilient Contact | Beryllium Copper | Gold plated |
Socket Contact | Beryllium or tin bronze | Gold plated |
Insulator | PTFE | |
Crimp Ferrule | Copper alloy | Nickel / Gold plated |
O-ring sealing | Silicone Rubber |
