Home > Products > POE Fiber Optic Switch > 2021Tanghu High Quality 8 Port Poe Switch With 2FE Uplink Port Fast Ethernet Switch
2021Tanghu High Quality 8 Port Poe Switch With 2FE Uplink Port Fast Ethernet Switch
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Tanghu Durable Managed 8 Port Gigabit Industrial POE Switch
-
Telecom Equipment FTTH 2 In 2 Out Dome Type 12 24 48 Core Fiber Optical Splice Closure
-
12 24 48 72 Core 2 In 2 Out Dome Type Fiber Optic Splice Joint Box
-
Outdoor Waterproof 2 In 2 Out 12 24 48 Core Dome Type Fiber Optical Splice Closure
-
Mini Fiber Optic Splice Closure FTTH 2 In 2 Out 12 Core Fiber Optic Splice Joint Closure
-
Waterproof Junction Box 24 48 96 144 Core 2 In 2 Out Horizontal Cable Fiber Optic Joint Splice Closure
Product Description
Recommend Products
Product Description

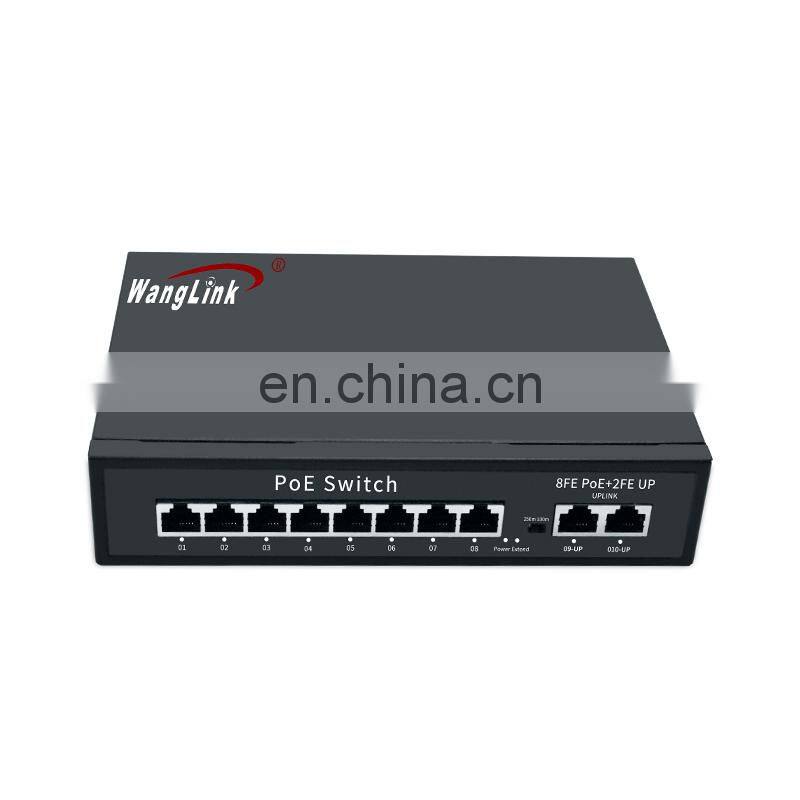

10/100Mbps 8 port Ethernet Network POE Switch with 2*10/100Mbps UPLINK POE ethernet switch
This product Wanglink 10/100Mbps 8 port Ethernet Network POE Switch with 2*10/100/1000Mbps UPLINK POE ethernet switch provided 8 ports 10/100M switch, including 1-8ports support PoE,IEEE 802.3af /at ISO, Single port power supply power 15.4W, total power 125W, you can choose to insert 8 ip-based ieee802.af/at international standard POE devices, like a wireless access point AP or a network surveillance camera based on IP, can automatically detect PoE terminal device compatible with IEEE802.3af/at, the maximum performance can be 10 times faster than fast Ethernet by standard 5 Ethernet cable transmission power and data, and reduces energy consumption by 60% and is very convenient and flexible. Integration of data exchange and Ethernet power supply reduces cable and eliminates the need to connect power outlets and minimize installation costs. With 2 uplink connections, it is good for network development.
Product description | 10/100Mbps 8 Port + 2 *10/100 Mbps Uplink Poe Switch |
Model No. | WOR-8FE-2FE-POE |
Port description | 8*10/100Mbps POE port (all ports support MDI/MDIX self-adapting)2*1000Mbps uplink port |
Network media | 100BASE-TX: ≥Cat 5 UTP (≤100m) |
Network protocol | IEEE 802.3 I; The IEEE 802.3 u; IEEE 802.3 x Flow Control; IEEE 802.1 af/at DTE Power via MDI |
Performance | Backboard bandwidth: 8Gbps (no blocking) Forwarding mode: store forward (can be forwarded by line speed) MAC address list: 1K |
POE | 1-8 port support for IEEE802.3 af (15.4 W) network power supply Standard: IEEE 802.3 af/at (port output power 15.4 W Type: terminal straddle method (optional middle span) Port: 15.4w per port power (IEEE802.3 af/at) Wire core: 1/2 +, 3/6 - line pair (optional: 4/5 +, 7/8-line pair) Total power for POE: 125W |
Environmental | Working temperature: - 30 ° C ~ 70 ° C Storage temperature: - 35° C ~ 75 ° C Working humidity: 5% ~ 95%(no condensation) |
Power supply | External power adapter (input AC100-240V 50/60Hz; output 52V 1. 8A / 52V 2. 3A) |
Weight | NW: 0.36KG GW: 0.76KG |
Size | Device: 195*82*29mmPacking: 235*220*60mm |
Company Introduction
Shanghai Tanghu Optical Fiber Equipment Co., Ltd. is a high-tech enterprise specializing in the production of optical communication products, with nearly 20 years of industry experience.At present, the company has passed the ISO9001 certification,has two production bases in Shenzhen and Xuzhou, and has a large modern warehouse in Shanghai.The company covers an area of 20000 m2, with more than 500 employees and annual sales of more than 300 million RMB.
Company has roboticized production and testing equipment, since its inception, the company has been committed to product innovation and R&D, the products include cable, patch cord, optical transceiver, POE switch, OPM, VFL, optical fiber fusion splicer, optical divider, fiber boxes, etc., which are widely used in the plot construction of campus network, security, monitoring, radio and television transmission, FTTH, etc.
The products are exported in large quantities to more than 60 countries and regions including the USA, Australia, India, Russia, Brazil and South Africa and so on, providing innovative technologies and product solutions for global telecom operators and enterprise network customers, and enabling users around the world to enjoy all-round communication such as voice, data, multimedia and wireless broadband.
Exhibition
Product Shipping
Shippment
-By sea
-By plane
-By International couriers, TNT, DHL, FEDEX, UPS, etc.
Standard Export carton
1.Inner Package: Neutral brown cartons.
2.Outer Package: Internationally standard package cartons with 5
layers and thinplastic film surround the cartons.
layers and thinplastic film surround the cartons.
Customer feedback
FAQ
Q: What about delivery time?
A: We have big warehouses in Shanghai, also in Shenzhen factory, providing instant delivery service. Most products can be
delivered within 3~7 days.
Q: What is your warranty period?
delivered within 3~7 days.
Q: What is your warranty period?
A: We provide one year of unconditional warranty on our products for the manufacturing defects.
Q: Why should we buy from you?
Q: Why should we buy from you?
A: We are committed to provide best quality products at minimum delivery time and competitive price. We believe this is what customer wants. We are satisfied until customers are.
Q: Can you provide OEM, ODM service?
Q: Can you provide OEM, ODM service?
A: Yes. We have factories in Shenzhen and Xuzhou, we can make products according to your requirements.
Q: Do you provide free samples?
A: Yes, but the buyer should bear the shipping costs.
Q: What is your payment terms?
A: We accept Alibaba Trade Assurance, Western Union, Paypal, T/T, L/C, etc.
A: We accept Alibaba Trade Assurance, Western Union, Paypal, T/T, L/C, etc.
