Automatic Screw Tightening Machine Screw Making Machine Prices Screw Machine Automatic
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2002
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Custom Machine Automatic Screw Tightening Machine Screw Making MachineNegotiableMOQ: 1 -
Machinery Industry Equipment Screw Press Machine Screw Machine AutomaticNegotiableMOQ: 1
-
Automatic Screw Machine Screw Making Machine Prices Automation Equipment Screw Making MachineNegotiableMOQ: 1
-
Other Fabrication Services Automatic Screw Tightening Machine Screw Making MachineNegotiableMOQ: 1
-
Custom Machine Other Fabrication Services Screw Making MachinNegotiableMOQ: 1
Automatic Screw Tightening Machine screw making machine prices Screw Machine Automatic
Details Images
Product manual |
Brand Name | zhenhe |

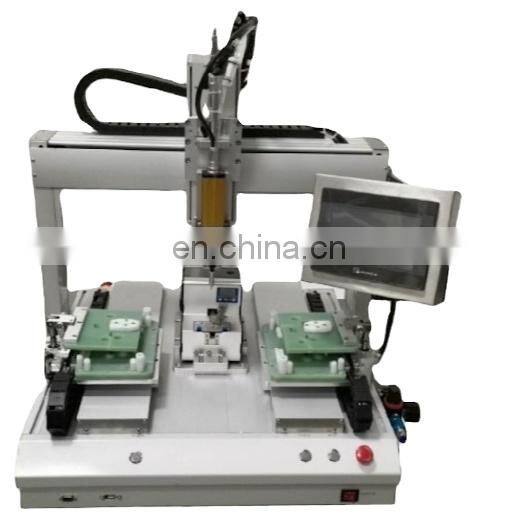

MODEL | JH-LS5441 Suction type automatic locking screw machine |
Electric screwdriver for locking screws | Intelligent servo electric batch |
Control System | Touch screen control + handheld box control |
Machine stroke range X/Y1/Y2/Z (MM) | 500/400/400/100 |
Screw feeder | A turntable screw feeder |
Maximum load | 10KG |
Moving speed (MM/sec) | 0-800 |
Time to lock a screw | 0.4 seconds-1.5 seconds |
Repeatability accuracy | ±0.01MM/Axis |
motor | Servo motor (rated speed 3000r/min, maximum speed 6000r/min) |
Linear Guides | Bank of Taiwan |
transfer method | Synchronous belt/screw |
Alarm function | Screw floating lock/screw sliding teeth/screw leaking lock |
Suitable range of screws | M0.8-M6.0 |
Input power | Full voltage AC220V |
External control interface | RS 232 |

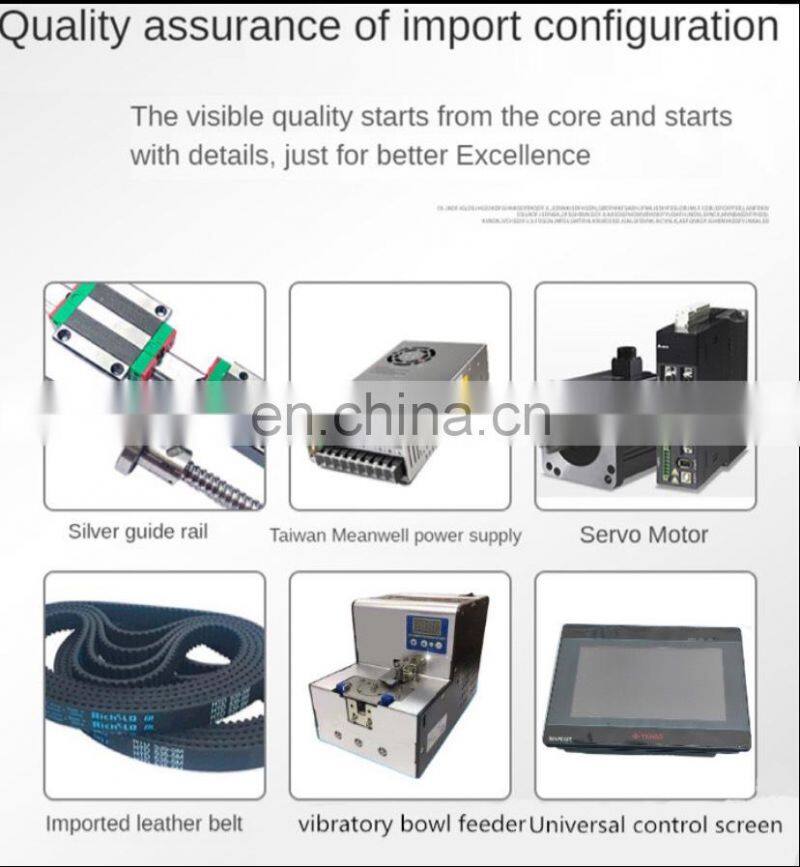

What we use is a high-precision smart electric batch |
More professional, more accurate, faster |

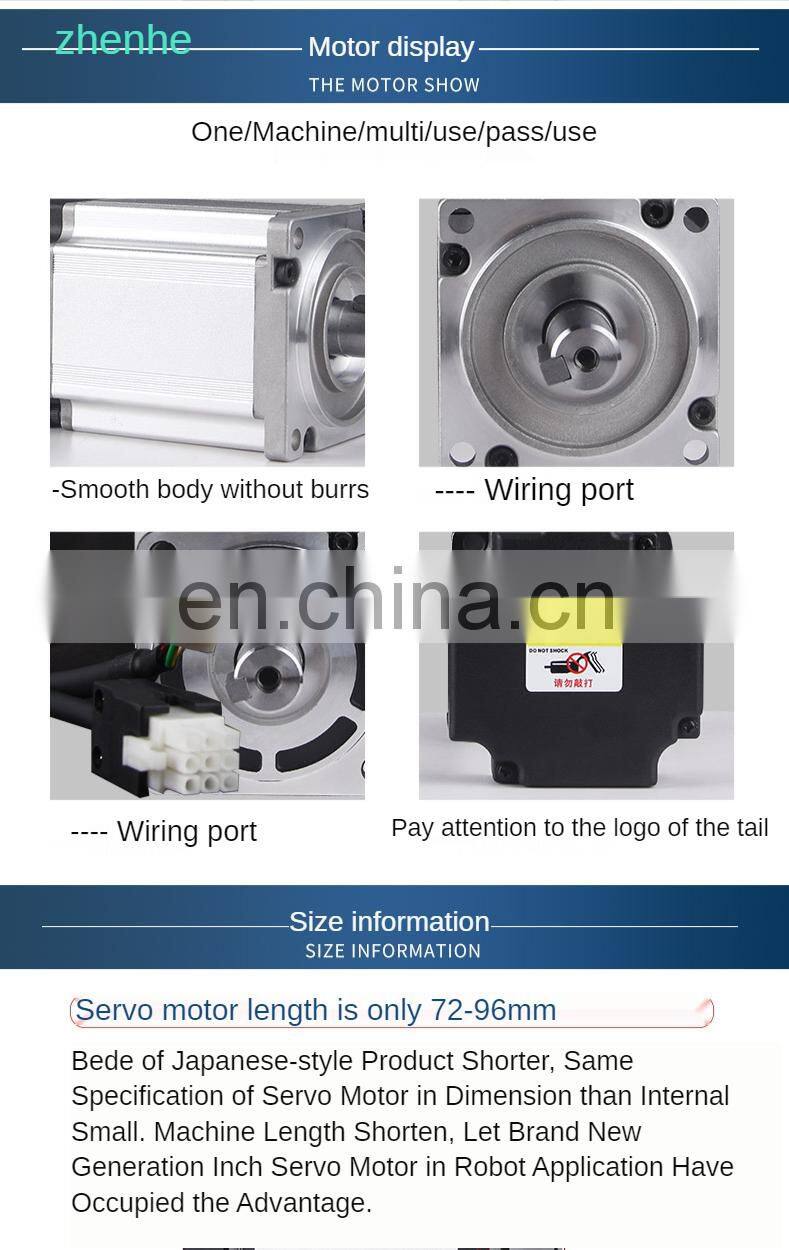

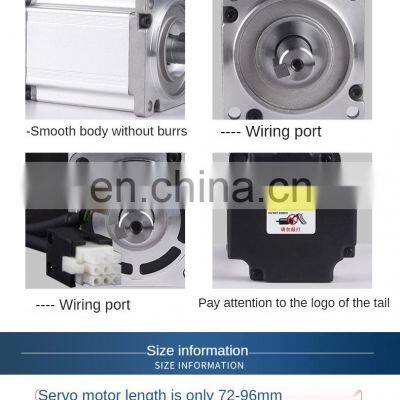

High-precision, high-efficiency servo motor |
Applicable industry
Our Factory
Products successfully traded by manufacturers
Company Profile
Zhenhe (dongguan) Mechanism Engineering Technology Co., Ltd.
We are a professional manufacturer of more powerful automation equipment in China,
with 17 years of automated production solutions.
The professional and precise small screw automatic locking screw machine (M0.8-M6.0) is outstanding in the industry.

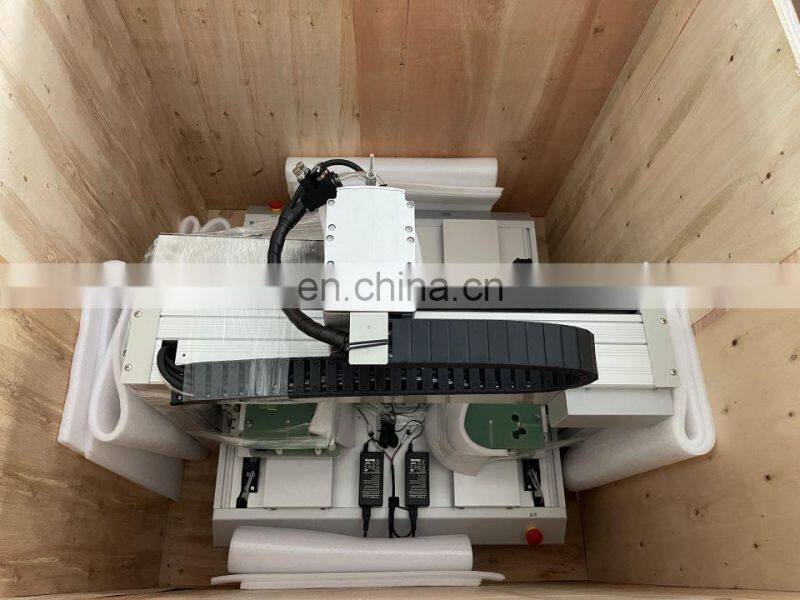

Packing & Delivery
