1800-9000L/H Moble Insulating Oil Filtretion Plant Vacuum Transformer Oil Filter Machine
Product Description
Product Name :

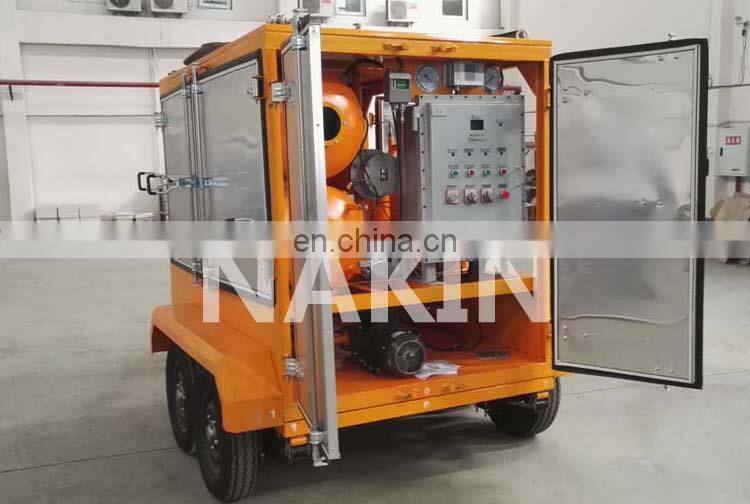

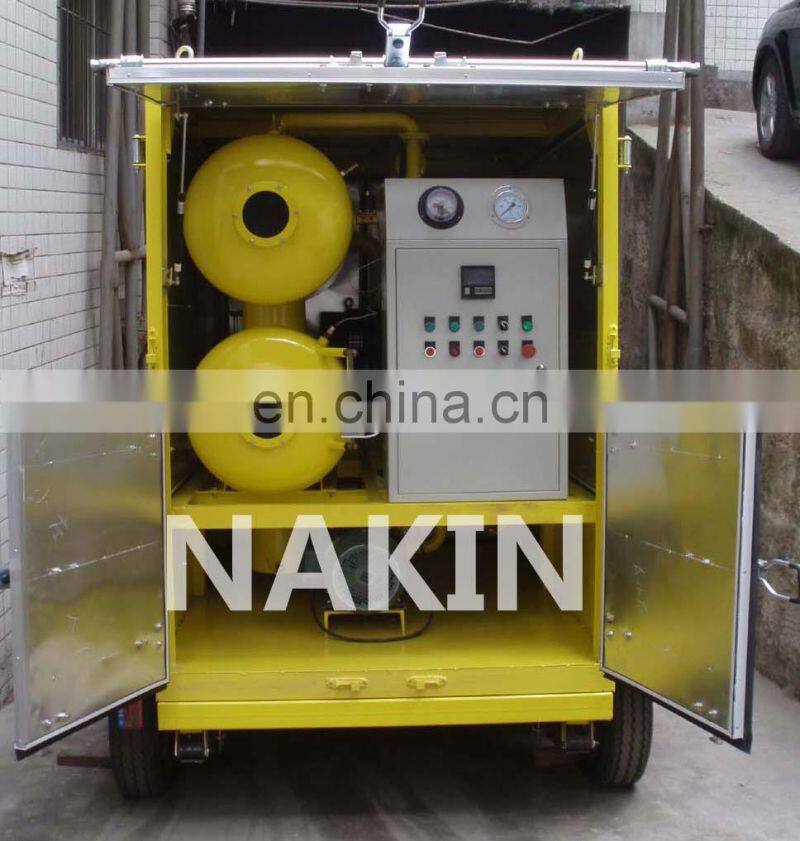

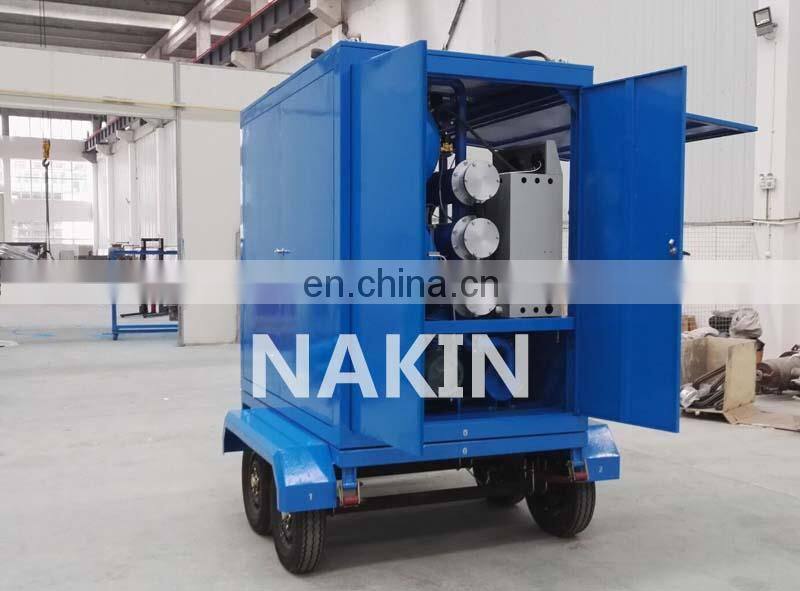

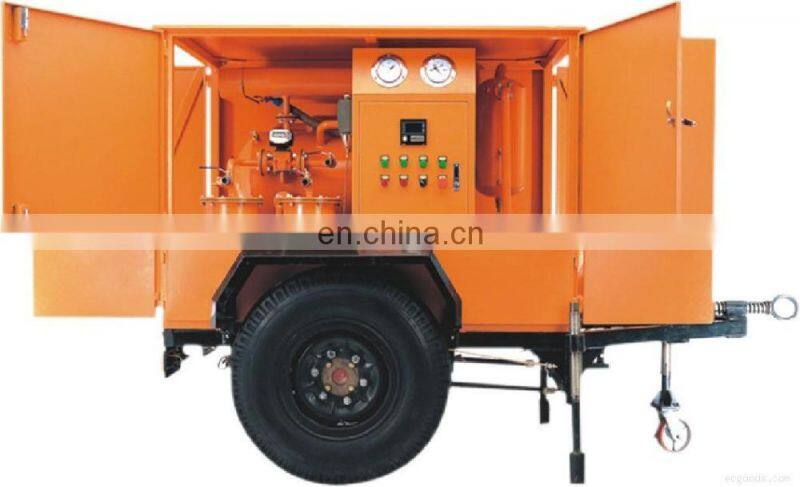

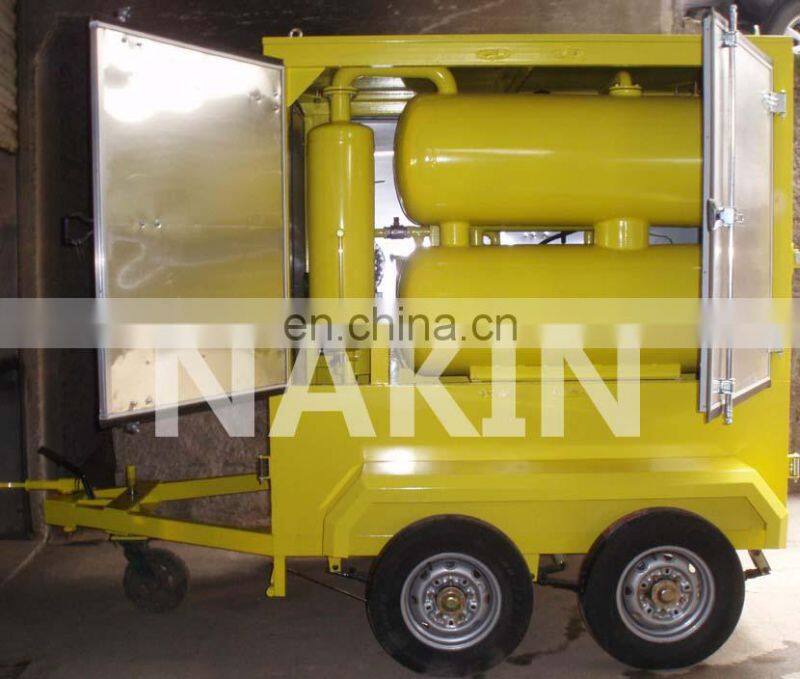

◆ ZYM Trailer-Type Insulating Oil Purifier

Application:
◆ According to field work requirements, the ZYM series trailer-type insulating oil vacuum oil purifier developed by our company has the characteristics of convenient movement, rapid transfer, rainproof, dust-proof, etc., it is especially suitable for oil filtering operations during field power maintenance. ZYM trailer oil purifier is a double-stage vacuum oil purifier, which can quickly and effectively remove moisture, gas (acetylene, hydrogen, methane, etc.) and impurities from the insulating oil, to restore and improve the insulating oil. The filtered oil can effectively ensure the safe and normal operation of power equipment. This machine also has the functions of vacuum drying, vacuum oil injection, and hot oil circulation. It can also be used as a separate vacuum pumping unit to vacuum the transformer and power equipment.

Features:
◆ The vacuum system uses the roots pump as the main pump and the rotary vane vacuum pump as the primary pump. It has fast start-up, large pumping speed, stable performance, and high ultimate vacuum of less than 5Pa.
◆ Double horizontal vacuum separators, combined with Duplex-Stereo film evaporation technology
◆ Strong ability to remove impurities: ultra-large area cylindrical precision filter element, with high filtration accuracy, easy
installation and replacement.
◆ Low-load heating: Adopt advanced internal and external double-tube heat radiation indirect heating technology.
◆ Automatic controlto realize unattended, safe and stable working.
◆ Safety interlock protection for oil pump, vacuum pump, heater to keep safely working
◆ Low noise, easy operation, long maintenance interval, low energy consumption, low operating cost
◆ It can be used together with the insulation oil regeneration device, which has the effect of decoloring, deacidification,
deoxidation and removing free carbon and other harmful substances from the oil.


Optional Device:
A.Optional PLC automatic control
B- Imported parts (optional imported brand vacuum pumps, motor oil pumps, filter elements, electrical components, instruments)
C- flow meter (optional)
D- Configure the frequency conversion system to realize the flow selection when filtering or filling (optional)
E-On-line micro-water meter (optional)
F- Pirani Digital Vacuum Gauge (optional)


Oil Index After Treatment
Index
Unit
ZYM-30
ZYM-50
ZYM-65
ZYM-100
ZYM-150
Flow rate
L/H
1800
3000
4000
6000
9000
Working vacuum
MPa
-0.08～-0.099
Working temperature
MPa
≤0.4
Working temperature
℃
20 ～80
Power supply
380V 50HZ,3Ph (or According to user demand)
Working noise
dB(A)
65～85
Heating power
Kw
24
30
48
60
90
Total power
Kw
27.5
35
53
65
98
Inlet / outlet
mm
25
32
40
40
50
purifier weight
kgs
650
700
750
950
1100
Trailer weight
kgs
350
350
400
550
600
Purifier Dimension(mm)
L
1500
1500
1650
2000
2200
W
1400
1400
1400
1800
1800
H
1600
1600
1700
1800
1800
Trailer dimension(mm)
L
2800
2800
3000
3200
3300
W
1600
1600
1600
2000
2100
H
1000
1000
1000
1000
1000
After Purification
Breakdown Voltage
KV
≥ 70
Water Content
ppm
≤ 3
Gas Content
%
≤ 0.1
Particles
µm
≤ 1
