Three Phase Voltage Protector 63A 220V 3P+N Over Under Voltage Current Limiter Adjustable Voltage Protective
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
63A 220V Din Rail Adjustable Recovery Reconnect Over and Under Voltage Protective Device Protector Relay Over Voltage ProtectionNegotiableMOQ: 1 -
Dual Display 40A 63A 230V Din Rail Adjustable Digital Over Under Voltage Relay Surge Protector Limit Over Current ProtectionNegotiableMOQ: 1
-
Dual Display 63A 230V Din Rail Adjustable Digital Over Under Voltage Relay Surge Protector Limit Over Current ProtectionNegotiableMOQ: 1
-
63A 230V Din Rail Adjustable Over Voltage And Under Voltage Protective Device Protector Relay Over Current Protection LimitNegotiableMOQ: 1
-
40A 63A 220V Din Rail Adjustable Recovery Reconnect Over and Under Voltage Protective Device Protector Over Voltage ProtectorNegotiableMOQ: 1
Parameters
Functions:
1.Over-voltage Adjustable protection
2.Under-voltage Adjustable protection
3.Over-Current Adjustable protection
4. Asymmetry protection
5.Phase squence protect
6.Automatic time Adjustable recovery
Product Parameters:
| Code | Parameter | Value |
| P1 | Power On Time | 1-500S |
| U1 | Over Voltage | 230-300V |
| U2 | Recovery Voltage | 220-295V |
| U3 | Recovery Time | 1-500S |
| U4 | Power Off delay Time | 0.1-30S |
| U5 | Under Voltage | 140-210V |
| U6 | Recovery Voltage | 145-215V |
| U7 | Recovery Time | 1-500S |
| U8 | Power Off delay Time | 0.1-30S |
| U9 | Voltage Deviation | -9.5 to 9.5% |
| U10 | Asymmetry | 20-99V |
| U11 | Phase squence protect | on/off |
| C1 | Over Current | 3-63A |
| C2 | Recovery Time | 1-500S |
| C3 | Power Off delay Time | 0.1-30S |
| C4 | Current Deviation | -9.5 to 9.5% |
| C5 | Continues Over Current Times | 1-20 off |

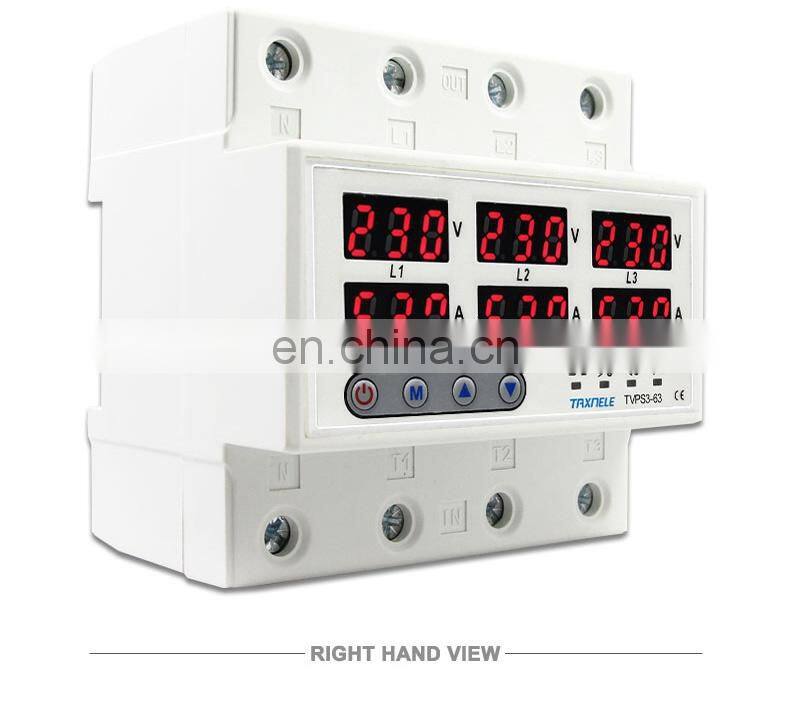

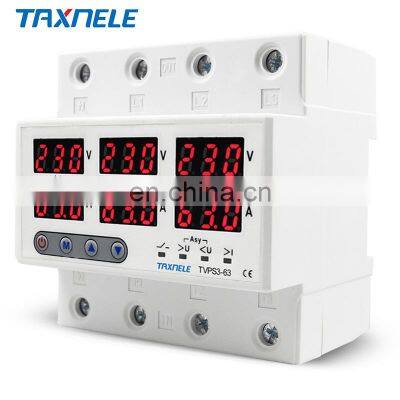

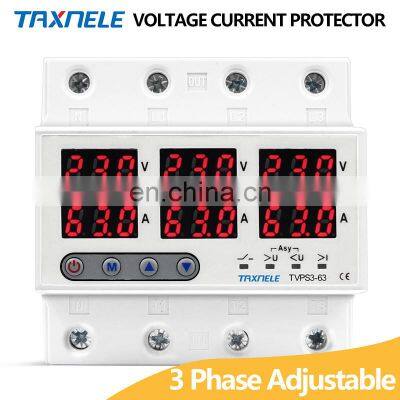

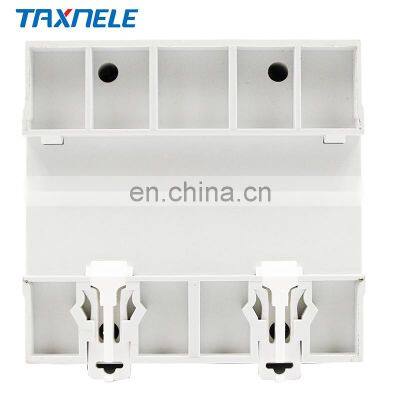

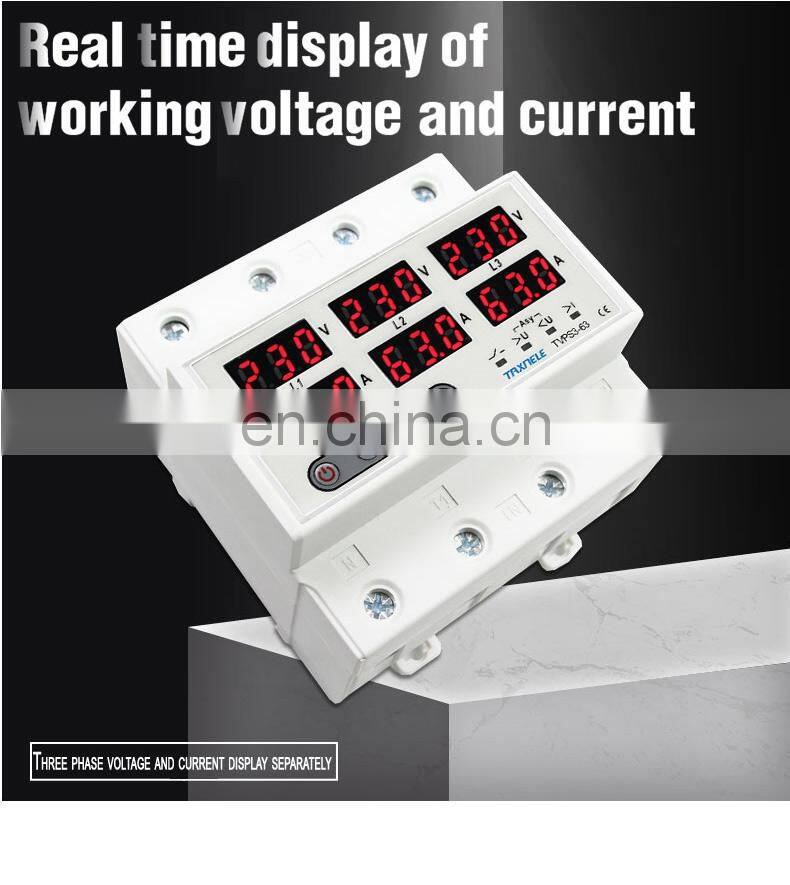

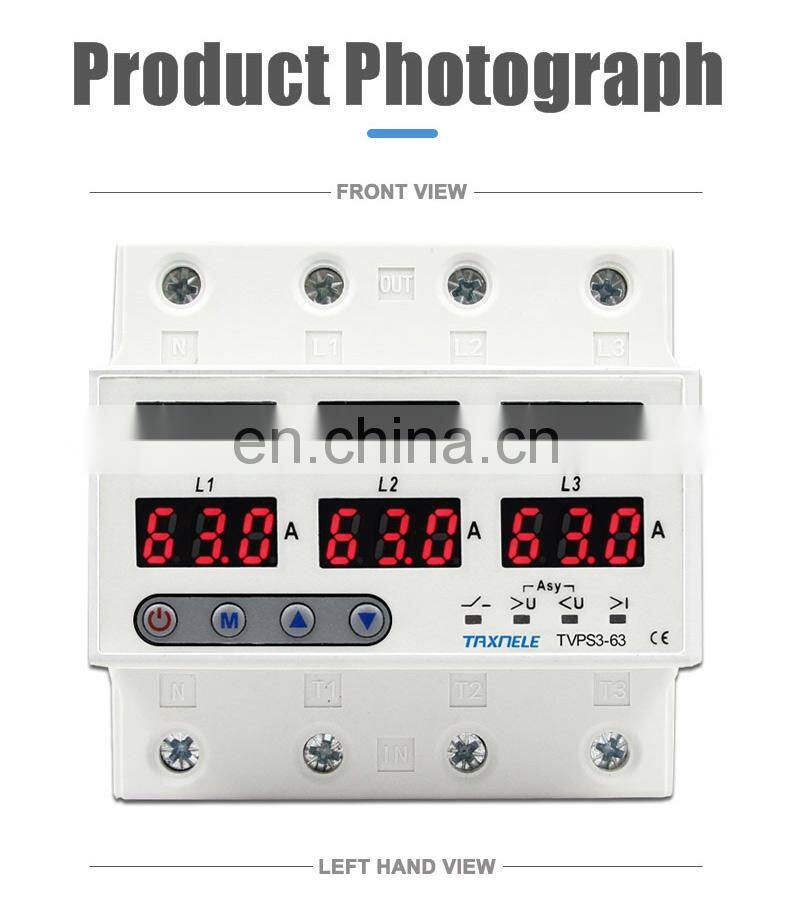

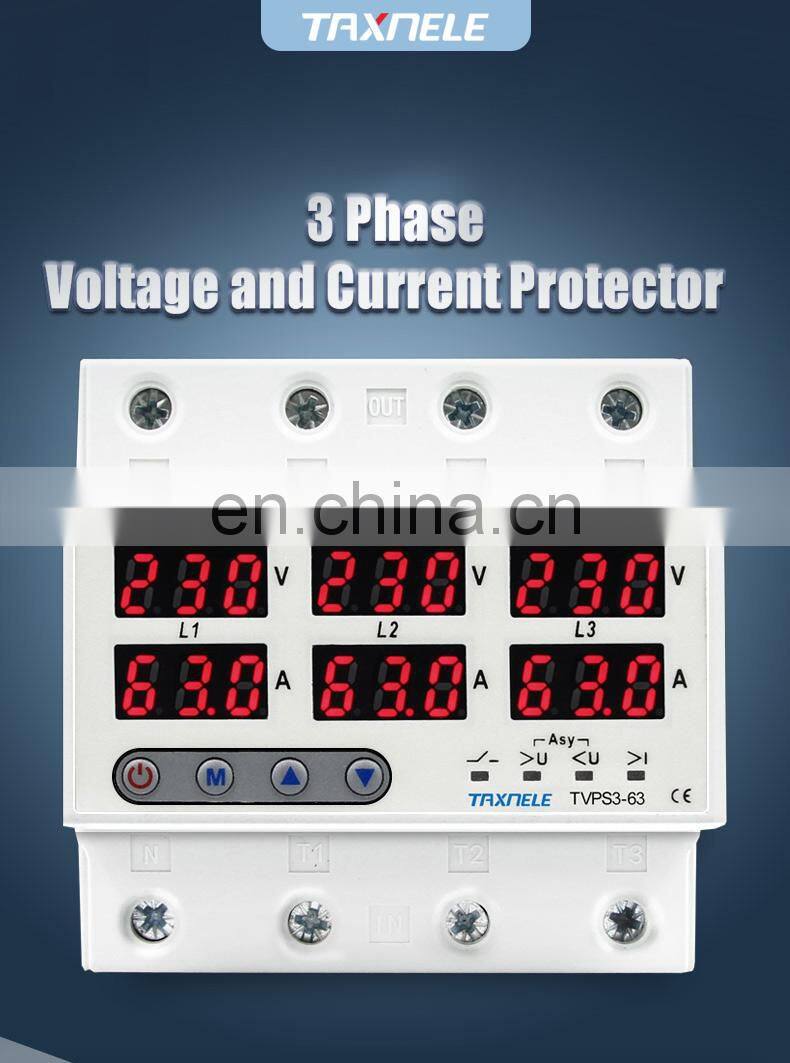

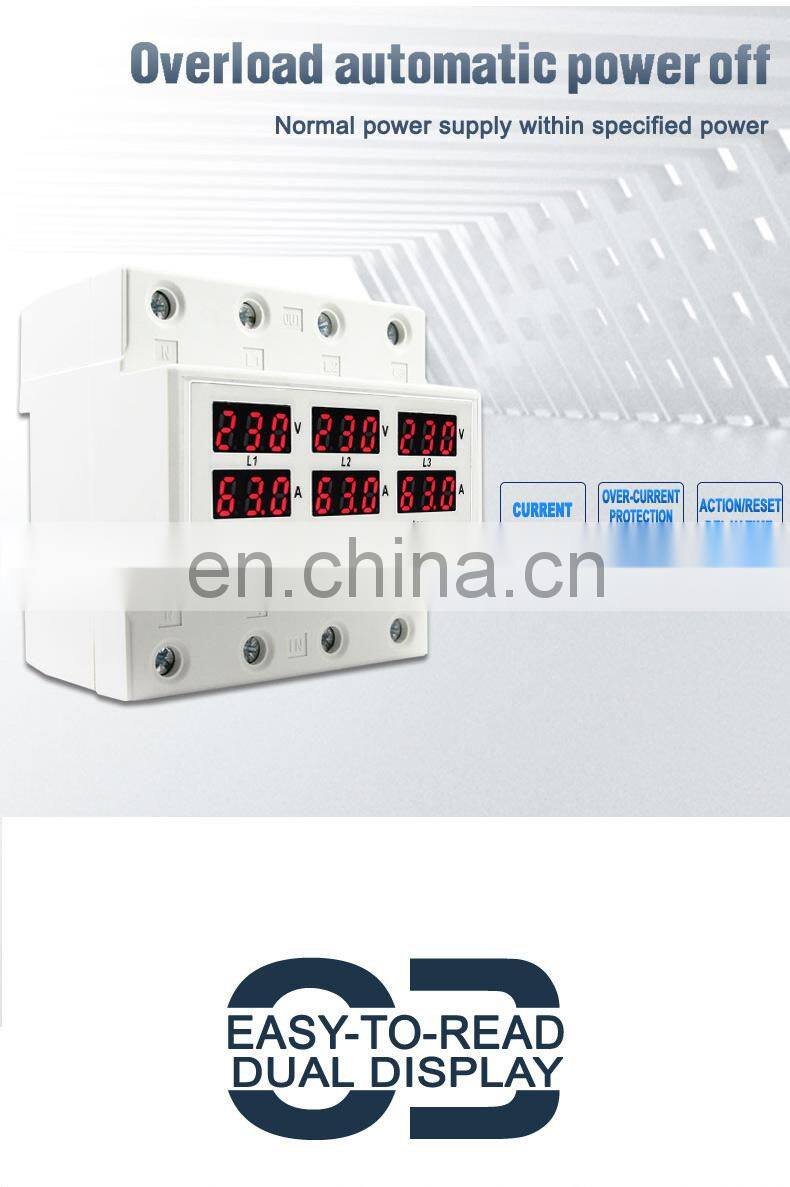

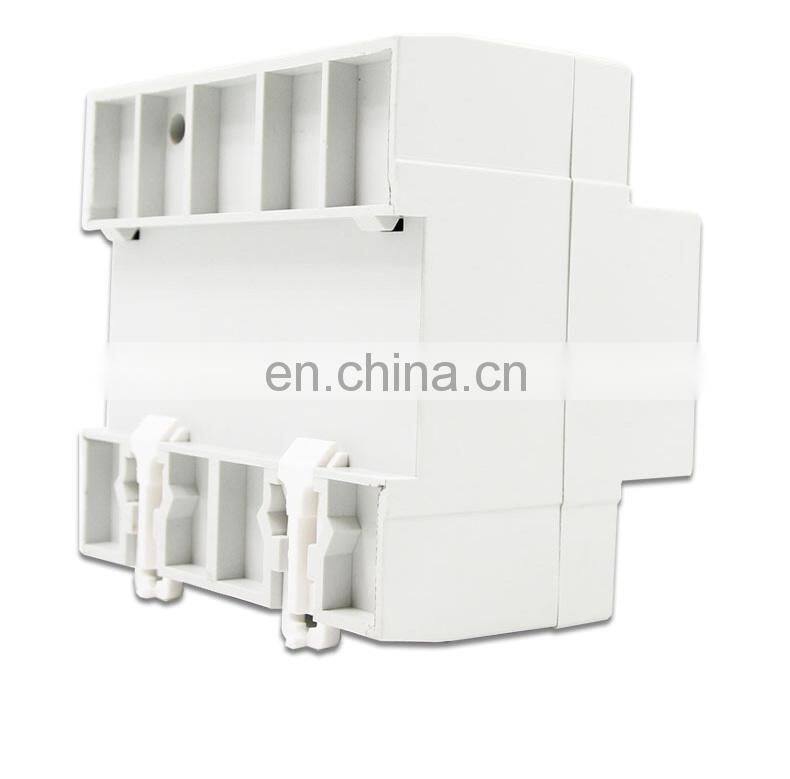

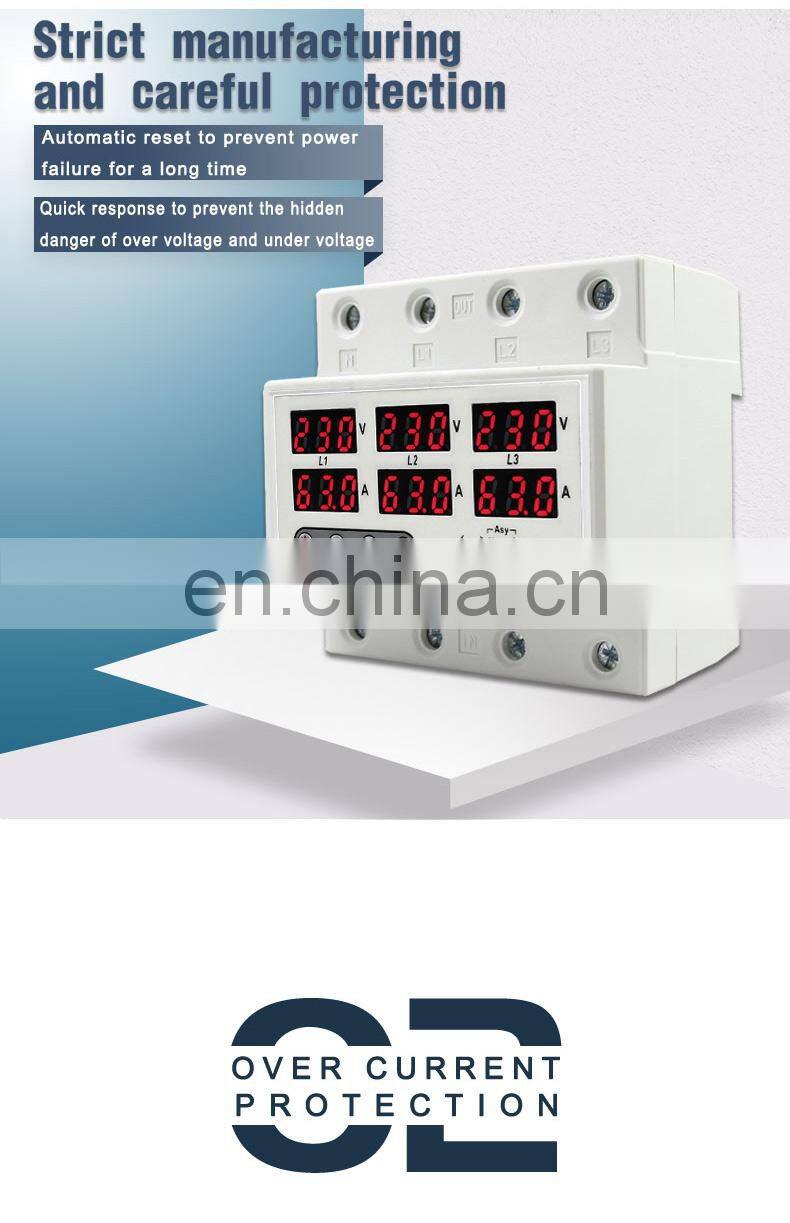

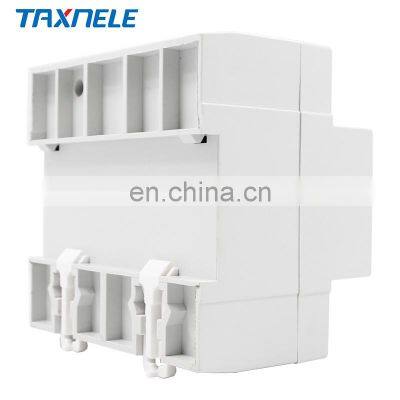

Product display
