Home > Products > Contactor/Circuit Breaker > CJX9-1P 40A 30A 240/277V AC Air Conditioning Magnetic Contactor For Air Condition

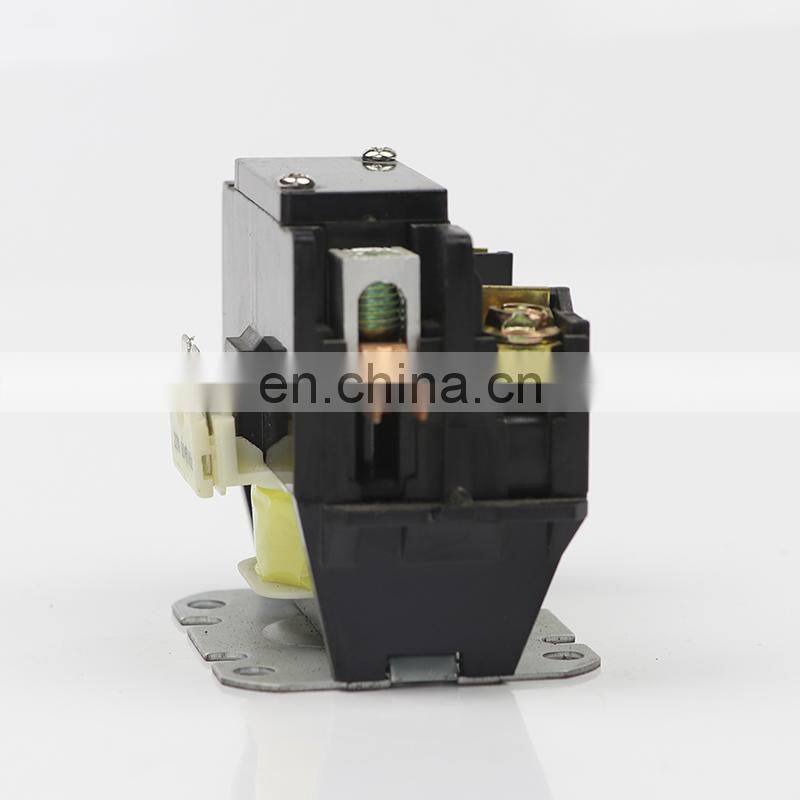

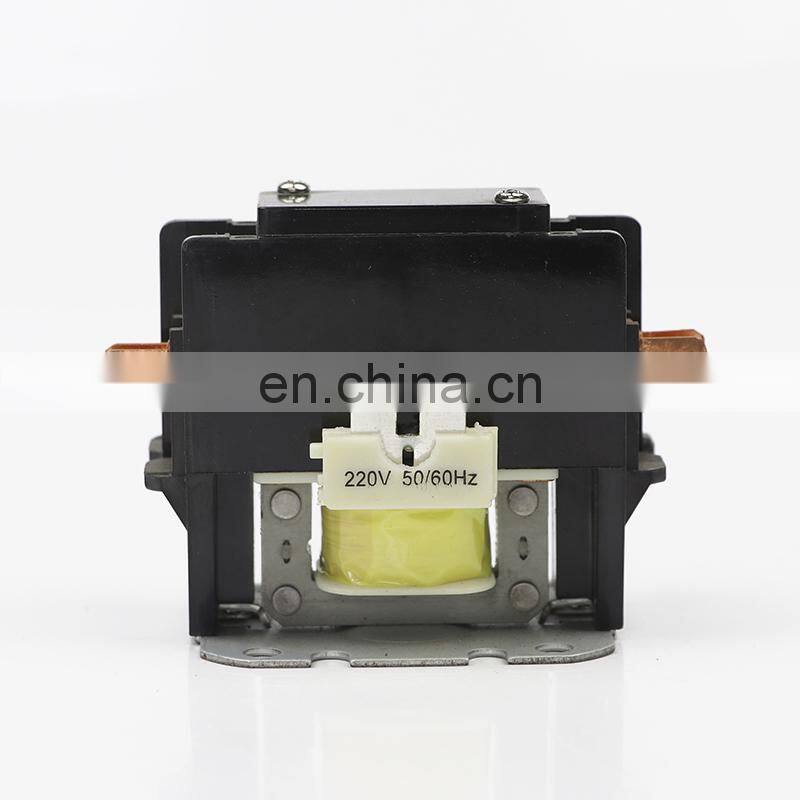

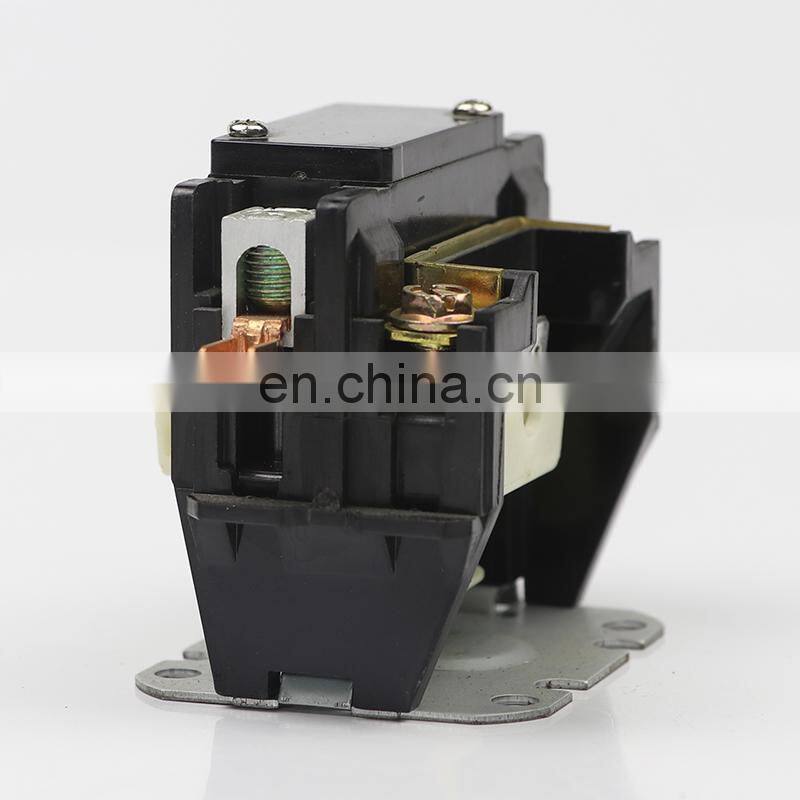

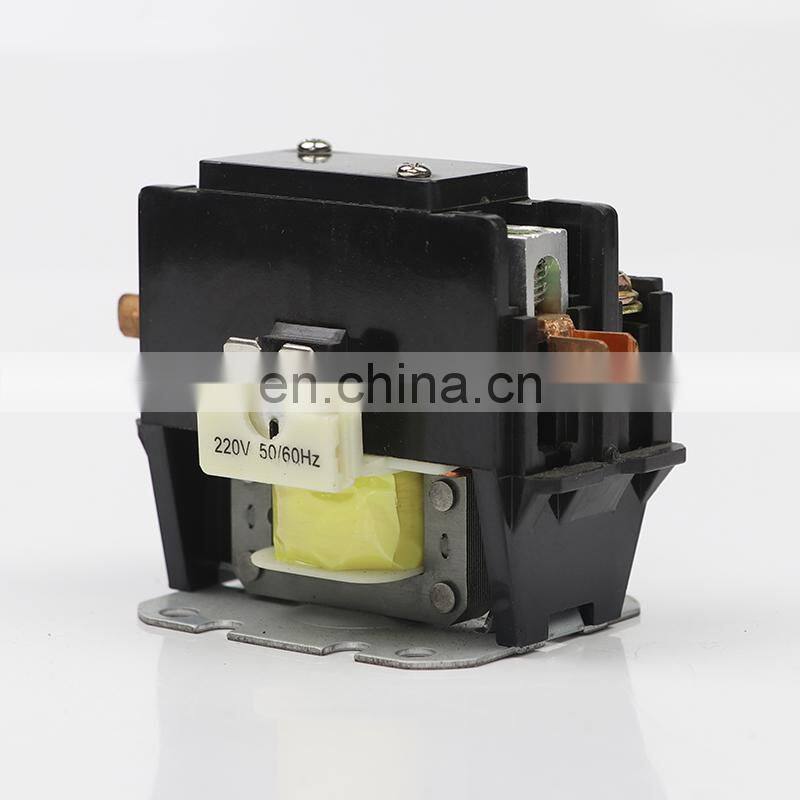

CJX9-1P 40A 30A 240/277V AC Air Conditioning Magnetic Contactor For Air Condition
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
MNX MNX9 MNX18 Temecanique AC Contactor, Electrical Power AC Contactor
-
MC-32A AC Contactor Three Phase 32A, 3 Pole AC MC Contactors Magnetic Telemecanique Contactor
-
Air Conditioner Contactor 1P-30A/40A-220V Definite Purpose Contactor 1P 30A/40A AC Contactor Coil , Air Conditioning Protector
-
MC-50A AC Contactor Three Phase 50A, 3 Pole AC MC Contactors Magnetic Telemecanique Contactor
-
LA2-DT0 LA2-DT2 LA2-DT4 LA2-DRS LA2-DR4 LA2-DR2 LA2-D Time Delay Auxiliary Contact Block for LC1-D Contactor
-
2P 16A 20A 25A 220V/230V 50/60HZ Household Din Rail AC Contactor Modular Manual Control Home AC Contactor 2NO 2NC 1NO1NC
Product Description
parameters
| NAME | AC Air Conditioning Magnetic Contactor |
| Standard | IEC/EN 60947-4-1 | |||||
| Product | Air Conditioning Contactor | |||||
| Model | Full Load Amps | Resistive Amps 600VAC | Locked Rotor Amps 240/277VAC | Locked Rotor Amps 480VAC | Locked Rotor Amps 600VAC | Coil Voltage |
| 1 Pole Contactor | ||||||
| CJX9-1P | 20A | 30 | 120 | 100 | 80 | 24V;120V;208/240V;277V |
| CJX9-1P | 25A | 35 | 125 | 125 | 100 | |
| CJX9-1P | 30A | 40 | 125 | 125 | 100 | |
| CJX9-1P | 40A | 50 | 160 | 160 | 120 | |
| 2 Pole Contactor | ||||||
| CJX9-2P | 20A | 30 | 100 | 100 | 80 | 24V;120V;208/240V;277V |
| CJX9-2P | 25A | 35 | 125 | 125 | 100 | |
| CJX9-2P | 30A | 40 | 125 | 125 | 100 | |
| CJX9-2P | 40A | 50 | 160 | 160 | 120 | |
| 3 Pole Contactor | ||||||
| CJX9-3P | 20A | 30 | 120 | 100 | 80 | 24V;120V;208/240V;277V |
| CJX9-3P | 25A | 35 | 150 | 125 | 100 | |
| CJX9-3P | 30A | 40 | 180 | 150 | 100 | |
| CJX9-3P | 40A | 50 | 240 | 200 | 120 | |
| CJX9-3P | 50A | 44 | 300 | 250 | 200 | |
| CJX9-3P | 60A | 75 | 360 | 300 | 240 | |
| CJX9-3P | 75A | 90 | 450 | 375 | 300 | |
| CJX9-3P | 90A | 120 | 540 | 450 | 360 | |
| 4 Pole Contactor | ||||||
| CJX9-4P | 30A | 40 | 180 | 150 | 120 | 24V;120V;208/240V;277V |
| CJX9-4P | 40A | 50 | 240 | 200 | 160 | |
