22mm Waterproof Metal Push Button Switch Self Latching Self Momentary Annular Power Symbol With Lamp
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
22mm Metal Button Switch Waterproof Circular Ring Belt Lamp Self-locking Reset Switch Stainless Steel 12V24V.
-
22mm Emergency Stop Button Switch 1NO 1NC Waterproof Stainless Steel Mushroom Metal Aluminum Latching Button Switch
-
22mm 12v 24v Waterproof Metal Push Button Electrical Switch Latching Momentary Annular Power Symbol With LampLed Indicator
-
1NO 1NC XD2PA12 XD2PA22 2NO 2NCXD2PA14 XD2PA24 Momentary Latching Toggle Joystick Switch Controllers, Monolever on off Switch
-
16mm Start Horn Button Momentary Stainless Steel Flat Head Metal Push Button Switch 1NO 2pin Reset Button Switch Waterproof
-
Auto Wire Connector 1 2 3 4 5 6 Way 1P 2P 3P 4P 5P Car Connector Male Female Waterproof Electrical Connector Plug With Cable
Product Description
1.) parameter
| Model Description | |
| Model NO. | LB-22B metal push button switch |
| Mounting diameter | 22MM |
| Head shape | Plat Head/High Head |
| Switch Combination | 1NO 1NC |
| Operation type | Momentary/self locking |
| Illuminating type | Annular,power symbol,dot |
| Illuminating color | red,green,blue,yellow,orange,white,purple,pink |
| Lamp voltage | 2V/3V/6V/12V/24V/36V/110V/220V/250V |
| Shell material | Stainless steel,aluminum oxide,copper plating |
| The Others Parameters | |||
| Project | Parameter | Project | Parameter |
| Contact type | Slow moving single contact | Operation Schedule | Connected:1.5mm,Total:3.5mm |
| Contact Resistance | ≤50mΩ | Actuating Force | about 8N |
| Insulation Resistance | ≥1000mΩ | Mounting panel thickness | ≤13mm. customised the others |
| Dielectric Strength | 1000VAC min | Nut torque | 5~14N.m |
| Ambient Temperature | -30℃~+80℃ | Outshell/Press Key
|
Stainless Steel/aluminum oxide/copper plate
|
| Protection Levels | IK10 | Diffuser | PC |
| Electrical Life | Rated:2A250VAC- 100,000 times Rated:5A250VAC-50,000 times Rated:8A250VAC-20,000 times Reated:10A250VAC- 20,000 times | Nut
Base Seat/ Bottom Seat | Nickel brass
PA66 |
| Mechanical Life | Maintained-200,000 times Self-locking-800,000 times |
Pins Contact | PA66 H65 Silver Plated |
| Waterproof | IP67 | Spring | Improved steel wire |

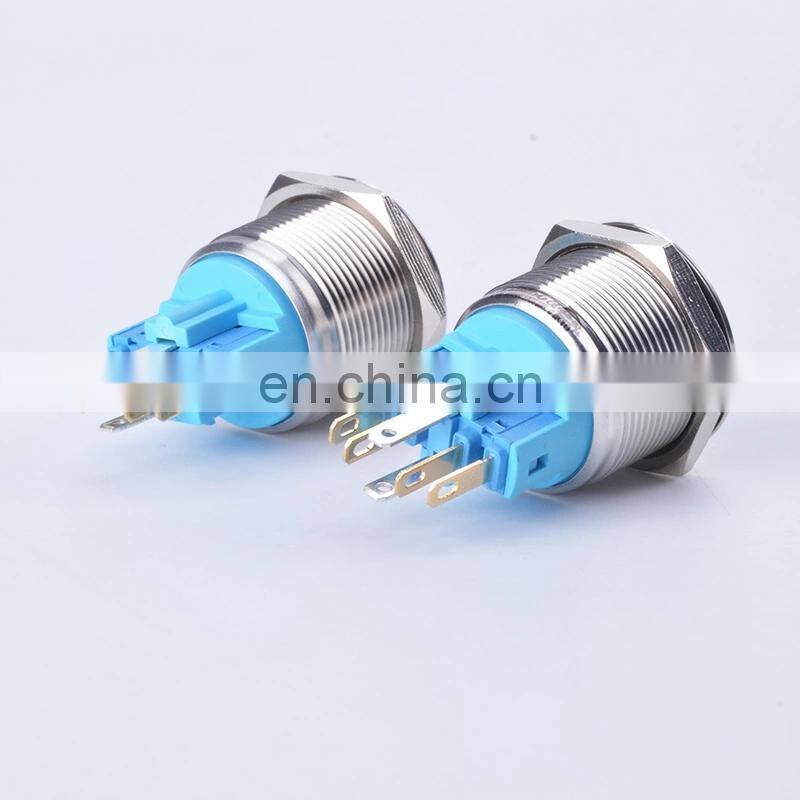

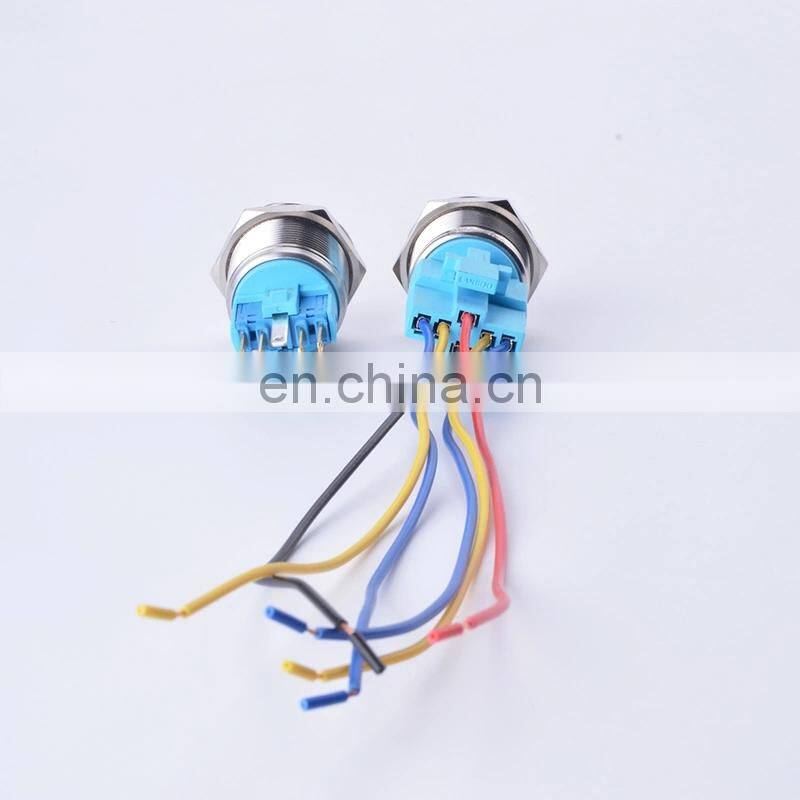

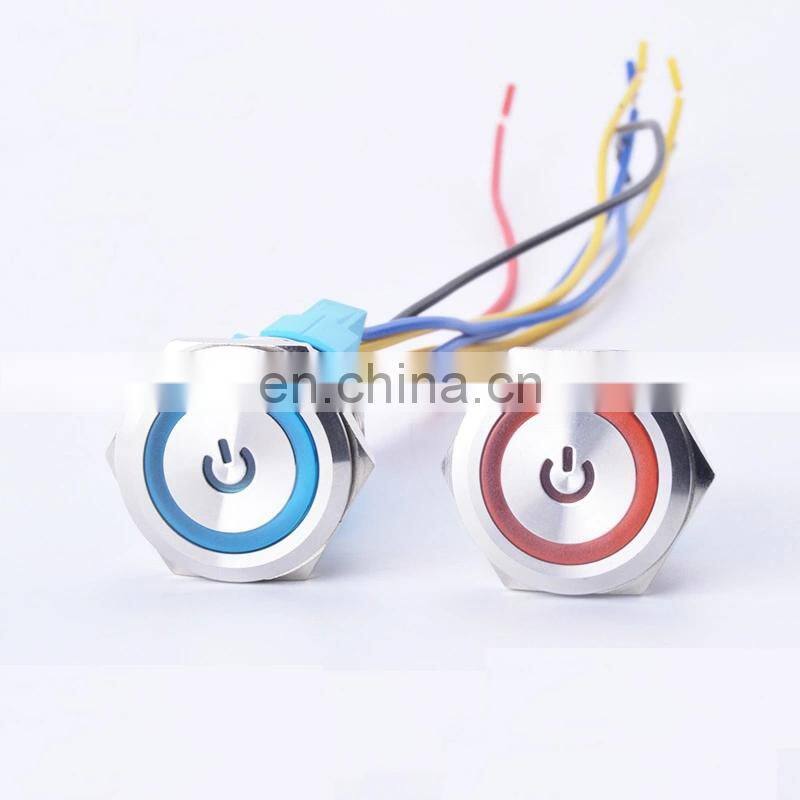

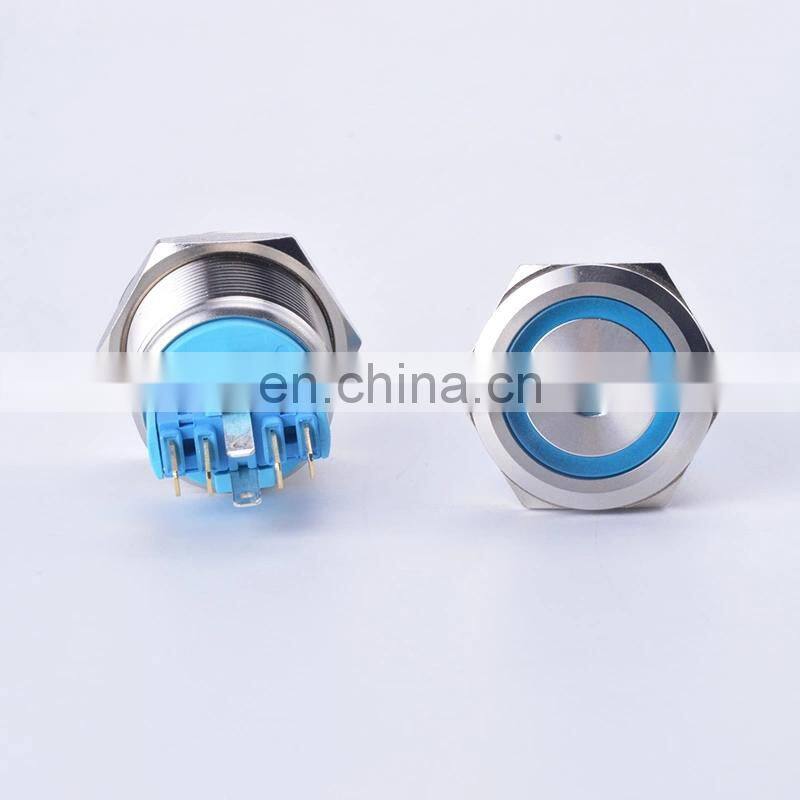

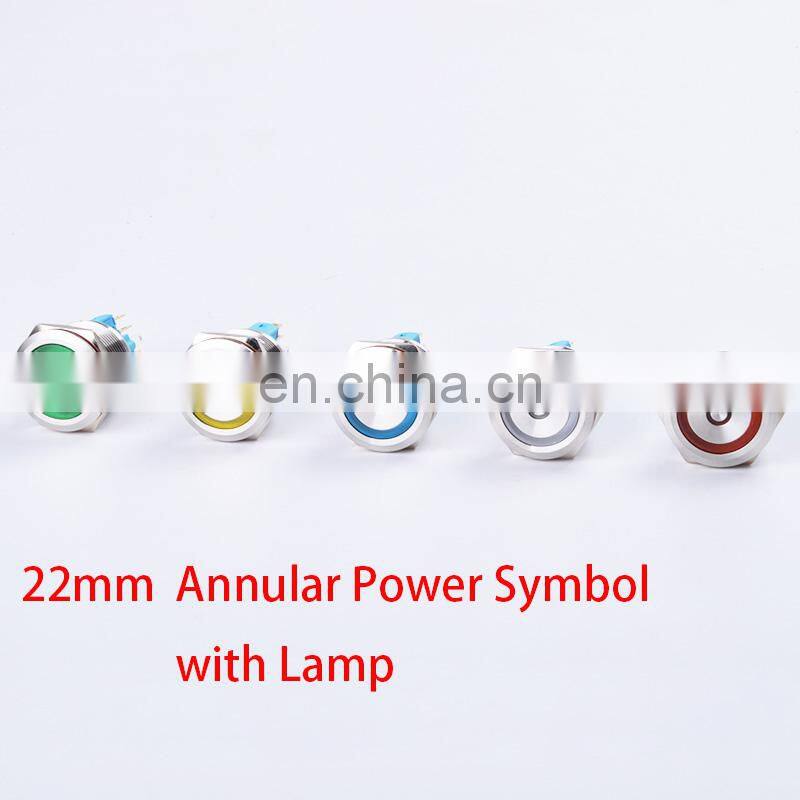

2.) product display
