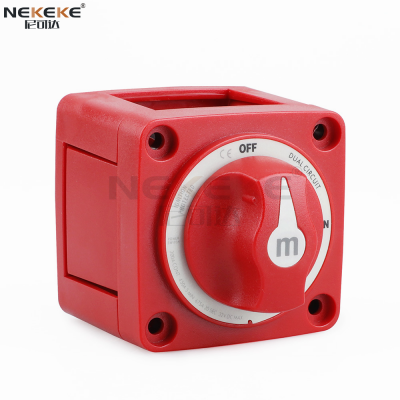

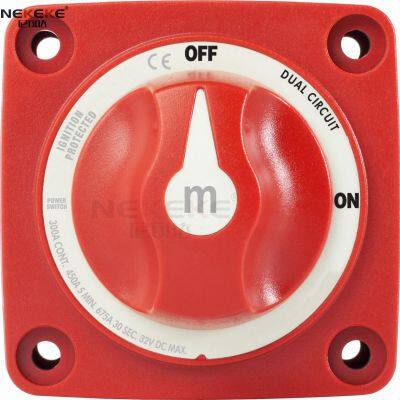

Help Center6010 / 6010200 Dual Circuit Battery Switch New Style Blue Sea System
Related Products
-
Nekeke 6700 Dual Battery Switch New Style Blue Sea Systems for Boat PartsUS$ 11 - 20MOQ: 10 Pieces -
NEKEKE Dual Battery Voltage Sensitive Relay 160 AMP Heavy Duty Selector Switch Disconnect for Marine Boat Rv VehiclesUS$ 10 - 20MOQ: 10 Pieces
-
NEKEKE Car Marine Boat 200A Battery Selector Isolator Disconnect Cut On-Off Kill SwitchUS$ 16 - 20MOQ: 10 Pieces
-
NEKEKE 12/24V Rotary Master Disconnect Switch Cut Off Auto Car Heavy Ducty Brass Screw Battery SwitchUS$ 10 - 20MOQ: 10 Pieces
-
12V Battery Isolator Disconnect Cut Off Power Kill Switch for Truck Car Boat ATVUS$ 10 - 20MOQ: 10 Pieces
Features
• Simultaneously switches two isolated battery banks or circuits. May be used to switch the positive and negative conductors for required applications.
• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Studs accept 3/8" (M10) ring terminals
• One-piece terminal stud design never loosens over time
• Isolating cover with three snap-off side pieces protects rear contacts and allows wire access in any direction

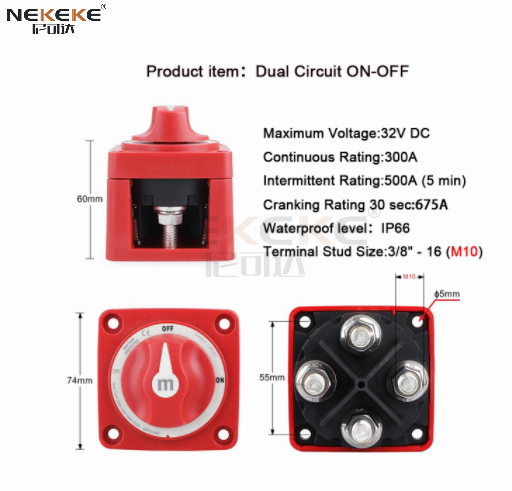

Specifications
Cranking Rating: 30 sec. 675A DC per circuit
Intermittent Rating: 5 min. (UL 1107) 450A DC per circuit
Continuous Rating: 300A DC per circuit
Terminal Stud, Tin-Plated Copper 3/8"-16 (M10)
Torque : 120 in-lb (13.56 N·m)
Cable Size to Meet Ratings* 4/0 AWG (120 mm²)
Maximum Voltage Rating: 32 Volts DC
Ignition Protected ce marked
Product Description
Our advantages
Service:
1.Good communication
2.Good after-sale services
3.Reliable quality and competitive prices
4.Convenient transportation and fast delivery.
5.One stop source, all related products requirements can be sourced from our company.
