Perimeter Security Welded Mesh Airport Fence

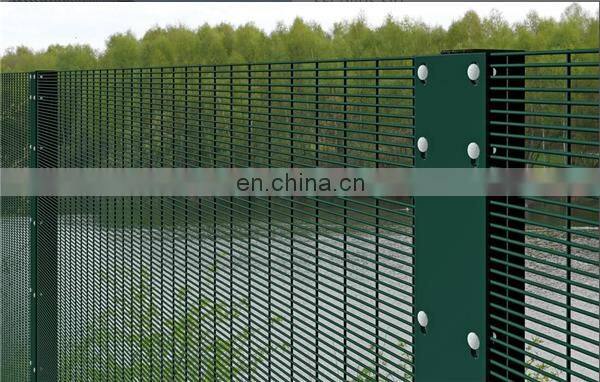

358 extra high security mesh fence made from a type of strong welded mesh panel with small mesh opening. It is extremely difficult to penetrate and difficult to attack using conventional hand tools. Has the features of anti-climbing and anti-cutting. The fence name 358 comes from its panel mesh opening 3" × 0.5" × 8 gauge - approximate to 76.2 mm × 12.7 mm × 4 mm mesh opening.
358 mesh fence Features:

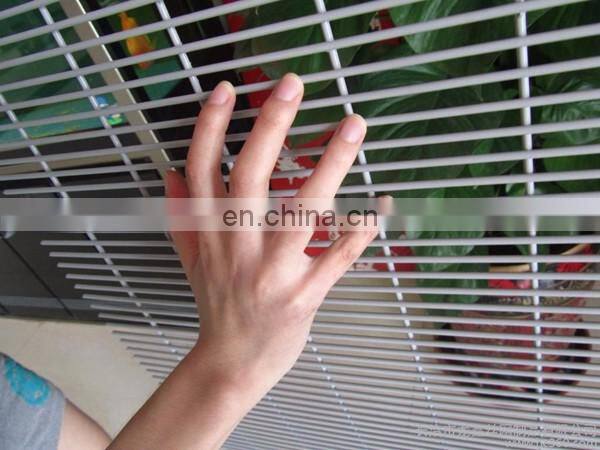

Anti-climbing: more small openings, no toe or finger holds.

Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters.

High strength welded at each intersection.

Durable: covering Galfan and polymer powder coating ensure a long service life.

Mesh fencing specially configured to provide maximum visibility, especially used for emergency and electronic detection systems.

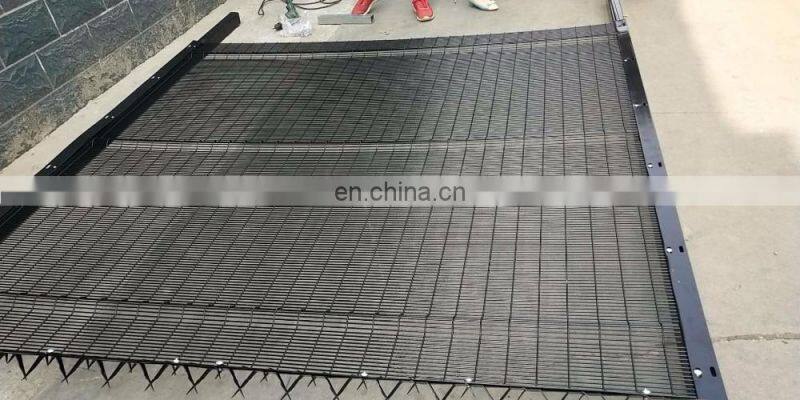

The panels are made of heavy mesh with a high level of security in width 2515 mm and a height of 2007 mm to 3302 mm. Several panels can be installed on top of each other. Thus may be achieved a total height of 6300 mm.

358 mesh panel size

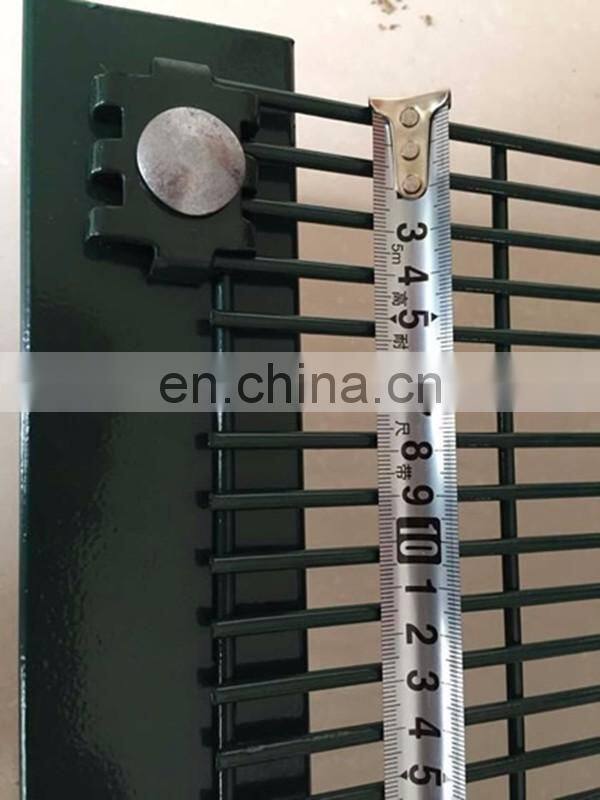

Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5") resistance welded well at each intersection.
Wire diameter: 4 mm horizontal wire and vertical Wire.
Weld strength: range 540–690 N/m2.
Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.
Colors: Green RAL 6005, or Black RAL 9005.

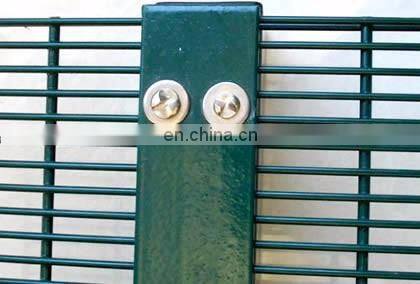

Installation: Overlapped 75 mm minimum at each post (See pictures 358M-05 and 358M-06) for securing with slotted clamp bars and M8 diameter bolts.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Fence posts
Material: high grade steel for maximum strength and rigidity.

Post section: 60 × 60 mm, 80 × 80 mm, 100 × 100 mm or 120 × 120 mm.

Post Plate thickness: 2.5/3.0/4.0/5.0 mm.

Finish: inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron ).

Colors: Green RAL 6005, or Black RAL 9005.

Post cap: metal caps or plastic cap.

Metal clips and clamps are hot dip galvanised then powder coating in green or black color.

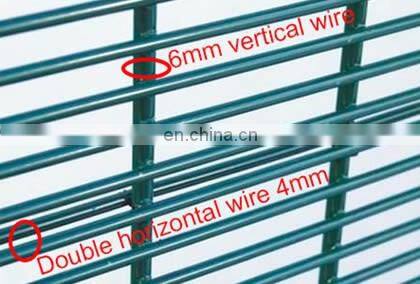

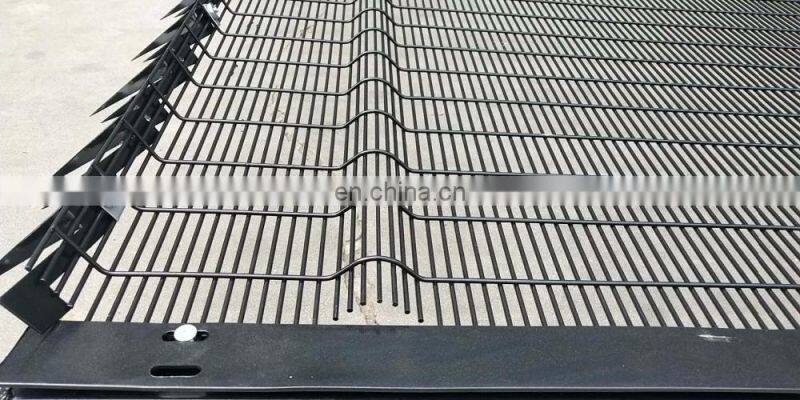

2D Security Fencing with 4 mm double horizontal wire and 6 mm vertical wire for greater strength.

This panels increase strength by 6 mm vertical wire and additional 4 mm wires at 152.4 mm centres on the inside face. So it has double horizontal wires at 152.4 mm centres. This structure makes the fence panel very rigid and has a higher level of strength and security than common 358 mesh fence. 2D Security Fencing is widely used for schools, industrial sites, infrastructure, and high security areas.

2D security fencing Specifications

Mesh opening: 76.2 mm × 12.7 mm welded at each intersection.

Horizontal wires: 4 mm diameter at 12.7 mm centres on the attack face, and intermittent 4 mm double wires at 152.4 mm centres on the inside face.

Vertical wires: 6 mm diameter at 76.2 mm centres.

The post has a single row of M8 threaded inserts which allow the panels to be but fitted with specialised pressed steel brackets and are pitched at 2.55 m centres.

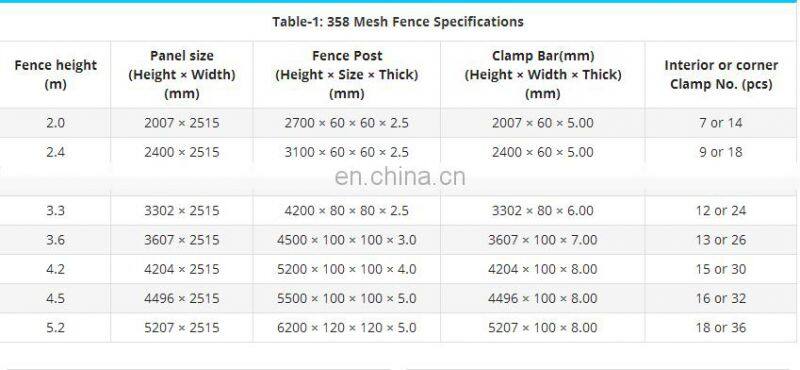

Panel width, height, finish, fence post and clamps is the same to 358 mesh fence, please see table-1.
