high security Signal base station powder coated W Section triple pointed Metal palisade fence
Specifications
palisade fencing panels D section palisade fencing W section palisade fencing high security palisade fencing
Palisade fencing
Standad UK BS1722 Part 12:2006.

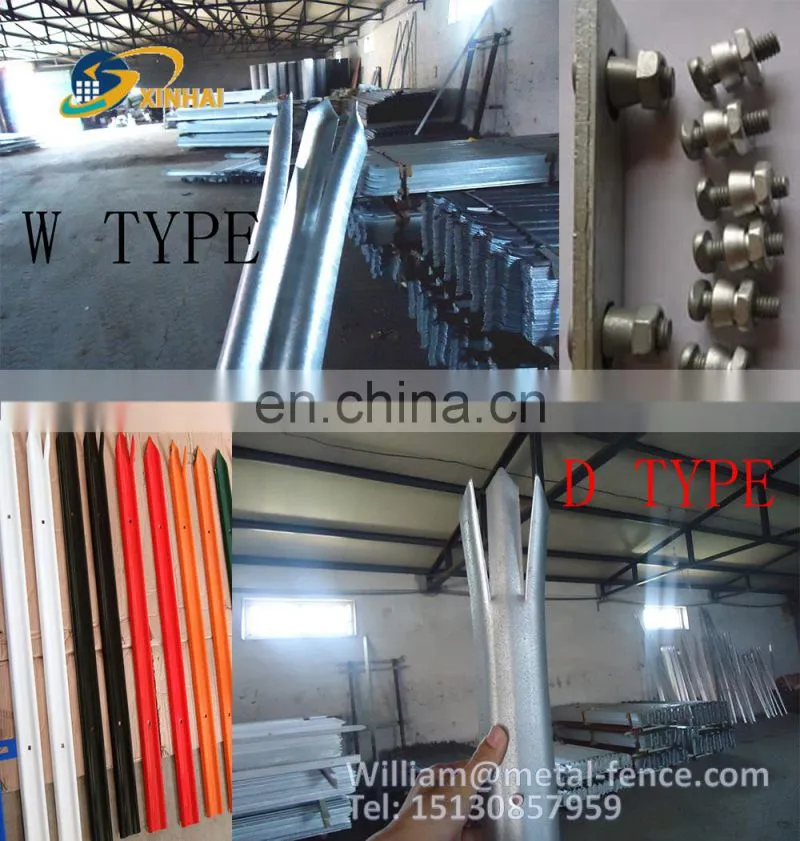

Palisade Fencing Pale Section Type :
1). Pales-"D" section

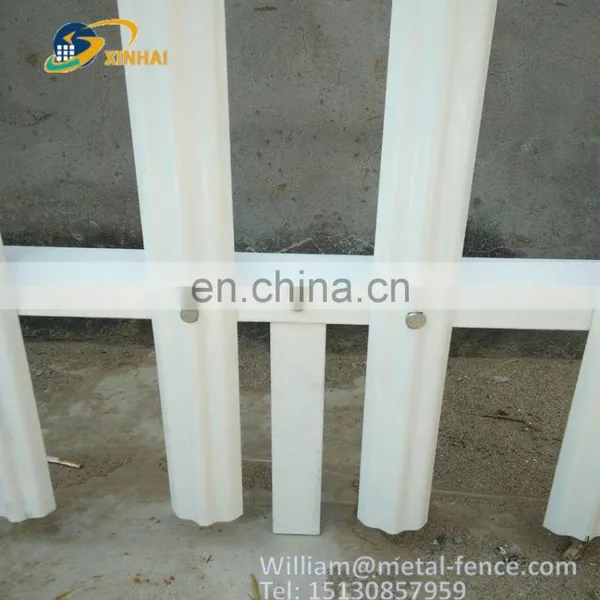

2). Pales-"W" section
Palisade Fencing Pale Sizes
2mm, 3mm, 3.5mm thick ‘D’ section
2mm, 2.5mm thick ‘W’ section are the standard.

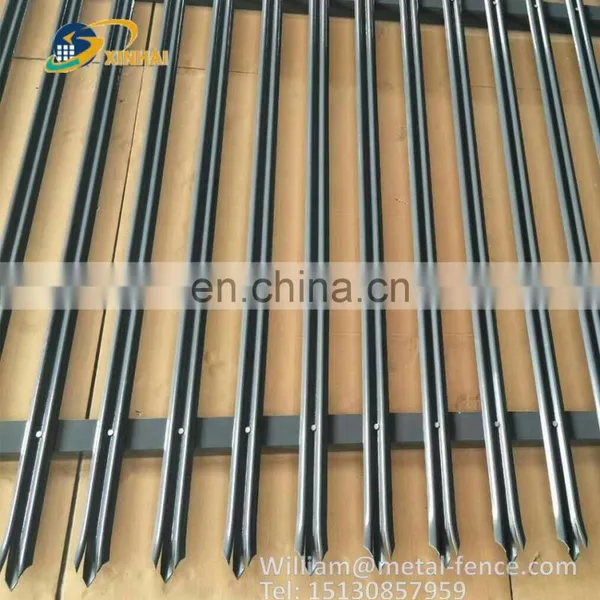

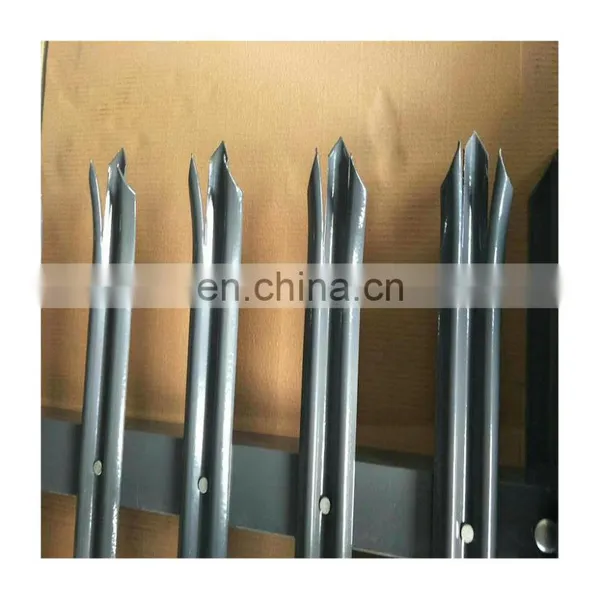

triple pointed or rounded and notched top.
17no per 2.75m bay.
Palisade Fencing Post
100mm x 55mm RSJ
102mm x 44mm RSJ
127mm x 76mm RSJ
Depending on height of the fence. Posts installed at 2.75m centers.

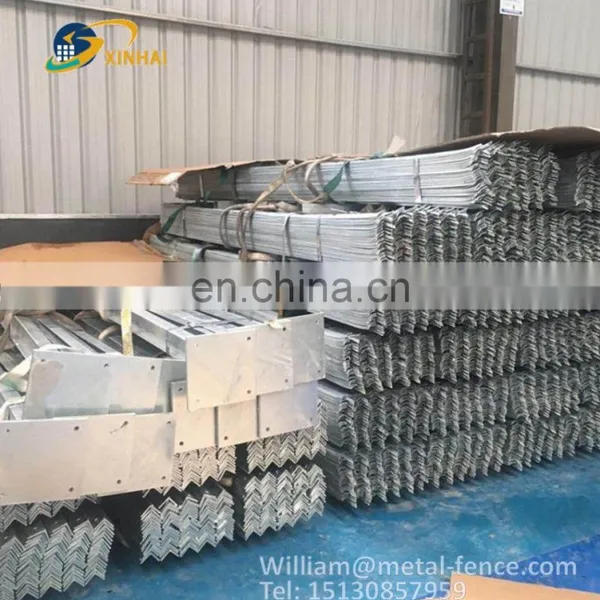

Palisade Fencing Rails
Generally Angle Iron 50mm x 50mm x 6mm RSA - 2no per bay. 3no per bay in more secure areas.

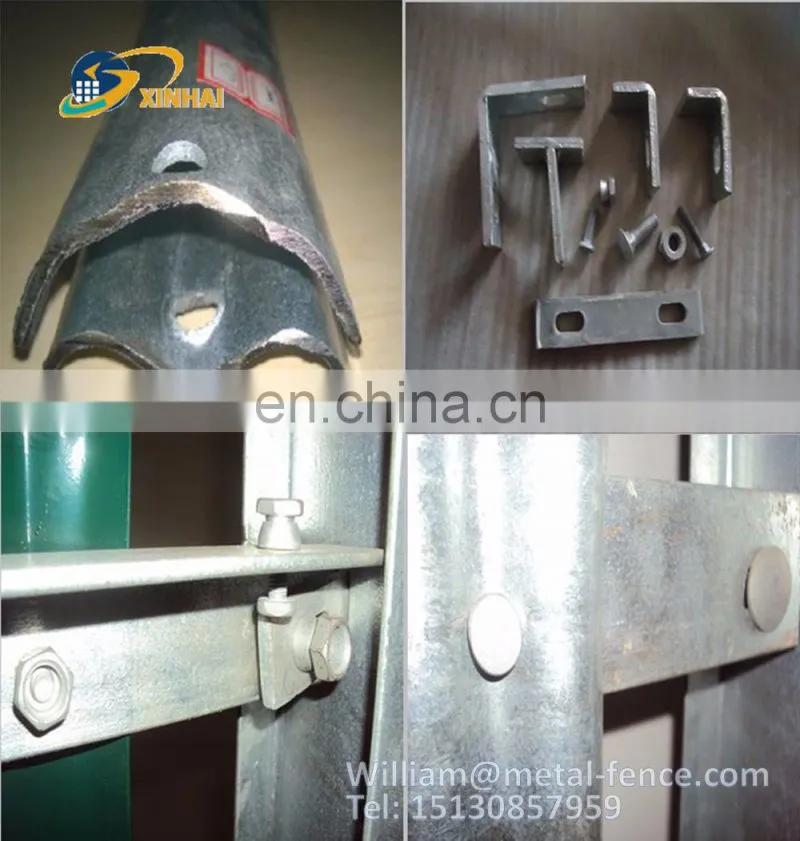

Palisade Fencing Fixings
M12 permacone nuts and bolts connect the rails to a fish plate that slides through slots in the posts
M12 Cup square bolts with Permacone type nuts (shear off)
Palisade Fencing Specification
|
Height |
Post Dimensions |
Rail Dimensions |
Support Legs |
Corrugated Steel Palisades |
|
1.2m |
102x44 or 100x55mm |
40x40x6mm |
1 |
W - 2.0mm or D - 3.0mm |
|
1.5m |
102x44 or 100x55mm |
40x40x6mm |
1 |
W - 2.0mm or D - 3.0mm |
|
1.8m |
102x44 or 100x55mm |
40x40x6mm |
1 |
W - 2.0mm or D - 3.0mm |
|
2.0m |
102x44 or 100x55mm |
45x45x6mm |
1 |
W - 2.0mm or D - 3.0mm |
|
2.1m |
102x44 or 100x55mm |
45x45x6mm |
1 |
W - 2.0mm or D - 3.0mm |
|
2.4m |
102x44 or 100x55mm |
45x45x6mm |
1 |
W - 2.0mm or D - 3.0mm |
|
2.7m |
102x44 or 100x55mm |
50x50x6mm |
1 |
W - 2.0mm or D - 3.0mm |
|
3.0m |
127x76mm |
50x50x6mm |
2 |
W - 2.5mm or D - 3.5mm |
|
3.6m |
127x76mm |
50x50x6mm |
2 |
W - 2.5mm or D - 3.5mm |
Palisade Fencing Height
900mm (3ft), 1.2m (4ft), 1.5m (5ft), 1.8m (6ft), 2m (6ft 6), 2.1m (7ft), 2.4m (8ft), 2.75m (9ft) 3m (10ft) and 3.6m (12ft)

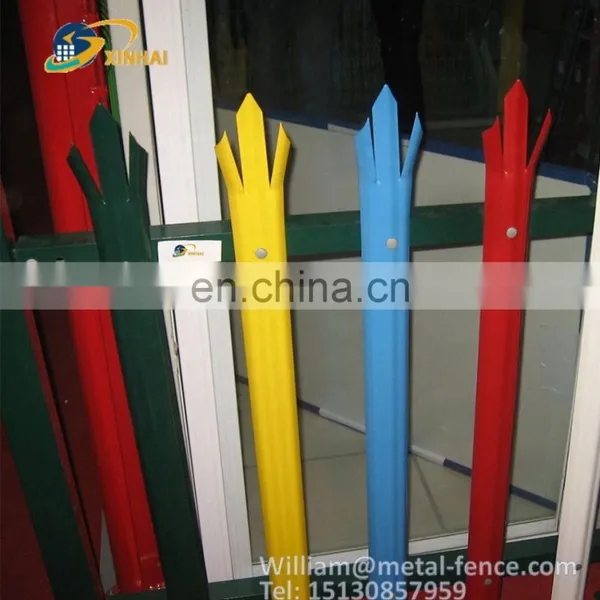

Palisade Fencing Finish Surface
Hot Dipped Galvanised to B.S EN ISO 1461 as standard.
There is also a option for the fence to be Polyester Powder Coated to a colour or you choice
Palisade Fencing Gate
Single Leaf, Double Leaf and Sliding Gates are all available made to measure.
