| Mesh | Wire Diameter | Surface treatment | Fence width | Fence Height |
|
50x150mm 55x150mm 75x150mm |
3.00mm 4.50mm 5.00mm 6.00mm |
polyester powder coated or Hot dipped galvanized |
2.4 m 3.0 m |
900mm |
| 1200mm | ||||
| 1500mm | ||||
| 1800mm |

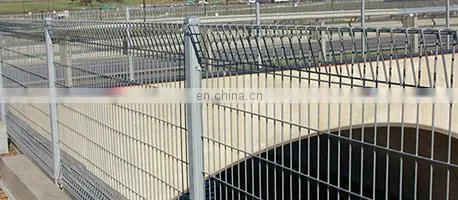

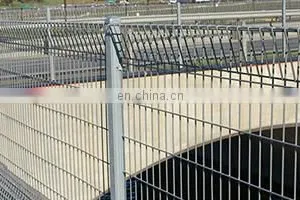

The roll top fencing panels are made of vertical and horizontal wire with a diameter of Ø 3 mm, Ø 4 mm or Ø 5 mm.
The mesh size has a dimension of 50 x 200 mm, width 3000 mm panels. Mounting system to the post by means
of clamps with flat 60x40mm or 60x60mm.

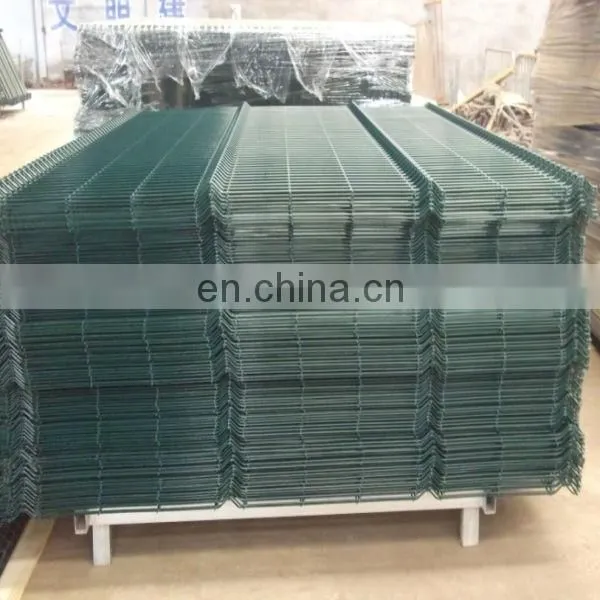

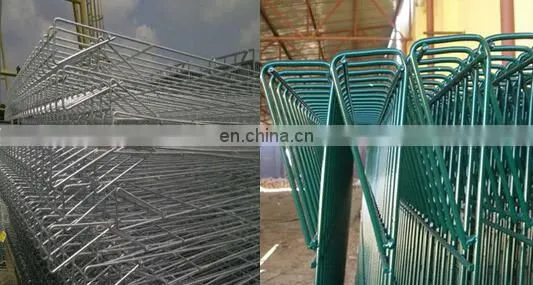

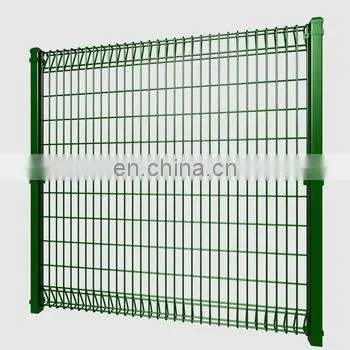

Panels
The roll top security fencing panels are 3000mm wide and heights range from 900 to 2000mm. The fence panels
have a unique and "user friendly" closed beam section located along the top and bottom edge of the panel. With
no sharp or raw edges, Roll top panels are suitable where safety is a consideration. Mesh sizes are 150 x 50mm
or 200x50mm.
And panels are manufactured from heavy 5mm wires, to achieve high levels of rigidity.The rolled beam profile at the
top and bottom edge of panel results in maximum rigidity. With 3.025m post centers for maximum economy of labor
and handling, with simple and rapid installation. It is supplied as a complete system with panels, posts and gates,
and is ideal for multi-lift erection for fence heights of 2.4m to 4.0m. Application: Parks, Schools, Playgrounds and
Sports stadiums, Airports. Utilities: Gas and Water, Electric and Communications.

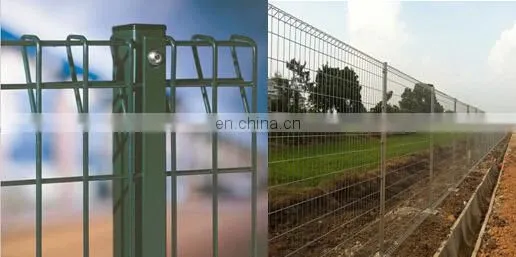

Posts
Post is manufactured from 60x60mm square hollow sections and fitted with M8 threaded inserts for securing panels,
with a wide range of heights available. Posts come inclusive of top caps.
Coating
The Roll top fencing panels are manufactured from pre-galvanized wires. An adhesion coating is applied to allow
perfect adhesion with the polyester coating (min. 100 micron).
colors
Standard colors are Green RAL6005 and Black RAL9005. Other colors are available on request.
1.> Free Samples offered,
2.> Timely reply,
3.> 100% Product quality protection,
4.> 100% On-time shipment protection,
5.> 100% Payment protection
Company information:
Anping Xinhai Traffic Wire Mesh Manufacture Wire Mesh Co.,ltd
Established: 2005 Year
Area: cover 25800 square meter
Staff: 265
Main export market:
Poland, Russia, Canada, French, England, Hungary, Australia, New Zealand, Ukraine, USA,
Mexico, South Africa, India and South American, etc.
Main Products:
Wire mesh fence, temporary fence, crowd control barrier, garden fence, 358 fence, fence post, palisade fence.
