Home > Products > Welding wire > 2 Mm~5 mm Sino Erli SS E309Nb Titanium Calcium Type Coating Welding Electrode E309Nb-16/ISO 3581-B-ES 309Nb-16

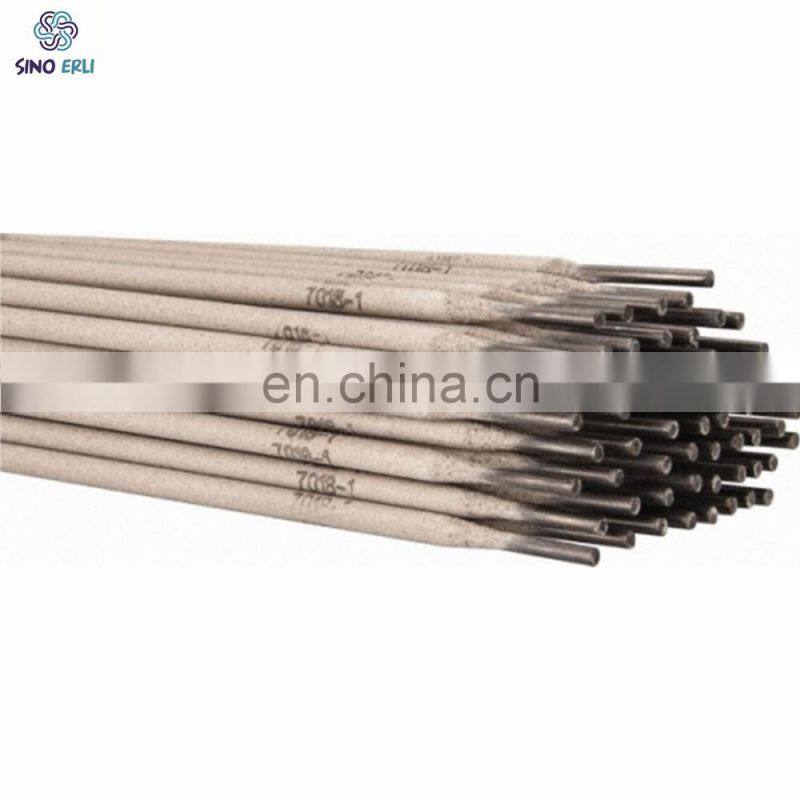

2 Mm~5 mm Sino Erli SS E309Nb Titanium Calcium Type Coating Welding Electrode E309Nb-16/ISO 3581-B-ES 309Nb-16
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
2 Mm~5 mm Sino Erli Duplex SS A1002 Titanium Calcium Coating Welding Electrode E312-16
-
2 Mm~5 mm Sino Erli SS E309L Titanium Calcium Type Coating Welding Electrode E309L-16/ISO 3581-B-ES 309L-16
-
2 Mm~5 mm Sino Erli Stainless Steel E304 Titanium Calcium Type Coating Welding Electrode
-
2 Mm~5 mm Sino Erli SS A902 Titanium Calcium Type Coating Welding Electrode E320-16/ISO 3581-B-ES 320-16
-
2 Mm~5 mm Sino Erli Stainless Steel A607 Alkaline Coating Welding Electrode GB/T 983 E330MoMnWNb-15
-
0.8 Mm~3.2 mm Sino Erli TG308 Tig Pure Argon Arc Stainless Steel 308 Welding Wire S308/ ER308
Product Description
Product Description
E309Nb is a stainless steel electrode with a titanium-calcium type coating. Because the deposited metal contains Nb, the deposited metal has better resistance to intergranular corrosion and improves the high-temperature strength of the deposited metal.
Used for welding of 06Cr23Ni13Nb type clad steel plate or surfacing welding on carbon steel.
| Item | C | Mn | Si | Cr | Ni | Mo | P | S | Cu | Nb |
| Guarantee value | ≤0.12 | 0.50~2.50 | ≤1.00 | 22.0~25.0 | 12.0~14.0 | ≤0.75 | ≤0.040 | ≤0.030 | ≤0.75 | 0.70~ 1.00 |
| Typical value | 0.070 | 1.50 | 0.67 | 23.80 | 12.65 | 0.065 | 0.021 | 0.008 | 0.10 | 0.90 |
| Rm (MPa) | A(%) |
| ≥550 | ≥25 |
| 630 | 38 |
Attention:
1. The electrode must be baked at 300°C for 1 hour before welding, and used as it is baked.
2. Try to use small current and short arc welding when welding.
3. The weldments must be cleaned of rust, oil stains, moisture and other impurities before welding.
4. Try to use small current and short arc when welding, and the swing width should not exceed 2.5 times the diameter.
