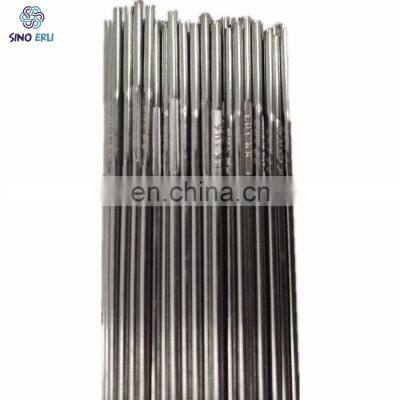

2 Mm~5 mm Sino Erli Duplex SS S2594 Titanium Calcium Type Coating Stainless Steel Welding Electrode E2594-16
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
2 Mm~5 mm Sino Erli Duplex SS S2209 Titanium Calcium Type Coating Welding Electrode E2209-16/ISO 3581-B-ES 2209-16
-
2 Mm~5 mm Sino Erli SS A062NP Rutile Coating Welding Electrode E309L-16/ISO 3581-B-ES 309L-16
-
2 Mm~5 mm Sino Erli Duplex SS S2215 Basic Coating Welding Electrode E2209-15
-
2 Mm~5 mm Sino Erli SS E309Nb Titanium Calcium Type Coating Welding Electrode E309Nb-16/ISO 3581-B-ES 309Nb-16
-
2 Mm~5 mm Sino Erli Duplex SS A1002 Titanium Calcium Coating Welding Electrode E312-16
-
2 Mm~5 mm Sino Erli SS E309L Titanium Calcium Type Coating Welding Electrode E309L-16/ISO 3581-B-ES 309L-16
Product Description
Product Description
S2594 is an ultra-low carbon nitrogen-containing duplex stainless steel electrode with titanium calcium coating. The deposited metal has good thermal crack resistance. Due to the extremely low carbon content and the inclusion of molybdenum and nitrogen at the same time, the deposited metal has good resistance to pitting corrosion and stress corrosion cracking. The electrode has good welding performance, stable arc, small spatter, beautiful shape, redness resistance of the coating, and can be used for both AC and DC.
Mainly used for welding the same type of duplex stainless steel in offshore oil, natural gas, petrochemical industries, such as 022Cr25Ni7Mo4N, 03Cr25Ni6Mo3Cu2N, etc.
| Item | C | Mn | Si | Cr | Ni | Mo | P | S | Cu | N |
| Guarantee value | ≤0.040 | 0.50~2.50 | ≤1.00 | 24.0~27.0 | 8.0~10.5 | 3.5~4.5 | ≤0.040 | ≤0.030 | ≤0.75 | 0.20~0.30 |
| Typical value | 0.025 | 0.97 | 0.73 | 25.10 | 9.20 | 3.87 | 0.014 | 0.007 | 0.010 | 0.25 |
| Rm (MPa) | A(%) |
| ≥760 | ≥13 |
| 880 | 25 |
Attention:
1. The electrode must be baked at about 300℃ for 1h before welding.
2. Use a DC power supply as much as possible, and the current should not be too large.
