Fast Pre-Programmed Pick And Place Robots for Network Devices
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Flexible Intelligent Pick And Place Robots for Air Conditioner
-
Fast Accurate SMT Mini Pick And Place Machine
-
Flexible Pre-Programmed Smt Pick And Place Machine for Automotive Electronics
-
Accurate Flexible Smt Pick And Place Machine for Control Panel Exchanger
-
CNC Machine Tending Robot for Turning Aluminium Parts
-
Cost Effective CNC Machine Tending Robot for CNC Aluminum Parts
Product Description
Fast Pre-Programmed Pick And Place Robots for Network Devices
We are Suzhou Jinshuorui Intelligent Technology Co., Ltd., an industrial automation solutions provider and industrial robot supplier in China.
Now we developed our PCB assembly work station with our own independent intelligent property, it is universal, highly effective, accurate, stable, and smart. Our PCB assembly intelligent work stations are widely applied in 3C electronic products, communication electronics, digital, consumer electronics, computers, automotive electronics, industrial control, medical equipment, defense and aerospace and other fields, consumer electronics, home appliances, etc.
Also we're the exclusive partner for QJAR robot on global market and we're the only team that can sell QJAR robot overseas. We can supply a wide product range including industrial robots ranging from 3kg to 800kg payload (6-axis robot, 4-axis robot, delta robot, scara robot,explosion-proof robot and other special application robots), welding positioners, robot walking rail, vision system, etc. Our robots are widely applied in welding, handling, palletizing, polishing, painting, cutting, etc. The advantages are: super cost-effective, well-knit compact structure, high flexibility, high reliability, high speed, high precision, high expansibility, easy operation, easy maintenance.
Now we developed our PCB assembly work station with our own independent intelligent property, it is universal, highly effective, accurate, stable, and smart. Our PCB assembly intelligent work stations are widely applied in 3C electronic products, communication electronics, digital, consumer electronics, computers, automotive electronics, industrial control, medical equipment, defense and aerospace and other fields, consumer electronics, home appliances, etc.
Also we're the exclusive partner for QJAR robot on global market and we're the only team that can sell QJAR robot overseas. We can supply a wide product range including industrial robots ranging from 3kg to 800kg payload (6-axis robot, 4-axis robot, delta robot, scara robot,explosion-proof robot and other special application robots), welding positioners, robot walking rail, vision system, etc. Our robots are widely applied in welding, handling, palletizing, polishing, painting, cutting, etc. The advantages are: super cost-effective, well-knit compact structure, high flexibility, high reliability, high speed, high precision, high expansibility, easy operation, easy maintenance.
Products Description
EVS has developed a new generation of intelligent PCB assembly machine based on the independent research and development of integrated control system in PCB industry. The appearance is generous and simple, and it has the characteristics of high integration, high precision and high flexibility, so as to meet the automation application requirements of industry customers.
The features are:

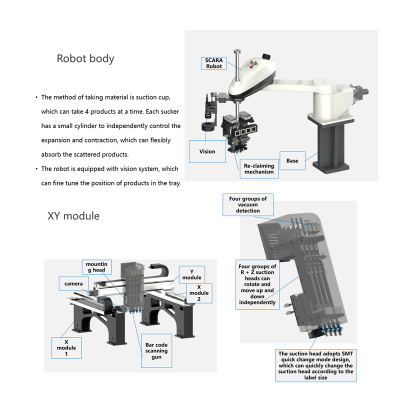

* High pixel camera, from coarse positioning to fine positioning, secondary correction to ensure the accuracy of the material placing plate.

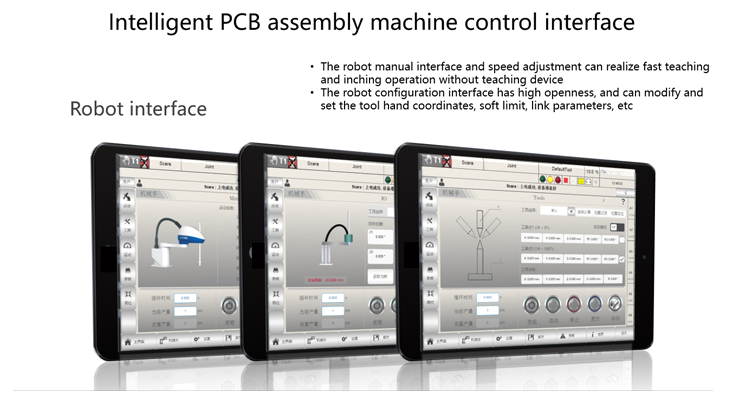

* Integrated touch control robot + vision + logic, simple and stable.

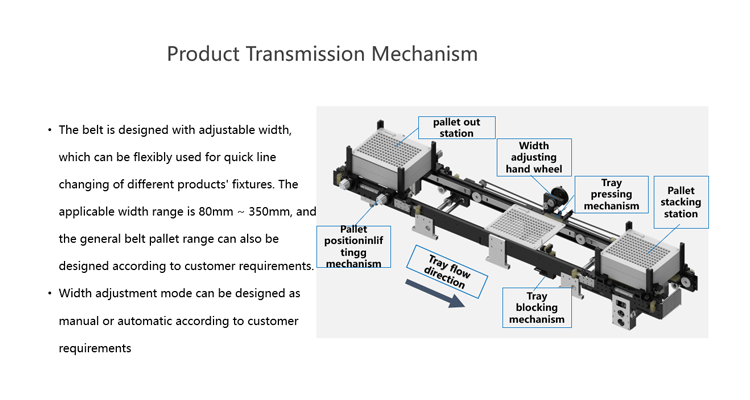

* The width of conveyor belt is adjustable, flexible vibration disc, flexible production.
* SCARA robot and XY module can be customized on demand.
* Code scanning function can be connected to MES system.
* Integrated touch control robot + vision + logic, simple and stable.
* The width of conveyor belt is adjustable, flexible vibration disc, flexible production.
* SCARA robot and XY module can be customized on demand.
* Code scanning function can be connected to MES system.

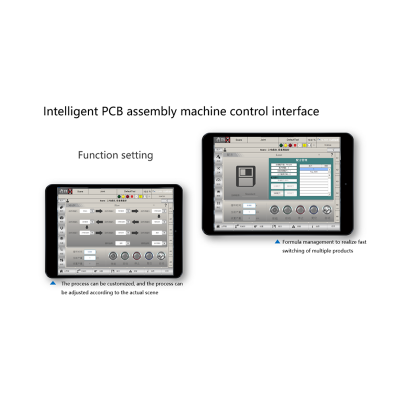

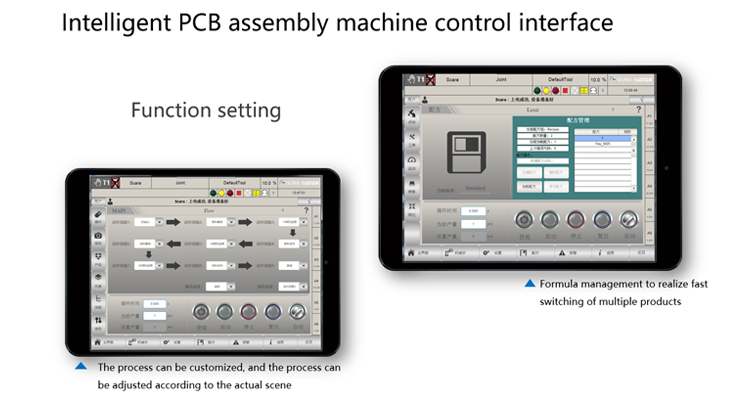

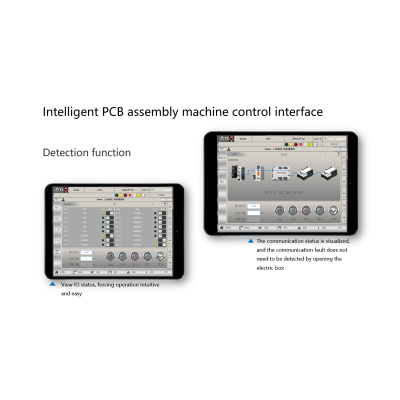

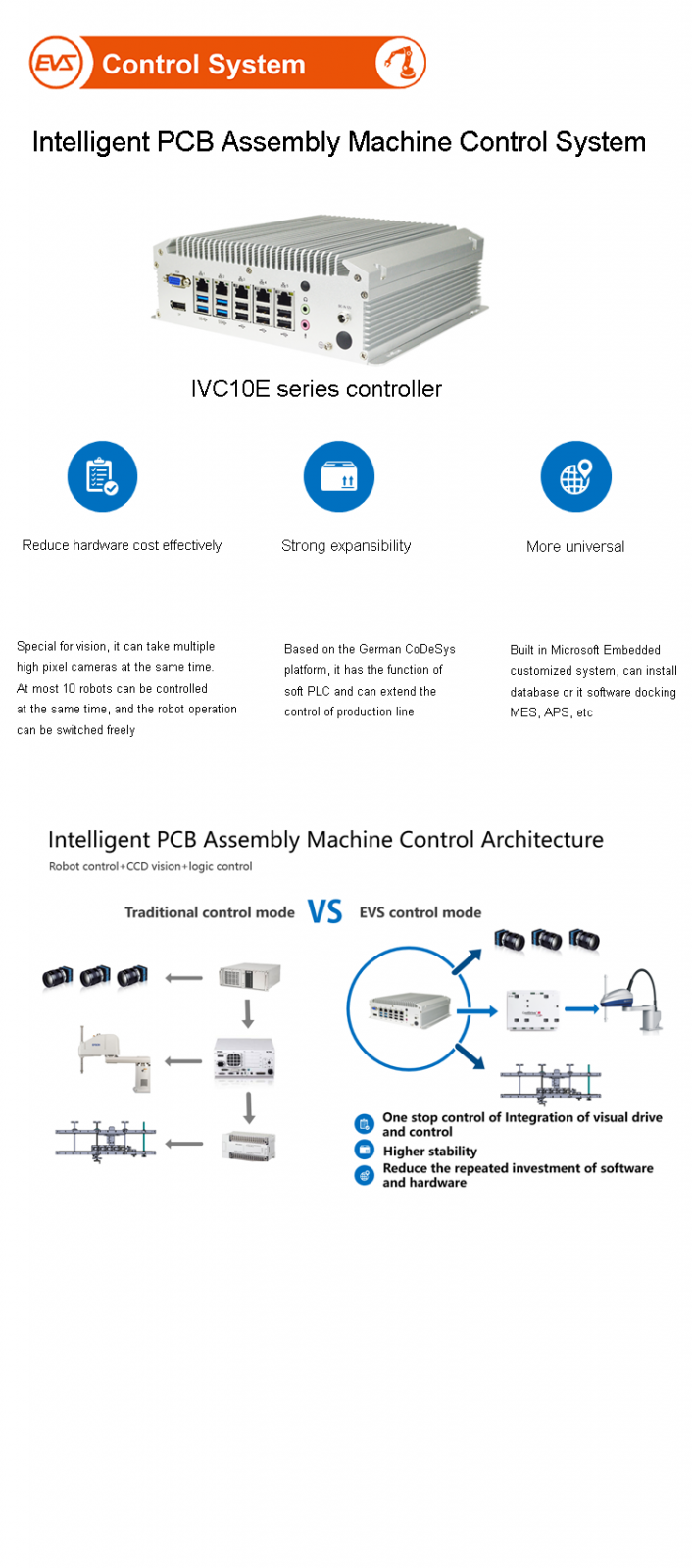

Control System

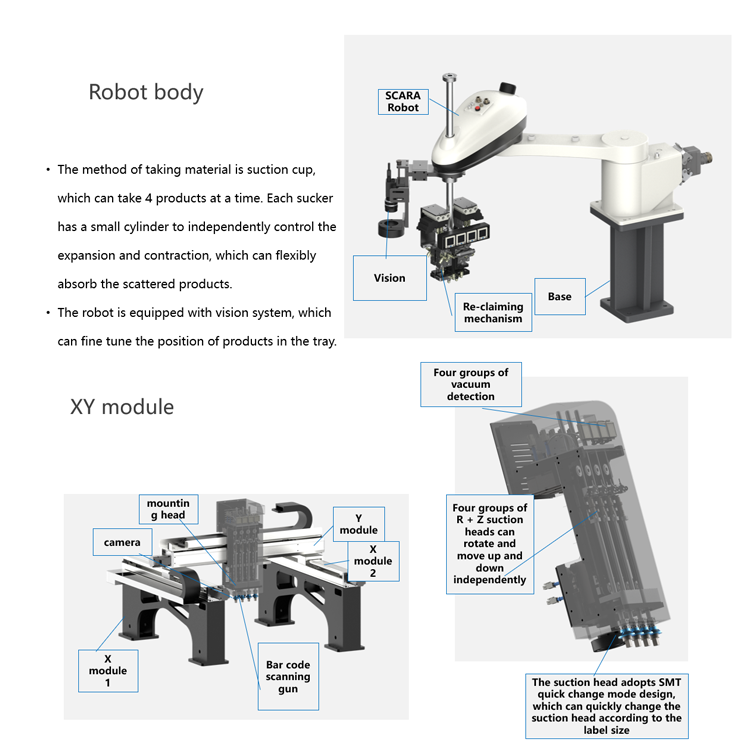

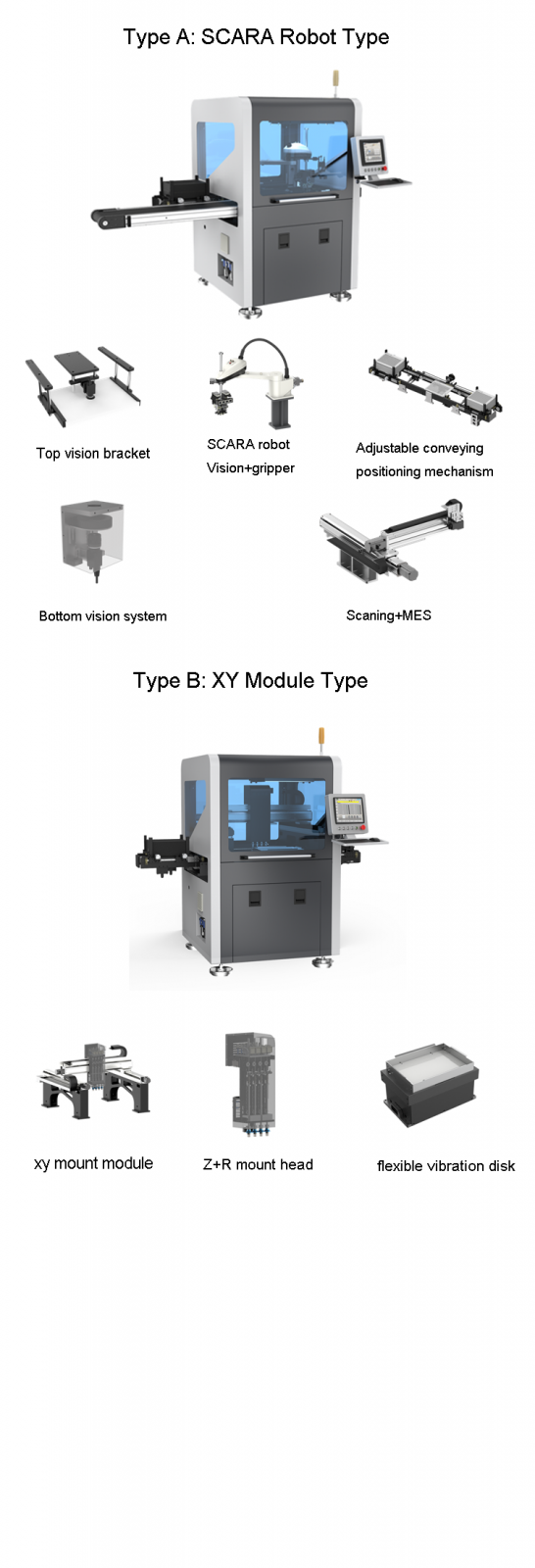

Components

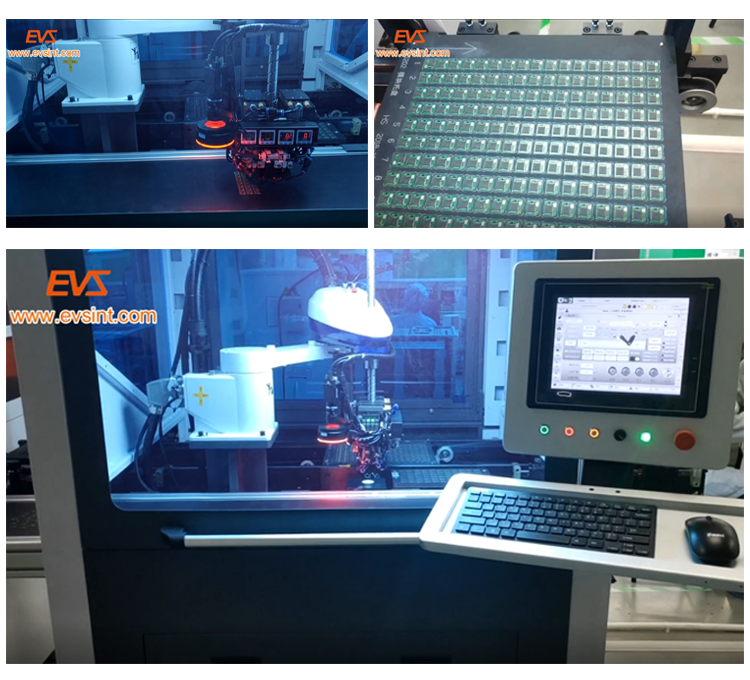

Application Industry and Case Study
EVS self-developed new generation intelligent PCB assembly machine(PCB components pick and place machine) can be applied in many aspects of the PCB assembly process, such as 3C product, cell phone board, television, STB, sound equipment, camera, electronic toy, automotive electronics, PC laptop, computer, network devices, control panel, exchanger, printer, router, LED, air conditioner, home appliances, etc.
Specification
Intelligent PCB Assembly Machine Equipment Specification
Item | SCARA Type | XY Module Type | |||||
External Size | 2626 x 1158 x 1800(mm) | 2000 x 1150 x 1800(mm) | |||||
Power Source | 220V AC，50HZ，5.0Kw | ||||||
Air Source | ≥5kg/cm2 ，120L/min | ||||||
Productivity | 1200pcs/h | 2000pcs/h | |||||
Accuracy | ±0.05mm | ±0.03mm | |||||
Detection Precision | ±0.1mm | ||||||
The Biggest Products | 50mm X 50mm | ||||||
